Pedal Positioning Motor
Pedal Positioning Motor

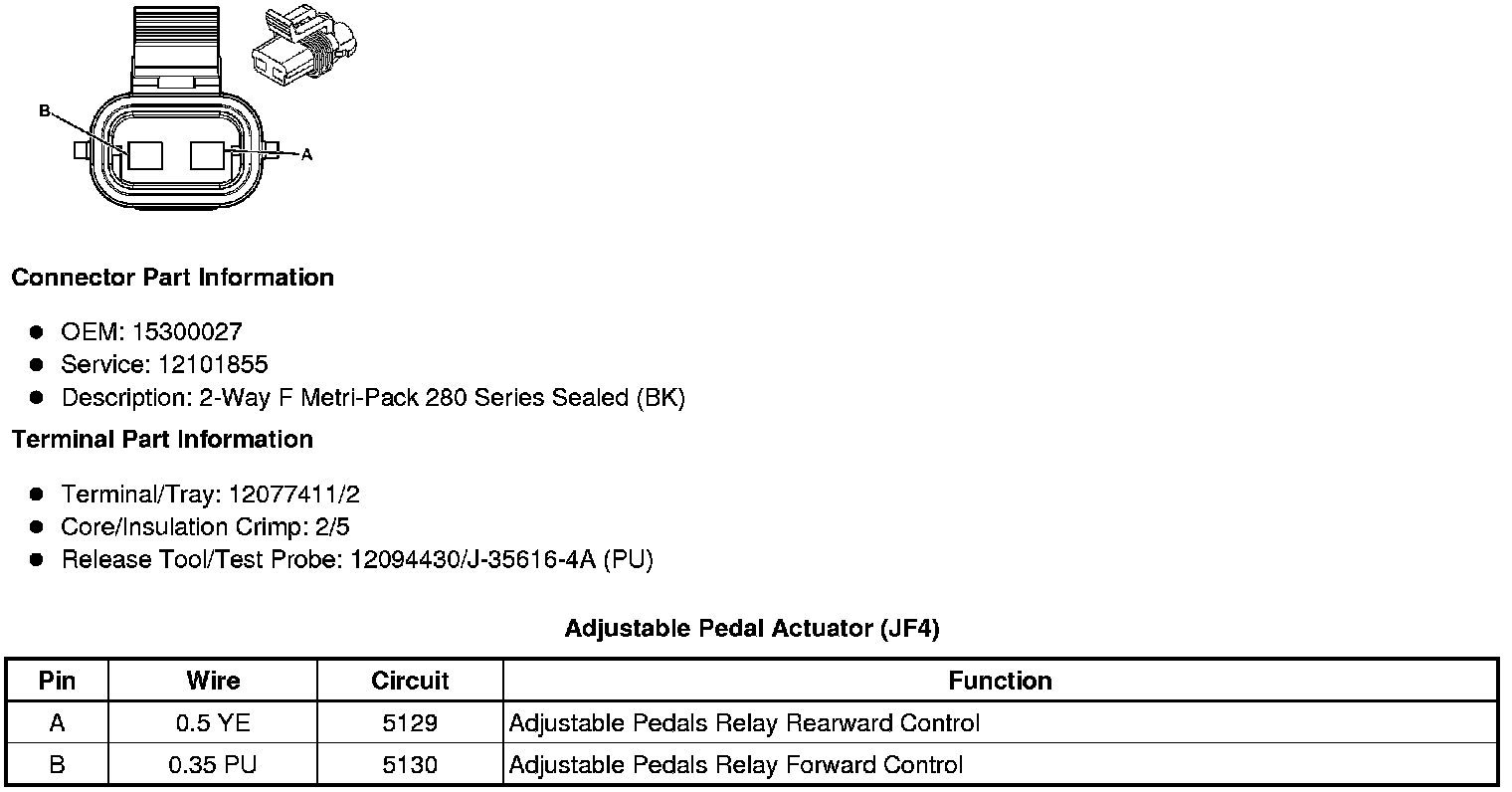

Component Connector End Views
Adjustable Pedal Actuator (JF4)
