Exploded Views
Exploded Views

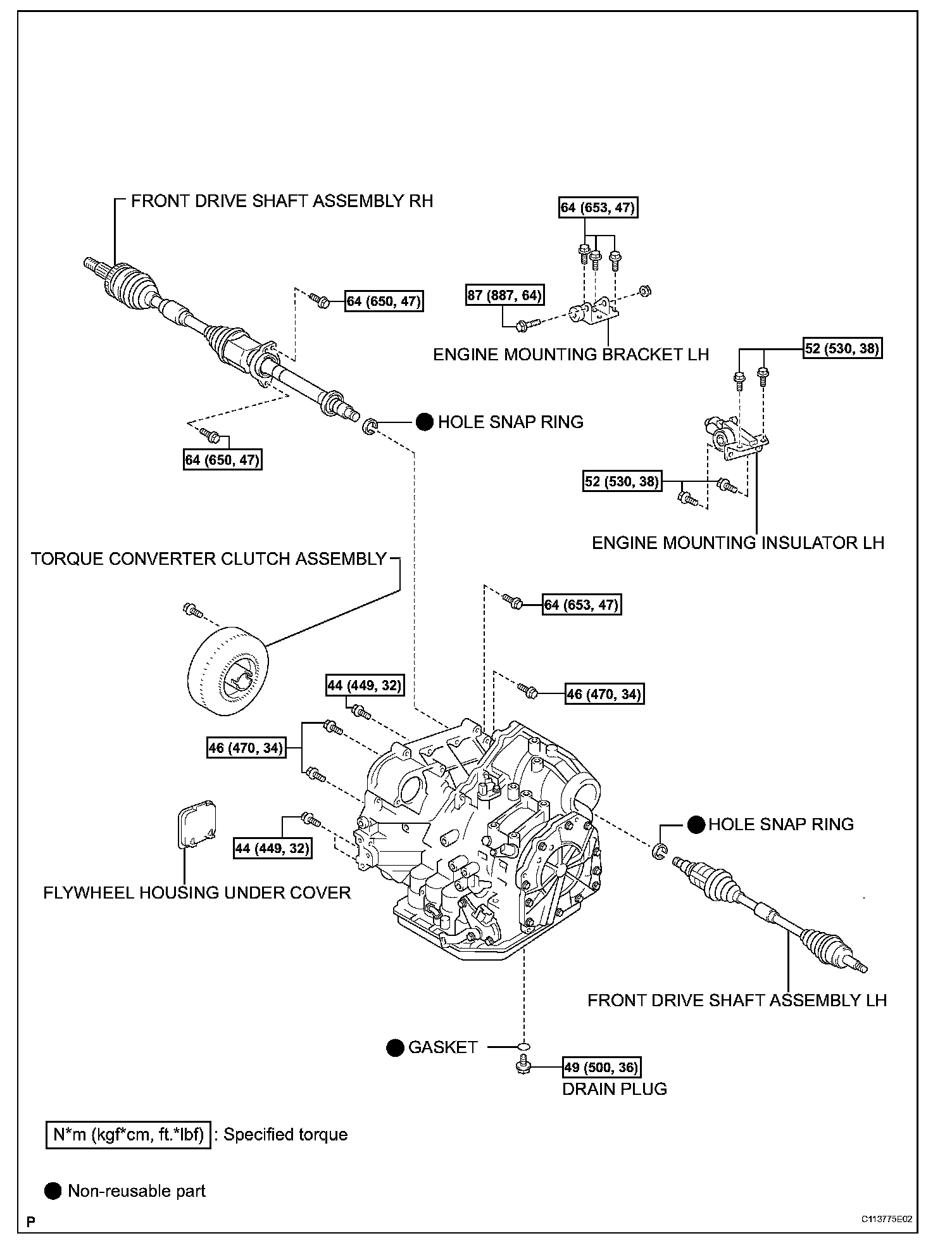

AUTOMATIC TRANSAXLE ASSEMBLY
COMPONENTS:
COMPONENTS:
COMPONENTS:
COMPONENTS:
