B1406

THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILISER SYSTEM: B1406; SCU EEPROM NG; 2013 MY FR-S [03/2012 -]
B1406 - SCU EEPROM NG

DESCRIPTION

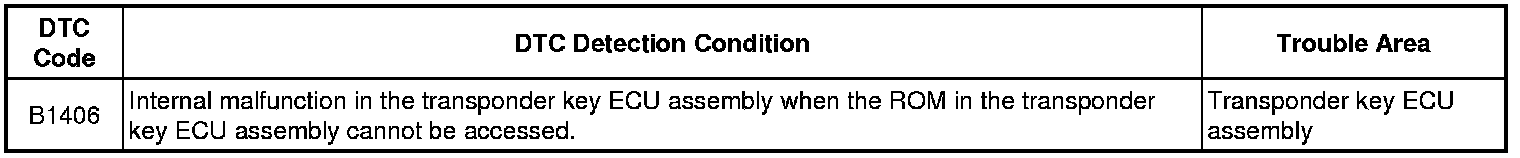

The main body ECU (network gateway ECU) stores this code when an internal malfunction is detected in the transponder key ECU assembly or when the ROM in the transponder key ECU assembly cannot be accessed.





INSPECTION PROCEDURE

NOTICE:
If the transponder key ECU assembly is replaced, refer to Registration Programming and Relearning.

PROCEDURE

1. REGISTER RECOGNITION CODES (ECU CODE REGISTRATION)

(a) Register the recognition codes (ECU code registration) Programming and Relearning.

NEXT -- Continue to next step.

2. CHECK FOR DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B1406 is not output.

NG -- REPLACE TRANSPONDER KEY ECU ASSEMBLY Removal

OK -- END
