C1294

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1294; ECT System Malfunction; 2013 MY FR-S [03/2012 -]
C1294 - ECT System Malfunction

DESCRIPTION

If a malfunction in the automatic transmission system is detected, the operation of VSC and TR(A)C is prohibited by the fail-safe function. When the signals from the automatic transmission are received normally, fail-safe control is canceled.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK AUTOMATIC TRANSMISSION SYSTEM

(a) Check if the automatic transmission system DTC is output Reading and Clearing Diagnostic Trouble Codes.

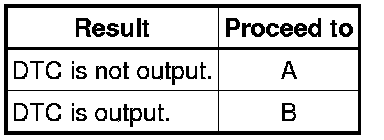

Result:





HINT
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing parts Problem Symptoms Table.

B -- INSPECT AUTOMATIC TRANSMISSION SYSTEM How to Proceed With Troubleshooting

A -- REPLACE TCM Removal
