C2126

TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING SYSTEM: C2126; Transmitter ID not Received in Main Mode; 2013 MY FR-S [03/2012 -]
C2126 - Transmitter ID not Received in Main Mode

DESCRIPTION

After all IDs are registered, DTC C2126 is set in the door control receiver and the tire pressure warning light blinks for 1 minute and then illuminates.

When the door control receiver successfully receives radio waves from all the transmitters whose IDs are stored in the ECU, DTC C2126 is cleared and the tire pressure warning light goes off.





HINT
The purpose of this DTC is to help prevent delivering a vehicle that has incorrectly registered IDs. After all IDs are registered, DTC C2126 is detected and the tire pressure warning light blinks for 1 minute and then illuminates. If the tire pressure warning light does not turn off after a little while, IDs may be incorrectly registered.

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* When replacing the door control receiver, read the IDs stored in the old ECU using the Techstream and write them down before removal.
* It is necessary to perform registration Programming and Relearning of the transmitter IDs into the tire pressure warning ECU after the ECU has been replaced.
* When replacing the door control receiver on vehicles, be sure to perform Registration of Recognition Code to register the transmitter IDs after ECU replacement Registration.

PROCEDURE

1. IDENTIFY TRANSMITTER NOT RECEIVED

(a) Set the tire pressure to the specified values Component Tests and General Diagnostics.

(b) Turn the ignition switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON.

(e) Turn the Techstream on.

(f) Enter the following menus: Chassis / Tire Pressure Monitor / Data List.

(g) Check the values by referring to the table below.

Tire Pressure Monitor





HINT
*: It may take a few minutes until the values are displayed.

(h) Rapidly reduce the tire pressure for each wheel at least 40 kPa (0.4 kgf/cm2, 5.8 psi) within 30 seconds.

(i) Check the Data List.

NOTICE:
* It may take a few minutes to display the updated tire pressure data.
* When the "ID Tire Inflation Pressure" data has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270 degrees. Then rapidly release the tire pressure and recheck the data.
* Record the "ID Tire Inflation Pressure" data transmitter ID that corresponds to each tire.

(j) After confirming that the "ID Tire Inflation Pressure" data for one tire (ID1 to ID4) has changed, repeat this procedure one by one. Identify the transmitter not received.

Result:





B -- END
A -- Continue to next step.

2. CHECK TRANSMITTER ID

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Turn the Techstream on.

(e) Enter the following menus: Chassis / Tire Pressure Monitor / Data List.

(f) Check the values by referring to the table below.

Tire Pressure Monitor





HINT
*: Displayed only when the ID No. is not registered.

(g) Check the ID number on the identified transmitter by removing it from the tire and wheel.









(h) Confirm that the ID number on the transmitter and recorded transmitter ID match.

Result:





B -- REGISTRATION OF TRANSMITTER ID
A -- Continue to next step.

3. REPLACE TIRE PRESSURE WARNING VALVE AND TRANSMITTER

(a) Replace the tire pressure warning valve and transmitter Removal.

NEXT -- Continue to next step.

4. REGISTRATION OF TRANSMITTER ID

(a) Perform registration Programming and Relearning.

NEXT -- Continue to next step.

5. CONFIRM TIRE INFLATION PRESSURE (DATA LIST)

(a) Turn the ignition switch off.

(b) Connect Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Turn the Techstream on.

(e) Enter the following menus: Chassis / Tire Pressure Monitor / Data List.

(f) Check the values by referring to the table below.

Tire Pressure Monitor





HINT
* *: It may take a few minutes until the values are displayed.
* When no "ID Tire Inflation Pressure" data has changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270 degrees. Then rapidly release the tire pressure and recheck the data.

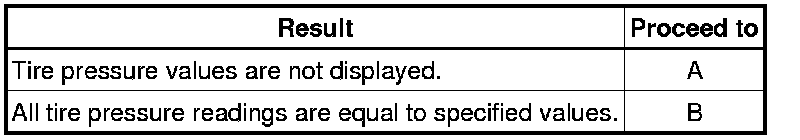

Result:





B -- END

A -- REPLACE DOOR CONTROL RECEIVER Removal
