P0068
FA20 ENGINE CONTROL: SFI SYSTEM: P0068; MAP / MAF - Throttle Position Correlation; 2013 MY FR-S [03/2012 -]
P0068 - MAP / MAF - Throttle Position Correlation
DESCRIPTION
Refer to DTC P0107 P0107.
MONITOR DESCRIPTION
The manifold absolute pressure sensor is affixed to the intake manifold.
If the manifold absolute pressure is low in spite of driving conditions that would suggest this would be high, or if this is high in spite of driving conditions that would suggest this would be low, then this DTC is detected.

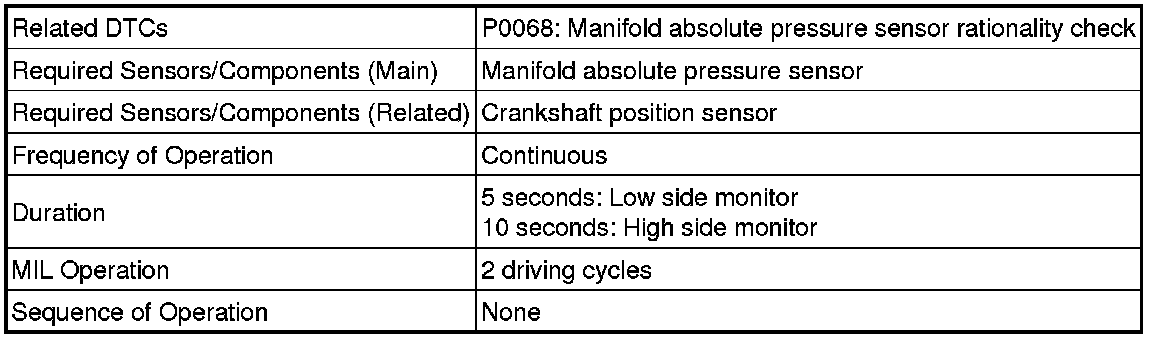

MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS

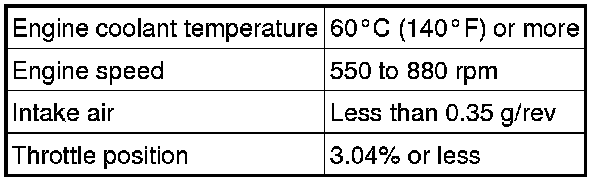

All
Low Side Monitor
High Side Monitor

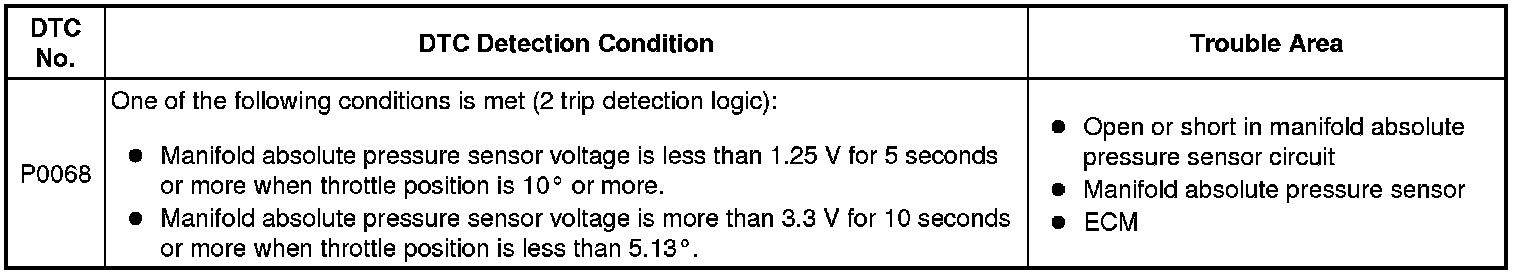

TYPICAL MALFUNCTION THRESHOLDS
Low Side Monitor
High Side Monitor
CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON and turn the Techstream on.
3. Clear DTCs (even if no DTCs are stored, perform the clear DTC operation) Reading and Clearing Diagnostic Trouble Codes.
4. Turn the ignition switch off and wait for at least 30 seconds.
5. Turn the ignition switch to ON and turn the Techstream on.
6. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.
7. Perform the following the confirmation driving pattern.
CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
a. Idle the engine for 10 seconds or more [A].
b. Accelerate the vehicle to 97 km/h (60 mph) or more within 20 seconds [B].
c. Drive the vehicle at 97 km/h (60 mph) or more for 20 seconds or more [C].
d. Release the accelerator pedal to Decelerate until the vehicle speed decreases to less than 64 km/h (40 mph) [D].
HINT
Release the accelerator pedal fully to perform the fuel-cut.
e. Drive the vehicle at 60 km/h (40 mph) or less for 20 seconds or more [E].
f. Accelerate the vehicle to 97 km/h (60 mph) or more within 10 seconds [F].
g. Release the accelerator pedal and stop the vehicle [G].
8. Enter the following menus: Powertrain / Engine / Trouble Codes.
9. Read pending DTCs.
HINT
* If a pending DTC is output, the system is malfunctioning.
* If a pending DTC is not output, perform the following procedure.
10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
11. Input the DTC: P0068.

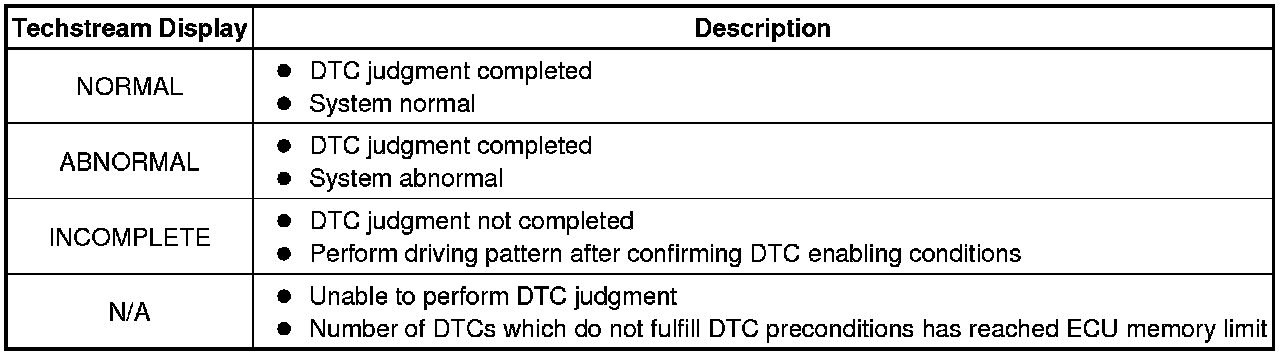

12. Check the DTC judgment result.
HINT
* If the judgment result shows NORMAL, the system is normal.
* If the judgment result shows ABNORMAL, the system has a malfunction.
13. If the test result is INCOMPLETE or N/A and no DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT
* If a permanent DTC is output, the system is malfunctioning.
* If no permanent DTC is output, the system is normal.
WIRING DIAGRAM
Refer to P0107 P0107.
INSPECTION PROCEDURE
NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.
HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0068)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine / Trouble Codes.
(e) Read DTCs.
Result
B -- GO TO DTC CHART SFI System
A -- Continue to next step.
2. CHECK INTAKE SYSTEM
(a) Check the intake system for vacuum leaks Intake System.
OK:
PCV valve and hose are connected correctly and are not damaged.
NG -- REPAIR OR REPLACE INTAKE SYSTEM
OK -- Continue to next step.
3. CHECK PCV HOSE CONNECTIONS
(a) Check the PCV hose connections Testing and Inspection.
OK:
No leaks from intake system.
NG -- REPAIR OR REPLACE PCV HOSE
OK -- Continue to next step.
4. REPLACE MANIFOLD ABSOLUTE PRESSURE SENSOR
(a) Replace the manifold absolute pressure sensor Removal.
NEXT -- Continue to next step.
5. CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(e) Turn the ignition switch off and wait for at least 30 seconds.
(f) Turn the ignition switch to ON.
(g) Turn the Techstream on.
(h) Start the engine and warm it up.
(i) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
(j) Enter the following menus: Powertrain / Engine / Utility / All Readiness.
(k) Input the DTC: P0068.
(l) Check the DTC judgment.
Result:
NEXT -- END
