P0088

FA20 ENGINE CONTROL: SFI SYSTEM: P0088; Fuel Rail / System Pressure - Too High; 2013 MY FR-S [03/2012 -]
P0088 - Fuel Rail / System Pressure - Too High

DESCRIPTION

Refer to DTC P0087 P0087.





MONITOR DESCRIPTION

If the fuel pressure does not decrease even after the ECM commands the high-pressure fuel pump to open the spill control valve, a DTC is output.

If there is minimal difference between the fuel pressure before and after the fuel relief valve operates, a DTC is output.

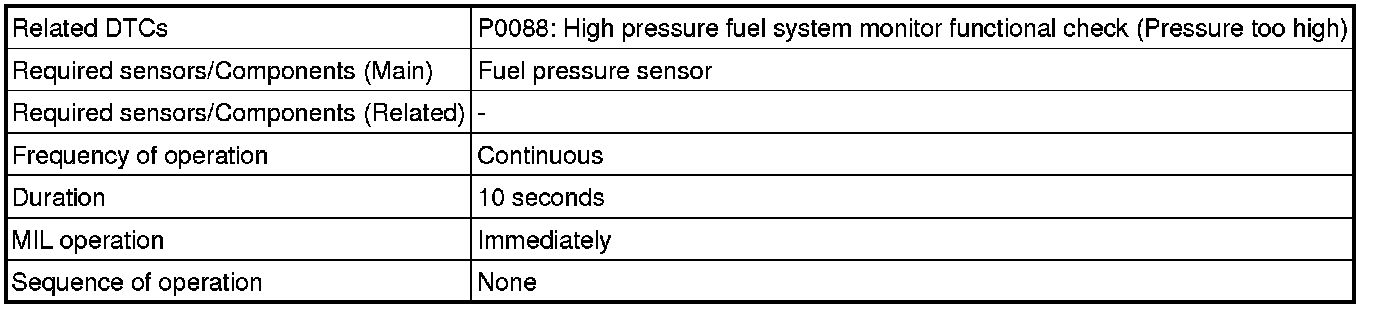

MONITOR STRATEGY

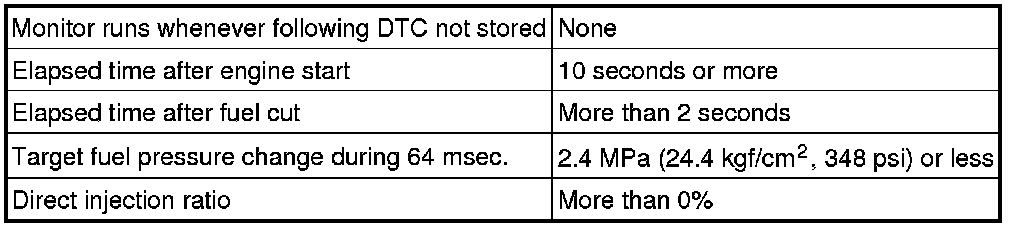

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Record the Freeze Frame Data.

4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

5. Turn the ignition switch off and wait for at least 30 seconds.

6. Turn the ignition switch to ON and turn the Techstream on.

7. Based on engine speed, engine load and other freeze frame data stored in the ECM, reproduce the conditions present when the DTC was stored.

8. Enter the following menus: Powertrain / Engine / Trouble Codes.

9. Read the DTC.

HINT
* If a DTC is output, the system is malfunctioning.
* If a DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

11. Input the DTC: P0088.

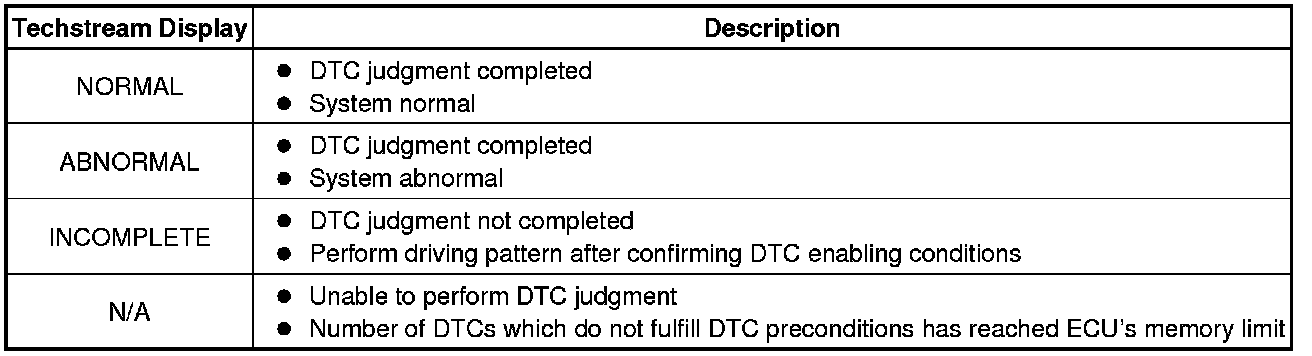

12. Check the DTC judgment result.





HINT
* If the judgment result shows ABNORMAL, the system has a malfunction.
* If the judgment result shows NORMAL, the system is normal.

13. If the test result is INCOMPLETE or N/A and no DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
* If a permanent DTC is output, the system is malfunctioning.
* If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was moving or stationary, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

PROCEDURE

1. CHECK OTHER DTCS OUTPUT (IN ADDITION TO DTC P0088)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON and turn the Techstream on.

(c) Enter the following menus: Powertrain / Engine / Trouble Codes.

(d) Read the DTCs.

Result:





HINT
If any DTCs other than P0088 are output, troubleshoot those DTCs first.

B -- GO TO DTC CHART SFI System
A -- Continue to next step.

2. PERFORM ACTIVE TEST USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Start the engine and turn the Techstream on.

(c) Enter the following menus: Powertrain / Engine / Active Test / Control the Target Fuel Pressure / Fuel Press.

(d) Check that the fuel pressure fluctuates when the target fuel pressure changes.

HINT
The Active Test operation lowers the target fuel pressure by 12.5% or increase the target fuel pressure by 24.8%.

OK:

Fuel pressure fluctuates.

NG -- REPLACE FUEL PRESSURE SENSOR Removal
OK -- Continue to next step.

3. REPLACE FUEL PUMP ASSEMBLY (FOR HIGH PRESSURE)

(a) Replace the fuel pump assembly (for high pressure) Removal.

NEXT -- Continue to next step.

4. CHECK IF DTC OUTPUT RECURS (SEE IF DTC P0088 IS OUTPUT AGAIN)

(a) Connect the Techstream to the DLC3.

(b) Turn the Techstream on.

(c) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(d) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(e) Enter the following menus: Powertrain / Engine / Trouble Codes.

(f) Read the DTCs.

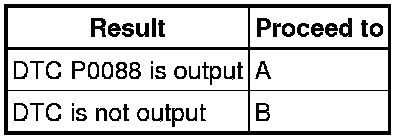

Result:





B -- END

A -- REPLACE ECM Removal
