Backup Lamp Switch: Testing and Inspection

TL70 MANUAL TRANSMISSION / TRANSAXLE: BACK-UP LIGHT SWITCH: INSPECTION; 2013 MY FR-S [03/2012 -]

1. INSPECT BACK-UP LIGHT SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

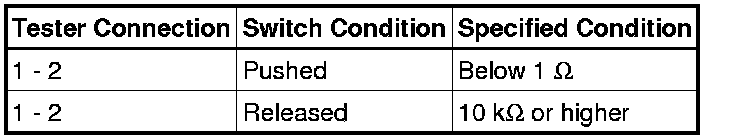

Standard Resistance:





If the result is not as specified, replace the back-up light switch assembly.
