Operation CHARM
: Car repair manuals for everyone.
Home
>>
Scion
>>
2013
>>
xB L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
Fuse: Locations
Locations

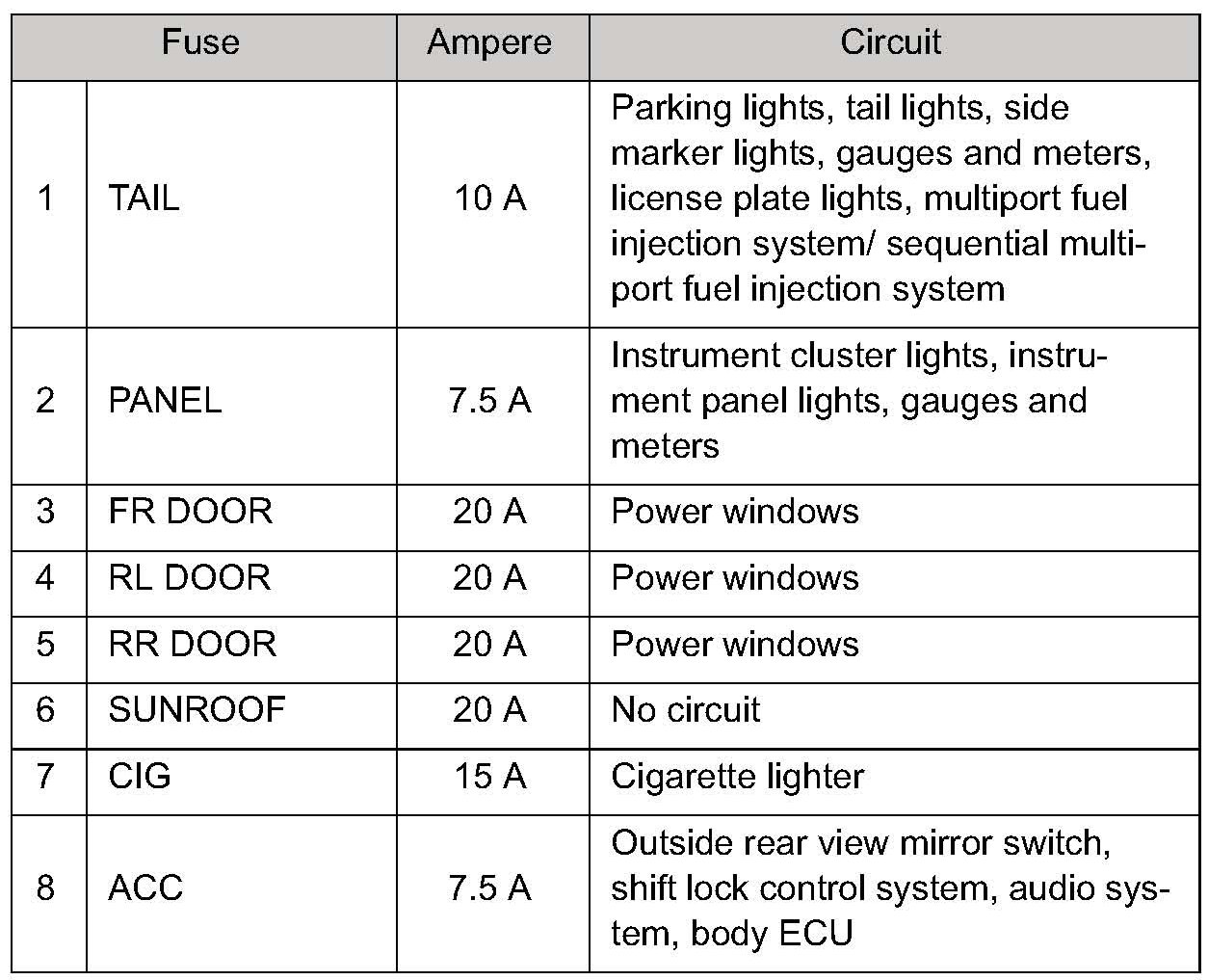

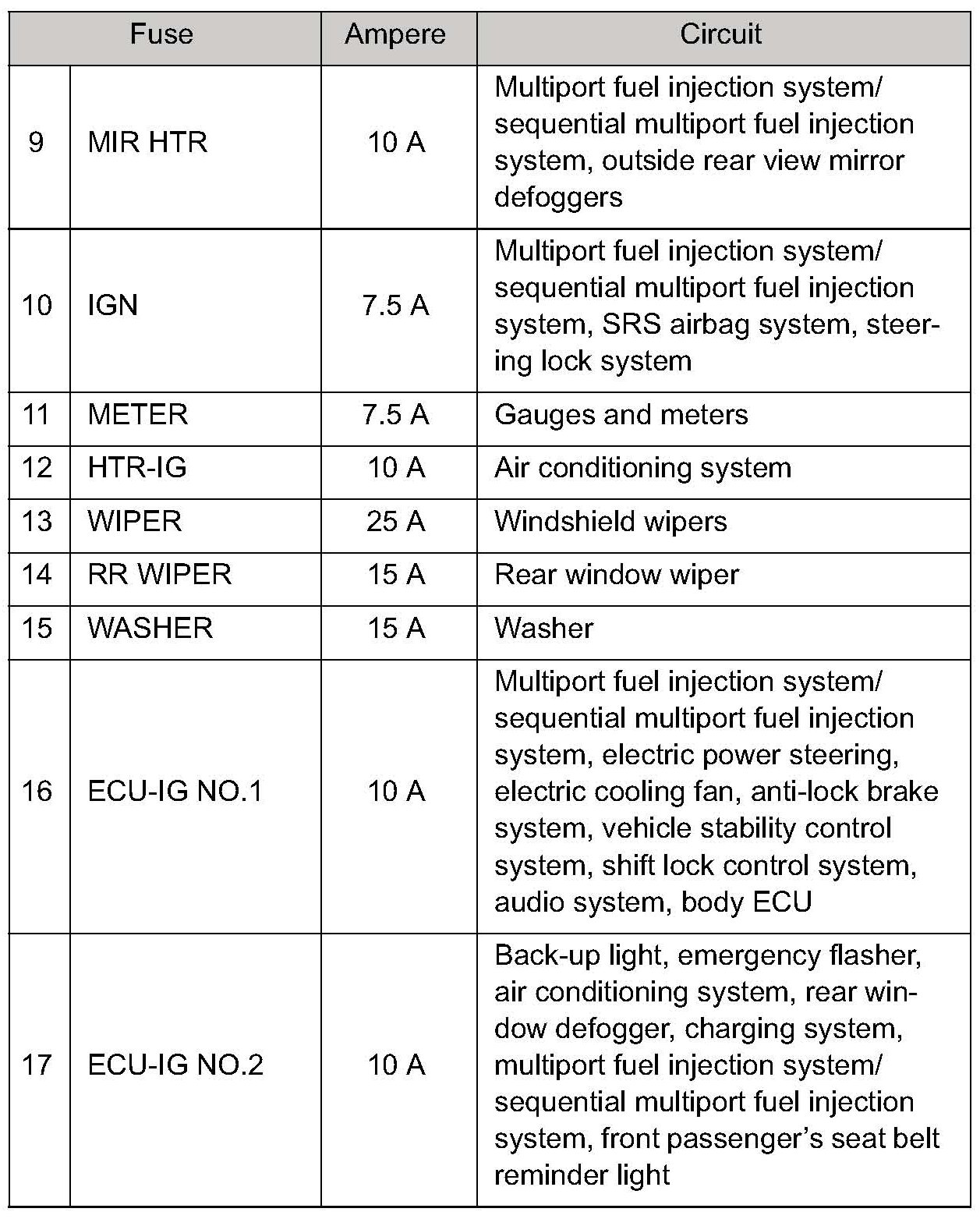

Engine Compartment

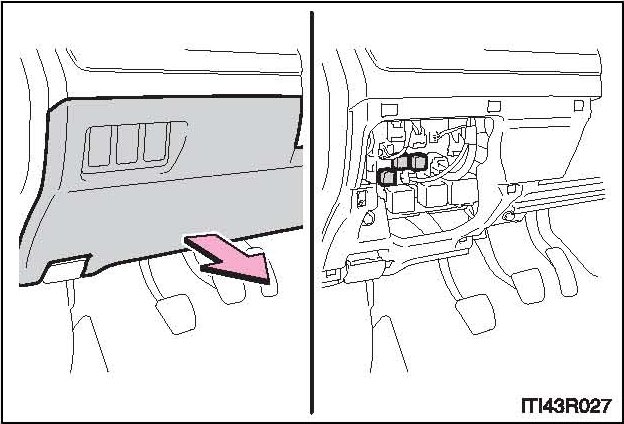

Under Driver's Side Instrument Panel

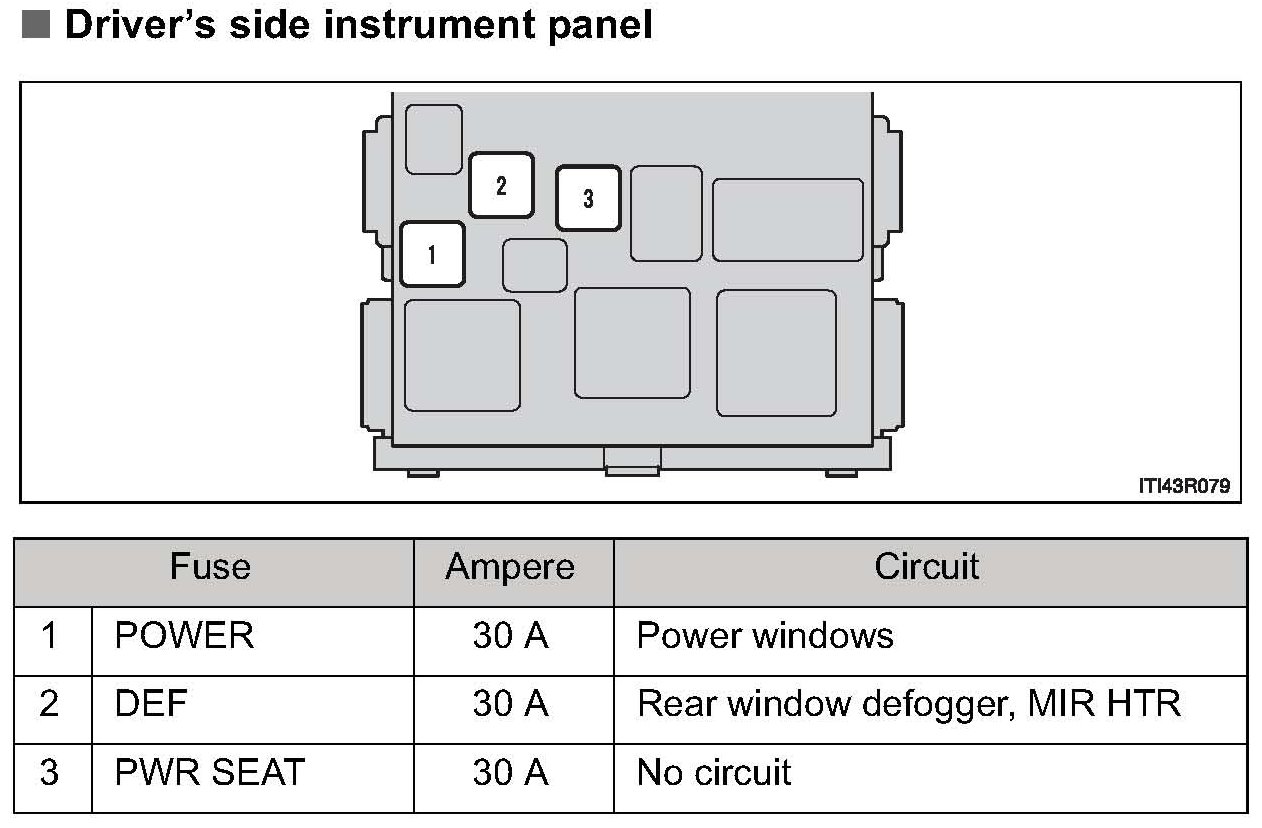

Drivers Side Instrument Panel
