A/T Technical Data

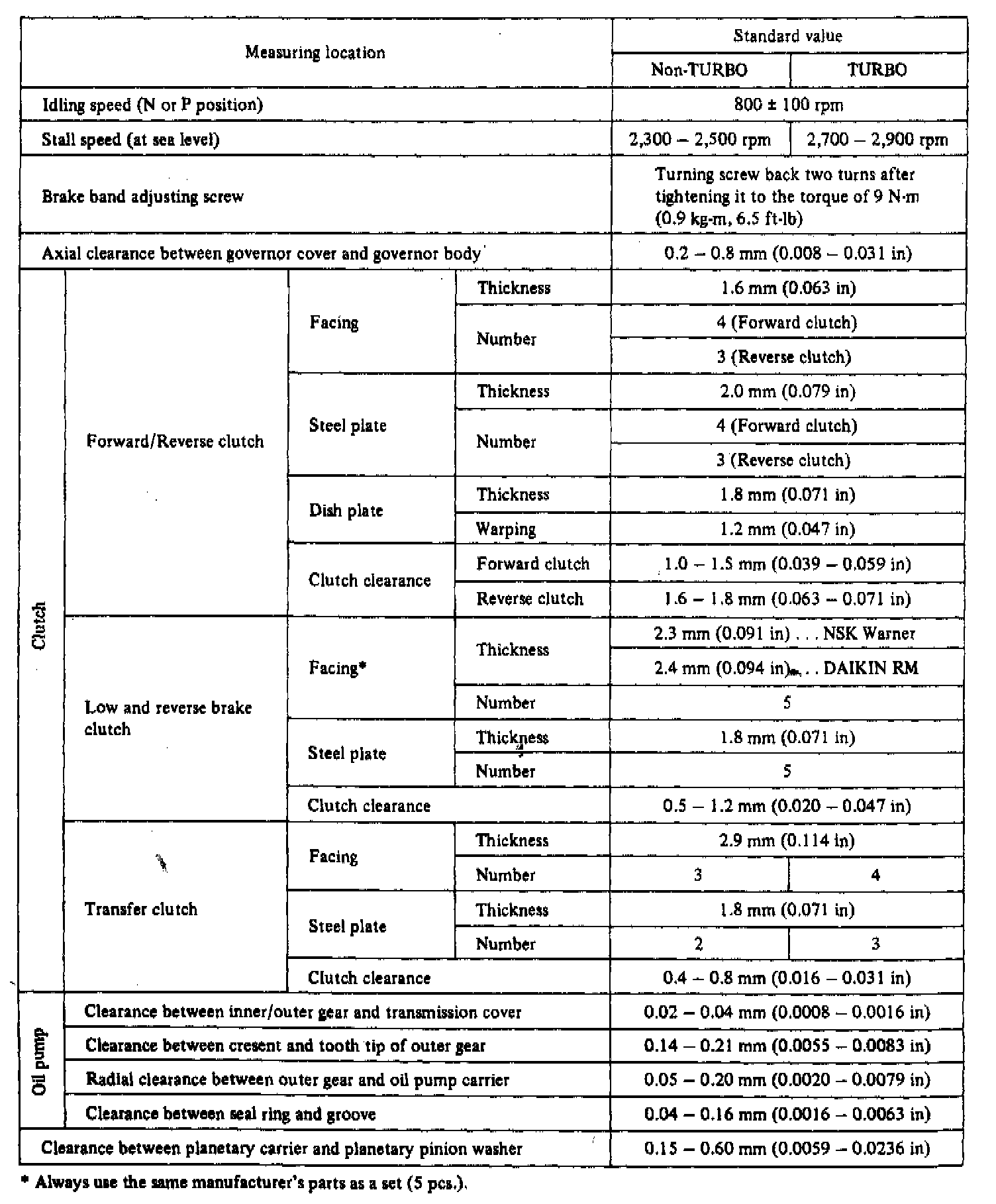

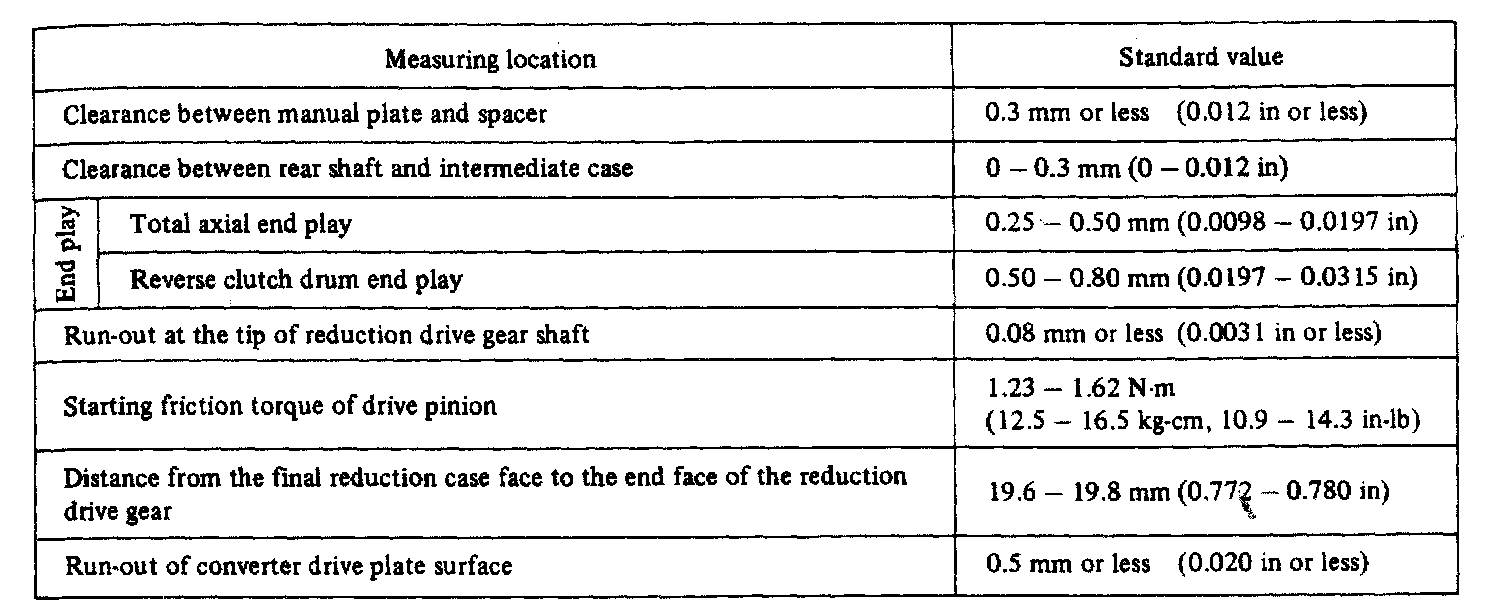

3-spd A/T, Transmission Service Data:





3-spd A/T, Transmission Service Data:





3-spd A/T, Transmission Service Data:

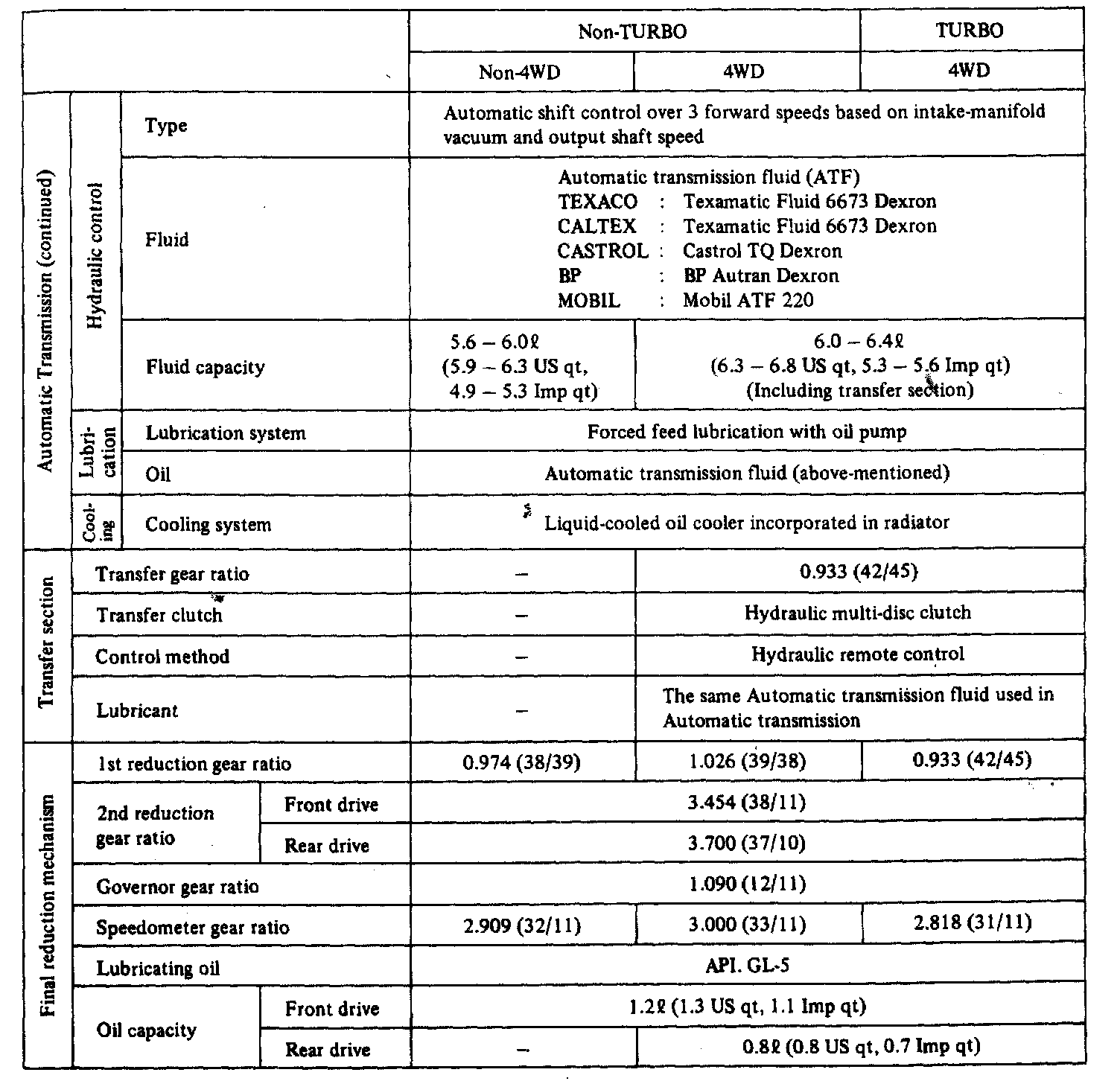

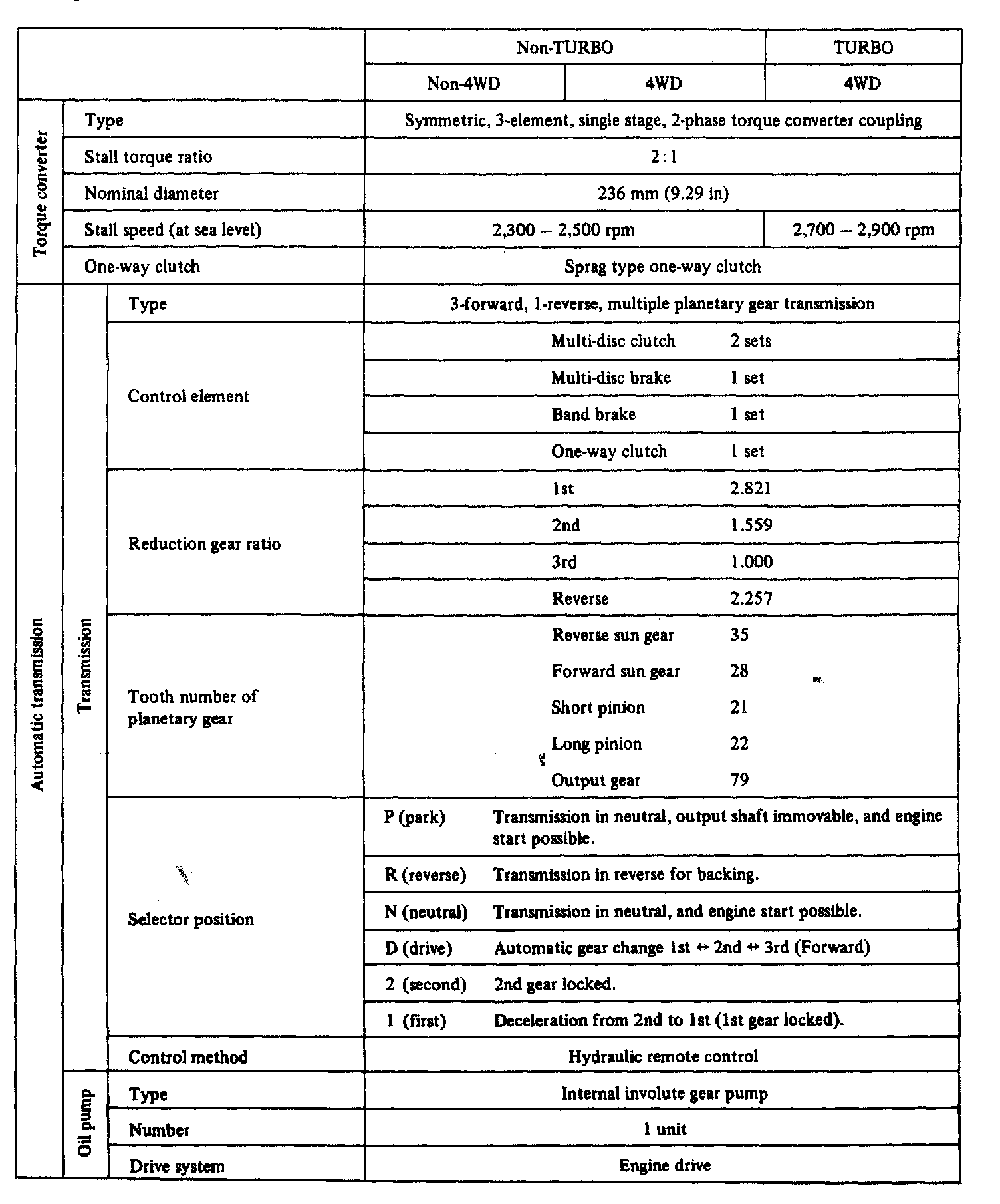

3-spd A/T, Transmission Standard Values:
