Manual Transmission/Transaxle: Specifications

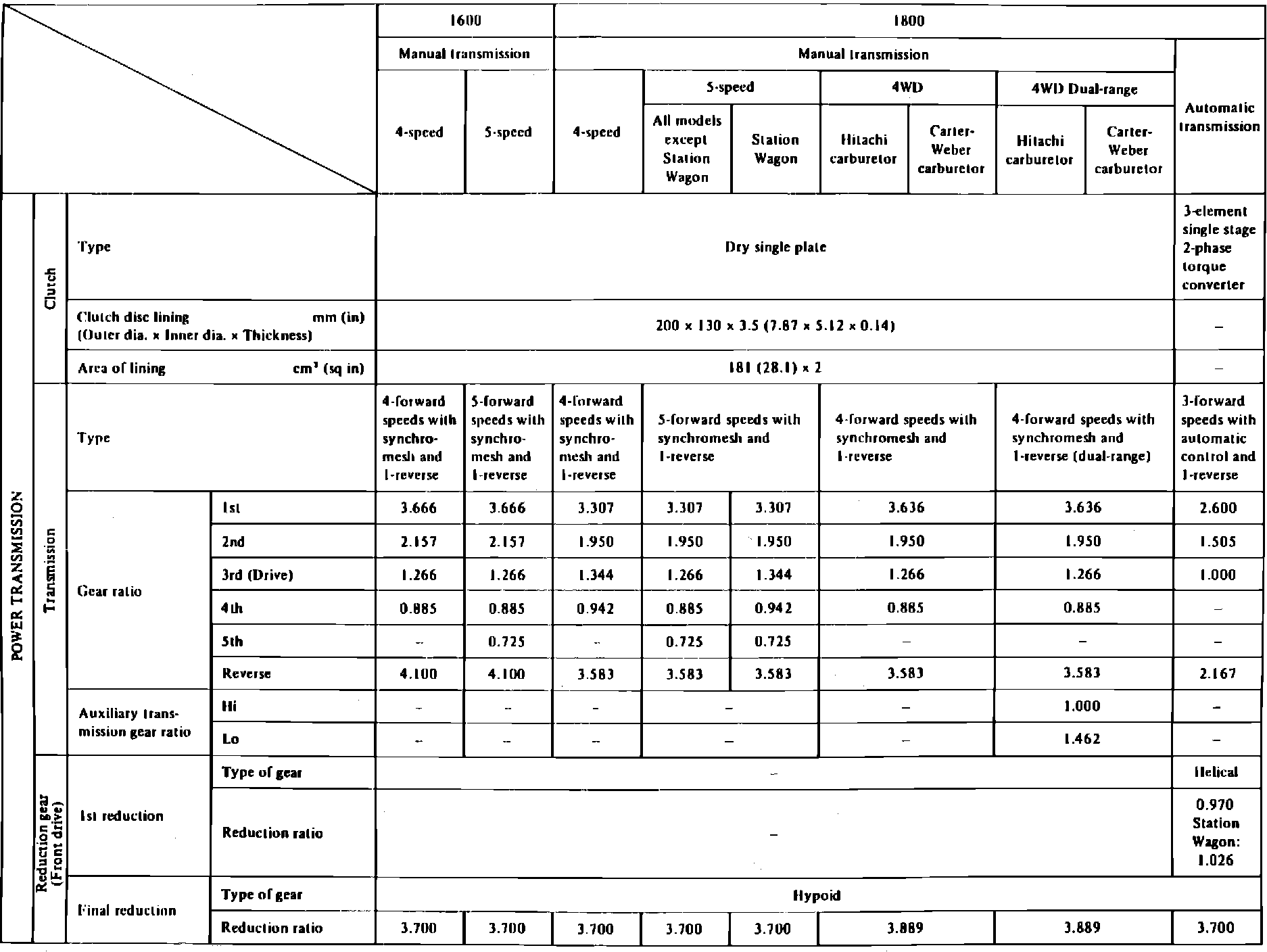

MANUAL TRANSMISSION SPECIFICATIONS

Specifications Manual Transmission:

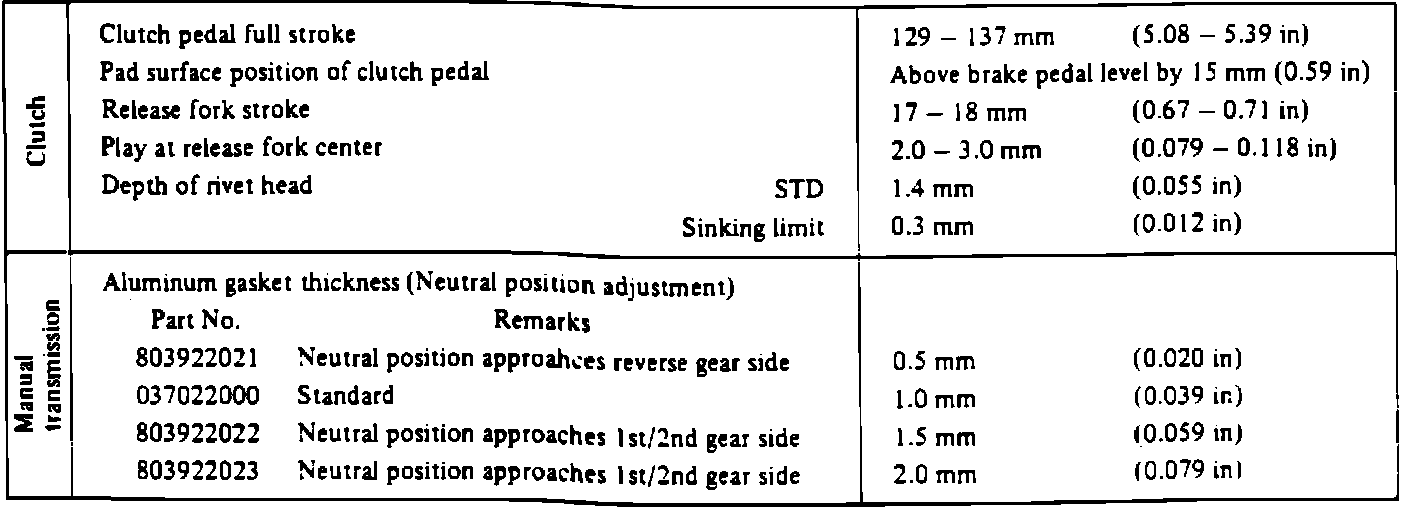

SERVICE DATA

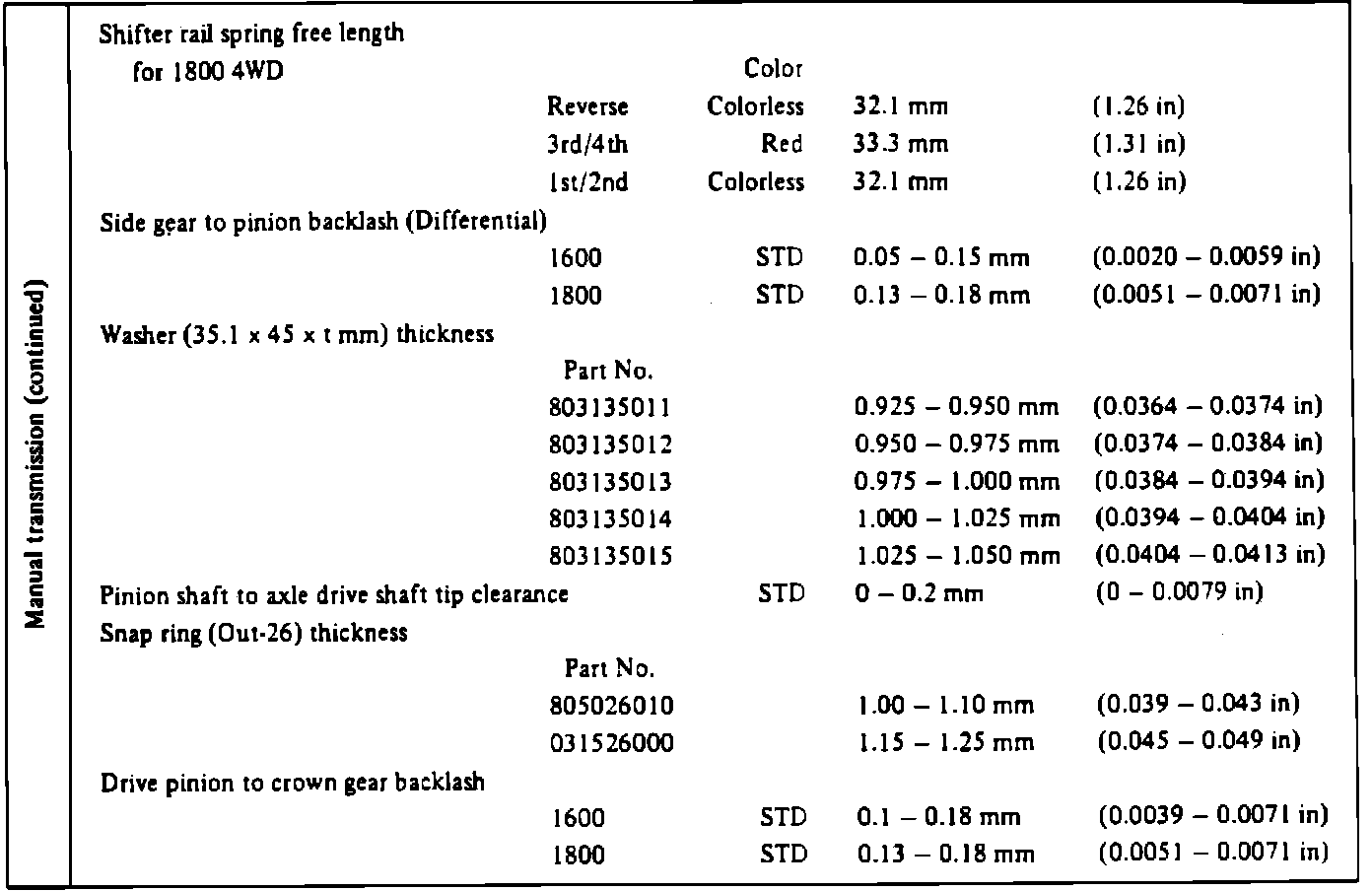

Manual Transmission Service Data (1 Of 5):

Part 1 Of 5

Manual Transmission Service Data (2 Of 5):

Part 2 Of 5

Manual Transmission Service Data (3 Of 5):

Part 3 Of 5

Manual Transmission Service Data (4 Of 5):

Part 4 Of 5

Manual Transmission Service Data (5 Of 5):

Part 5 Of 5
