A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 23
DTC 23

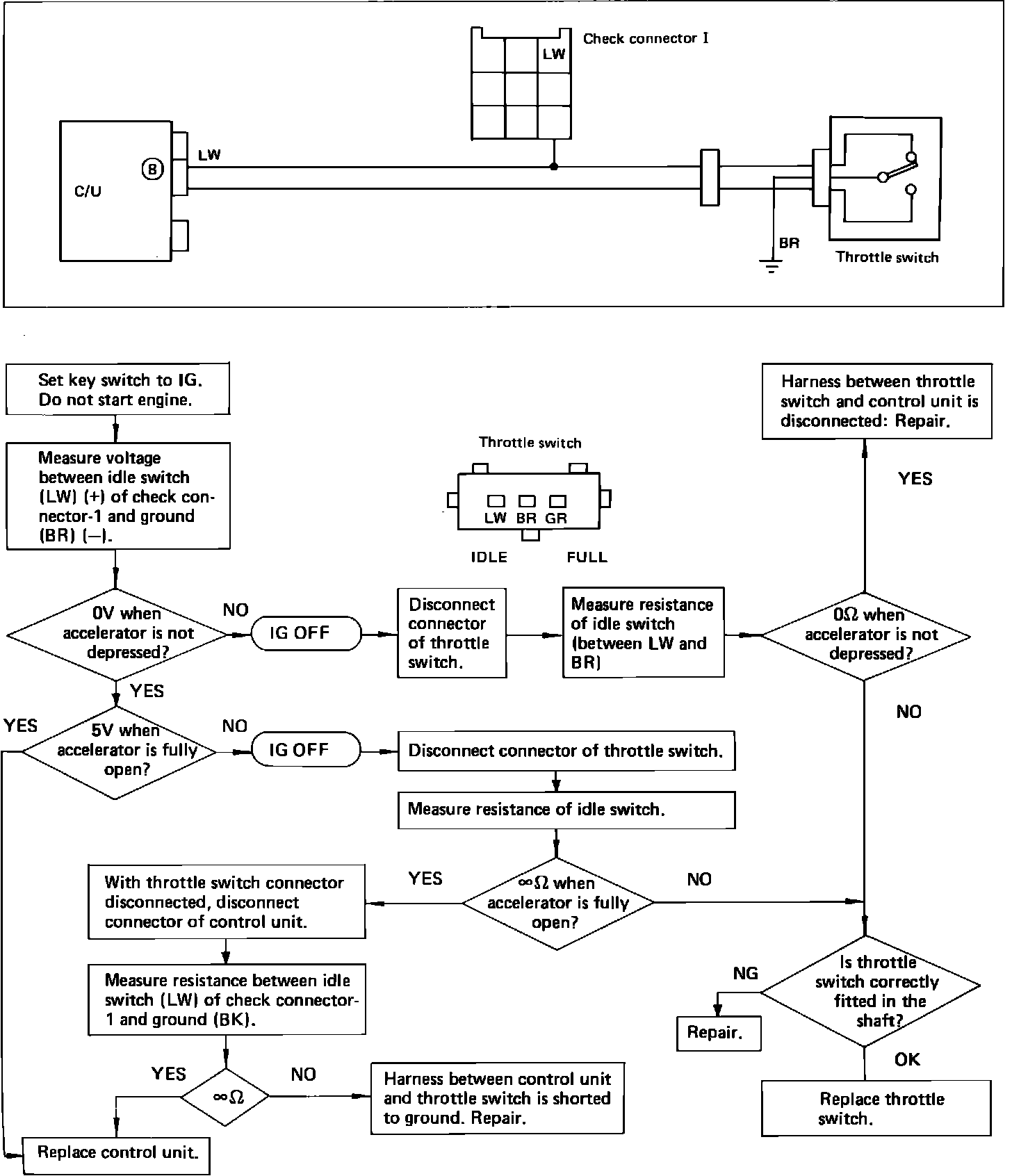

Fig. 13 EGI system troubleshooting chart. Checking idle switch circuit (trouble code 23).:
