DTC 24
DTC 24

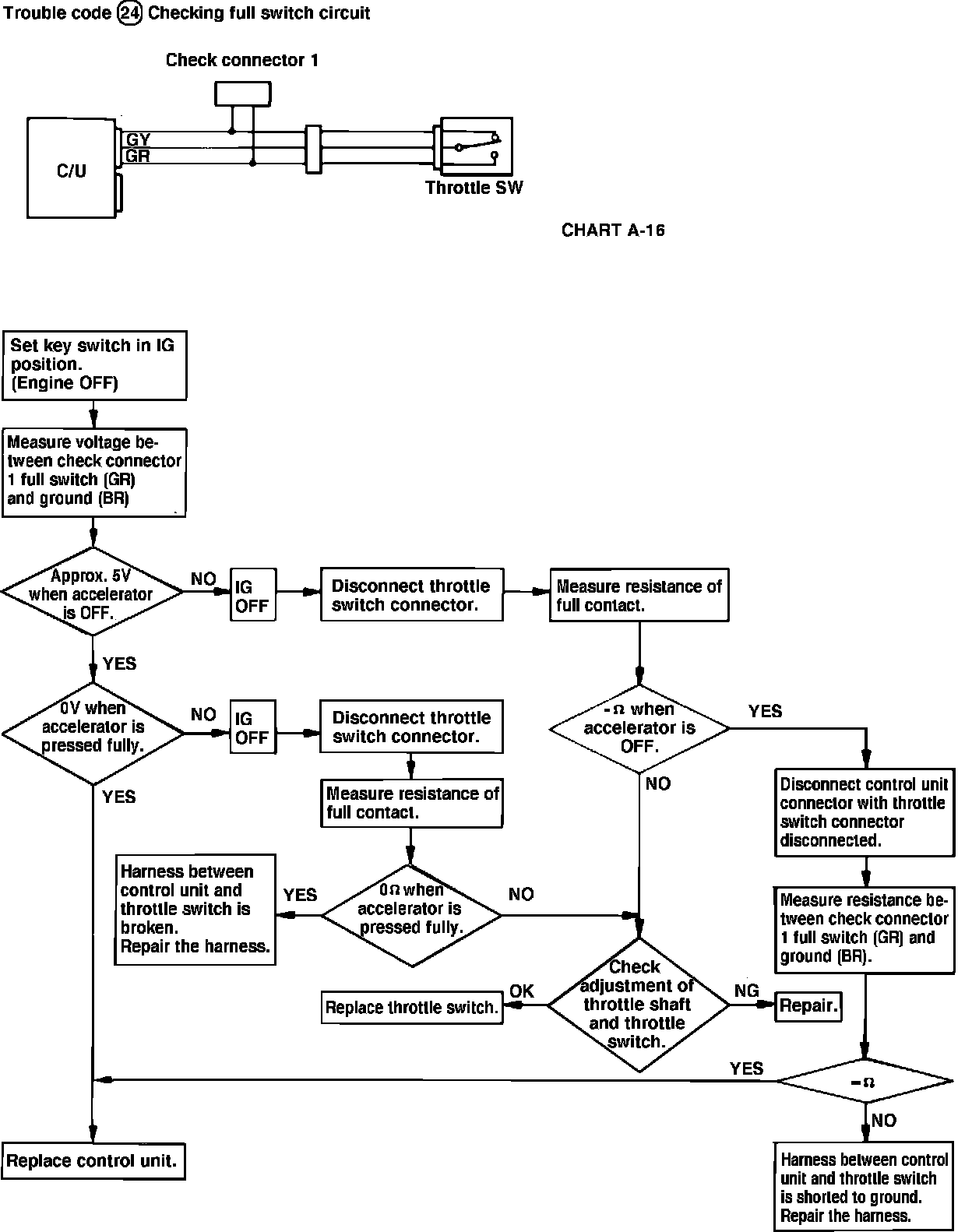

Fig. 14 EGI system troubleshooting chart. Checking full switch circuit (trouble code 24).:
