DTC 32
DTC 32

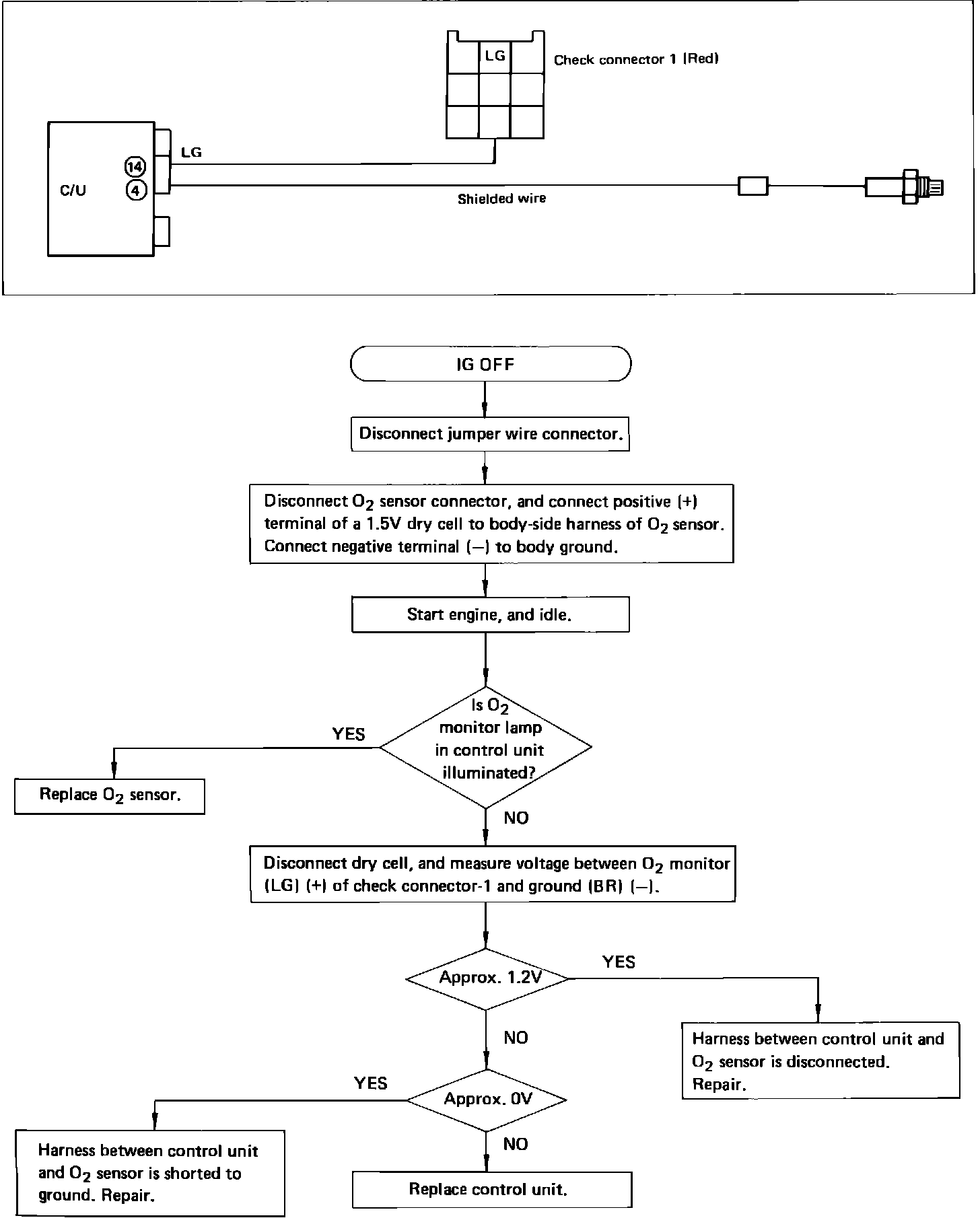

Fig. 16 EGI system troubleshooting chart. Checking oxygen sensor circuit (trouble code 32).:
