DTC 34
DTC 34

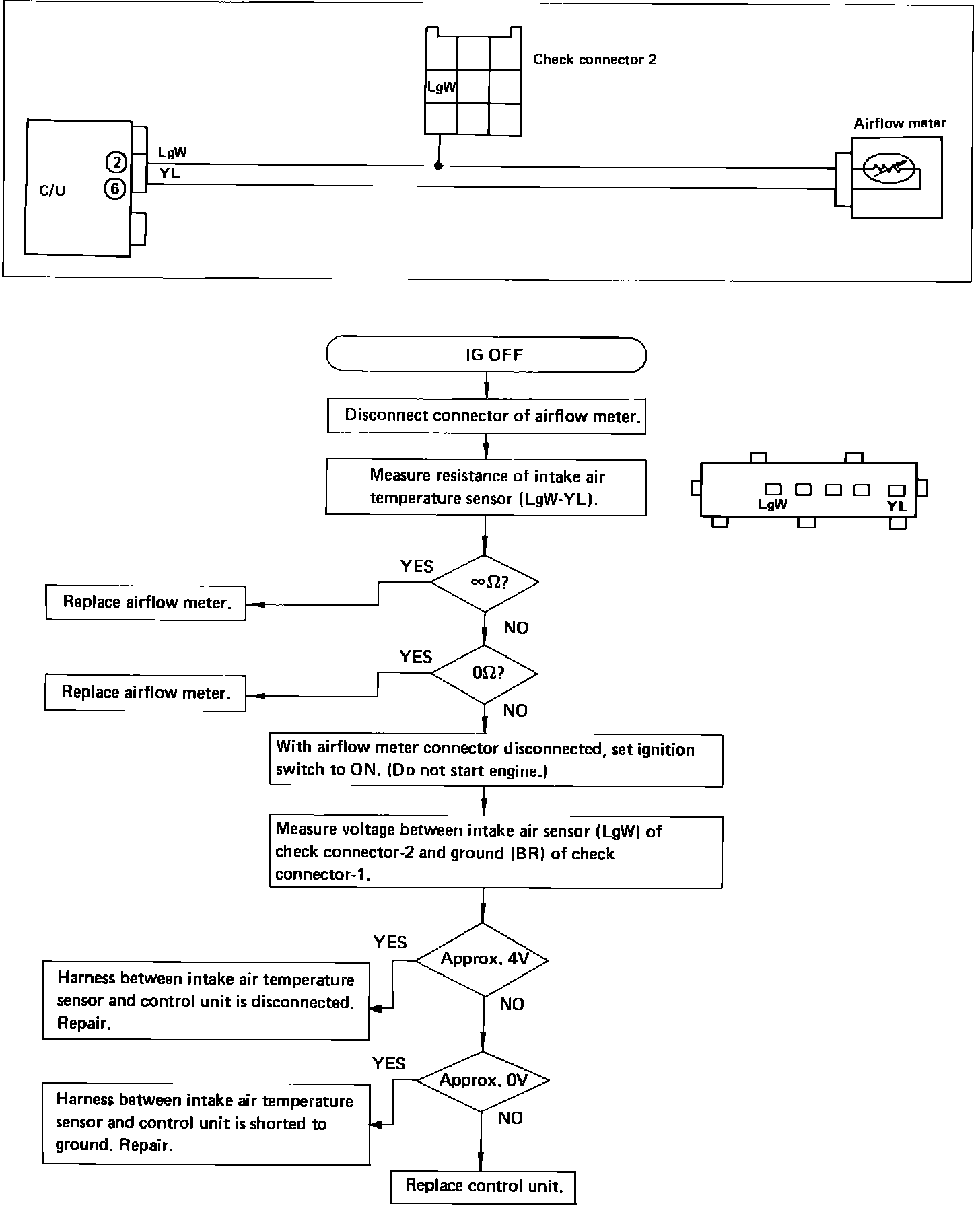

Fig. 18 EGI system troubleshooting chart. Checking aspirated air thermosensor circuit (trouble code 34).:
