DTC 35
DTC 35

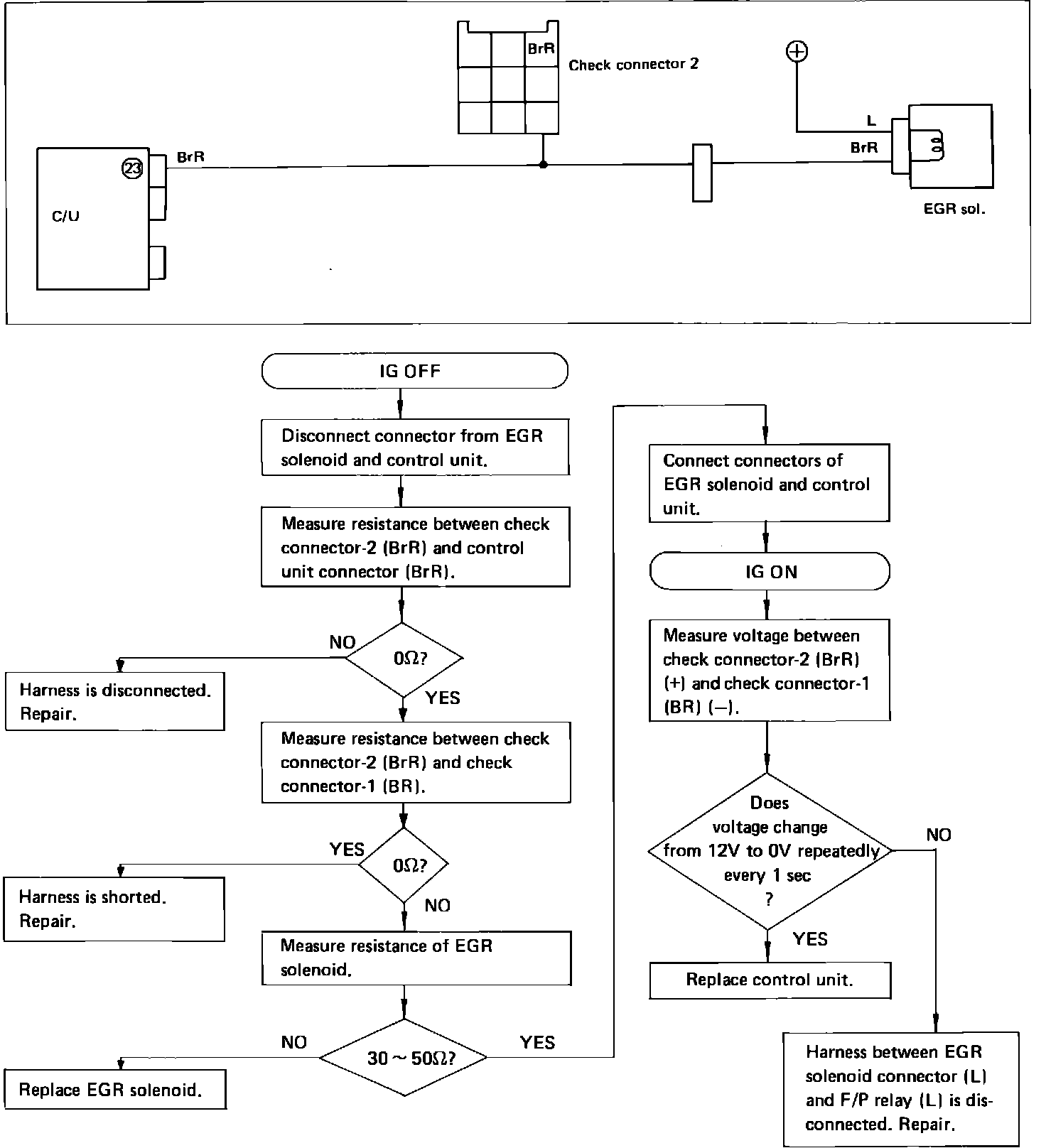

Fig. 19 EGI system troubleshooting chart. Checking EGR solenoid switch (trouble code 35).:
