DTC 42
DTC 42

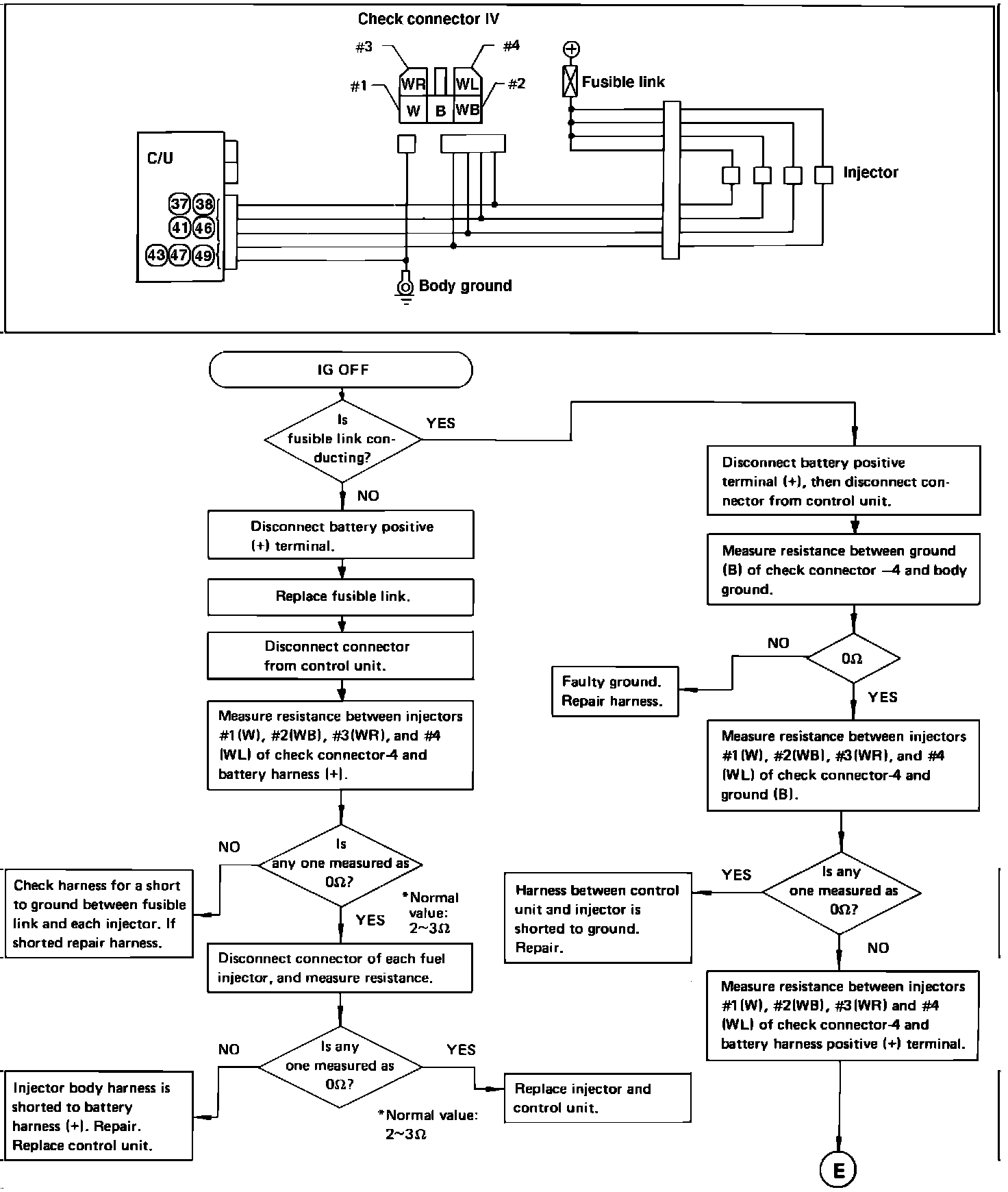

Fig. 20a EGI system troubleshooting chart. Checking fuel injector circuit (trouble code 42).:

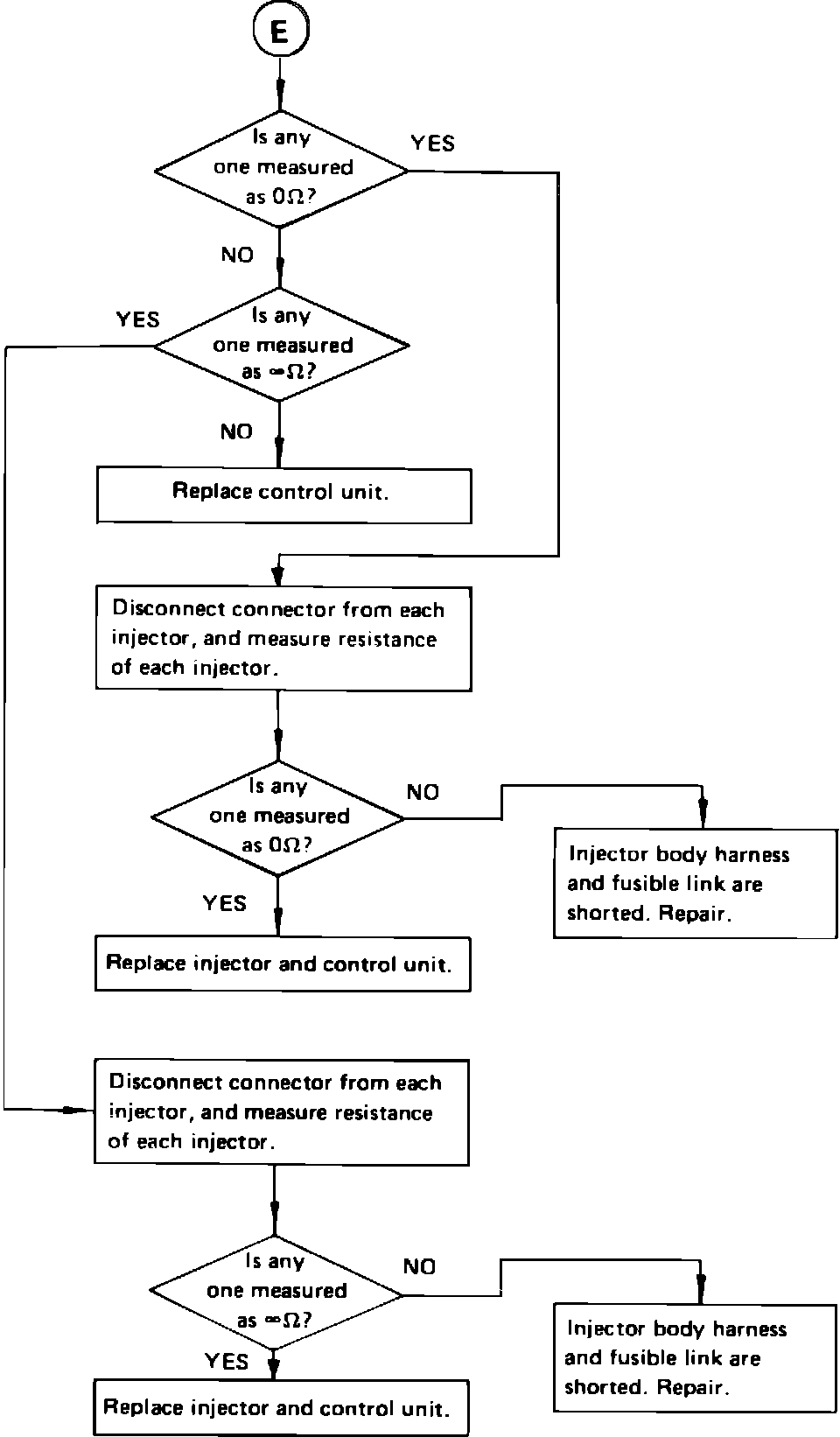

Fig. 20b EGI system troubleshooting chart. Checking fuel injector circuit (trouble code 42).:
