DTC 43

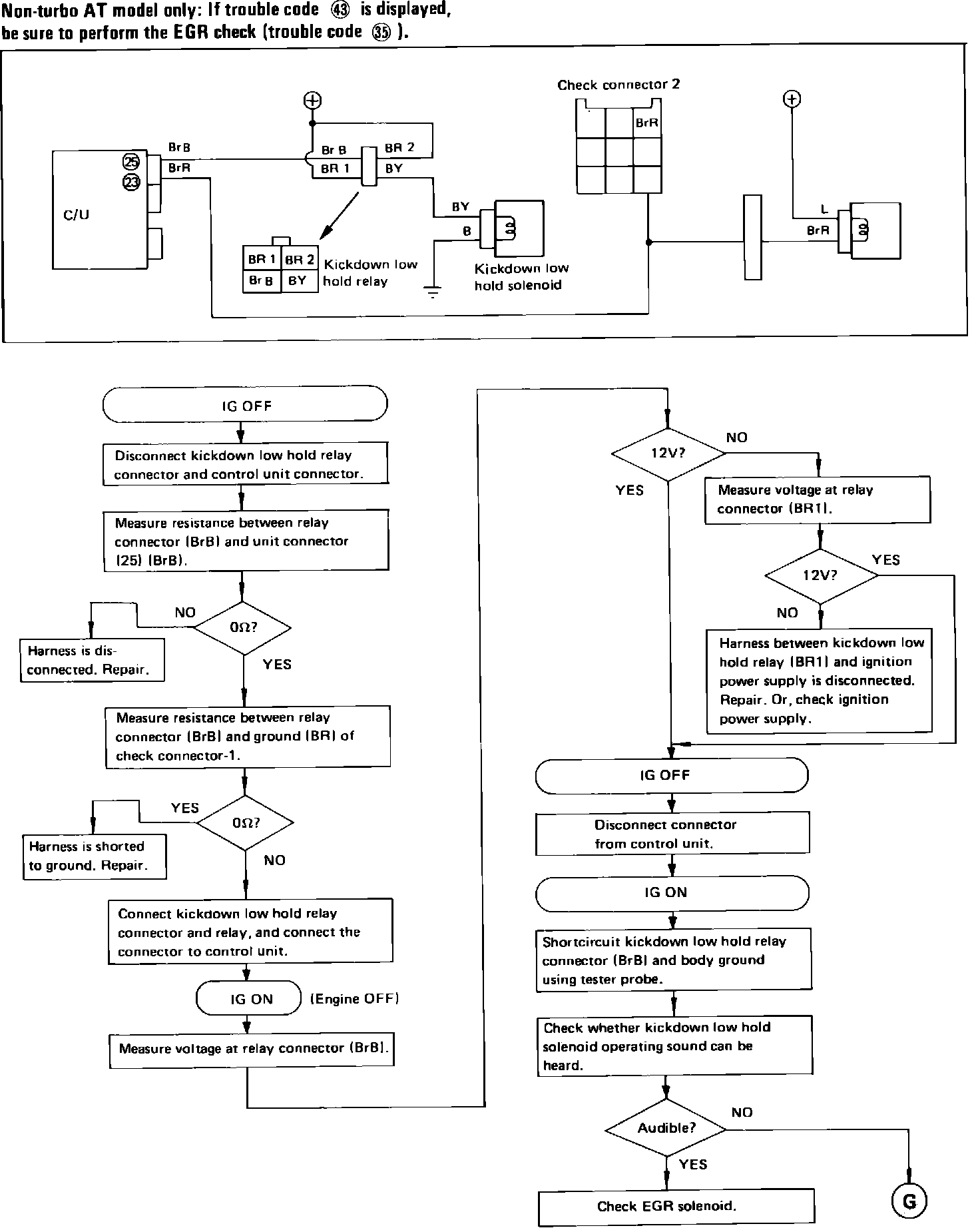

Fig. 21a EGI system troubleshooting chart. Checking KDLH relay (trouble code 43).:



Fig. 21b EGI system troubleshooting chart. Checking KDLH relay (trouble code 43).:
