Fuel Pump: Testing and Inspection

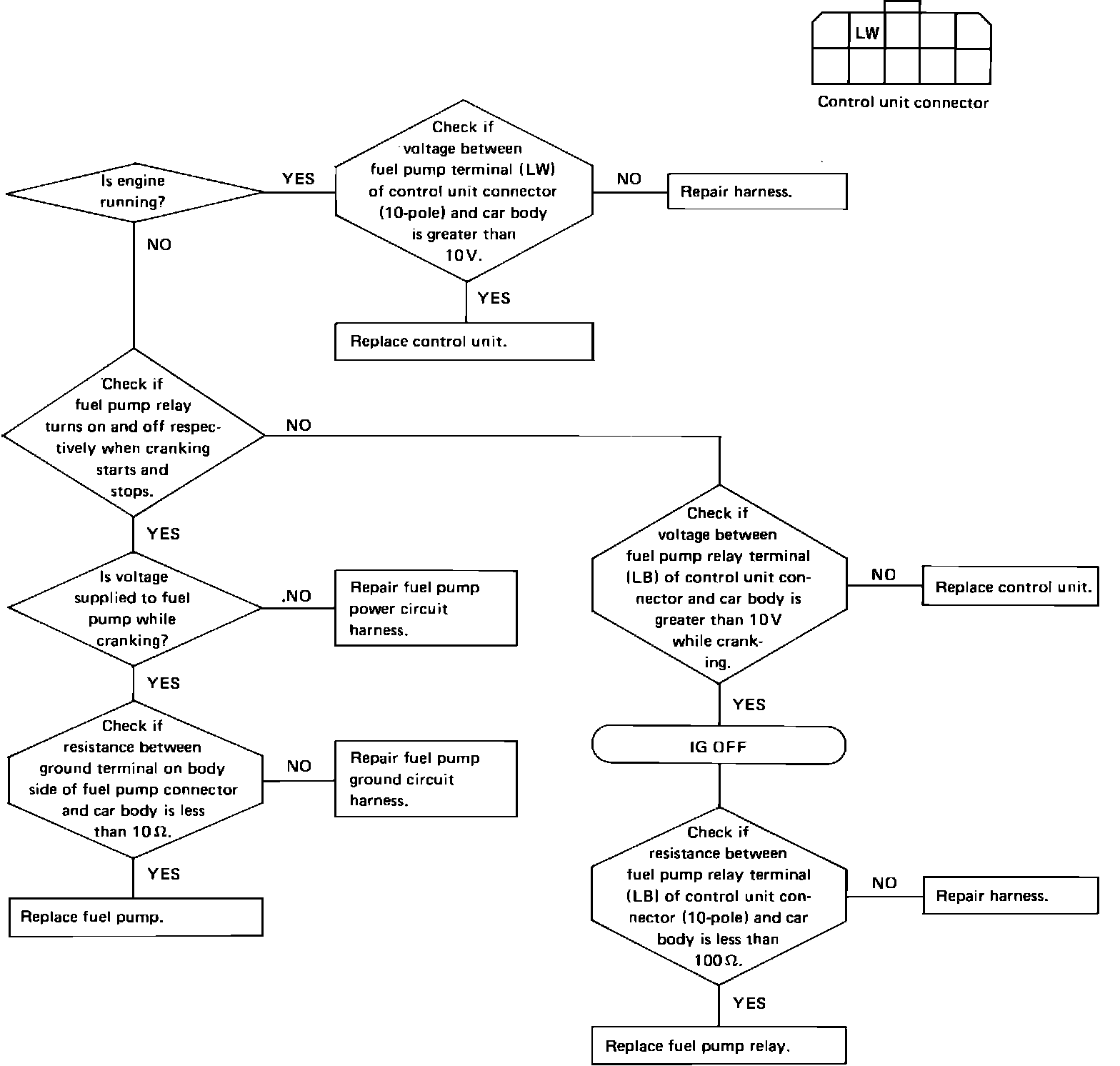

Fig. 15 EGI system troubleshooting chart. Checking fuel pump circuit (trouble code 53).:
