A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 12
DTC 12

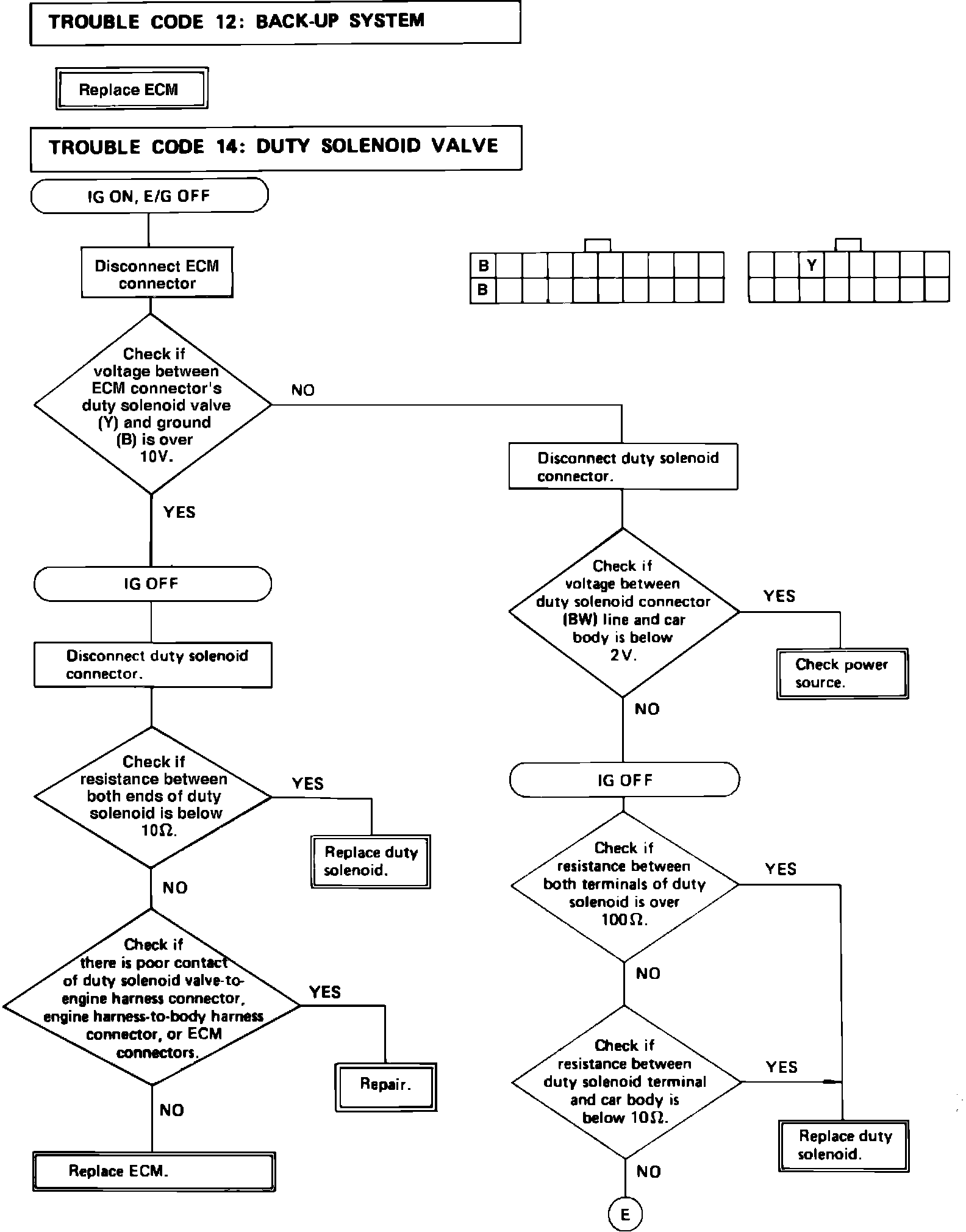

Fig. 27a Electronically controlled carburetor diagnostic chart. Trouble codes 12 and 14.:

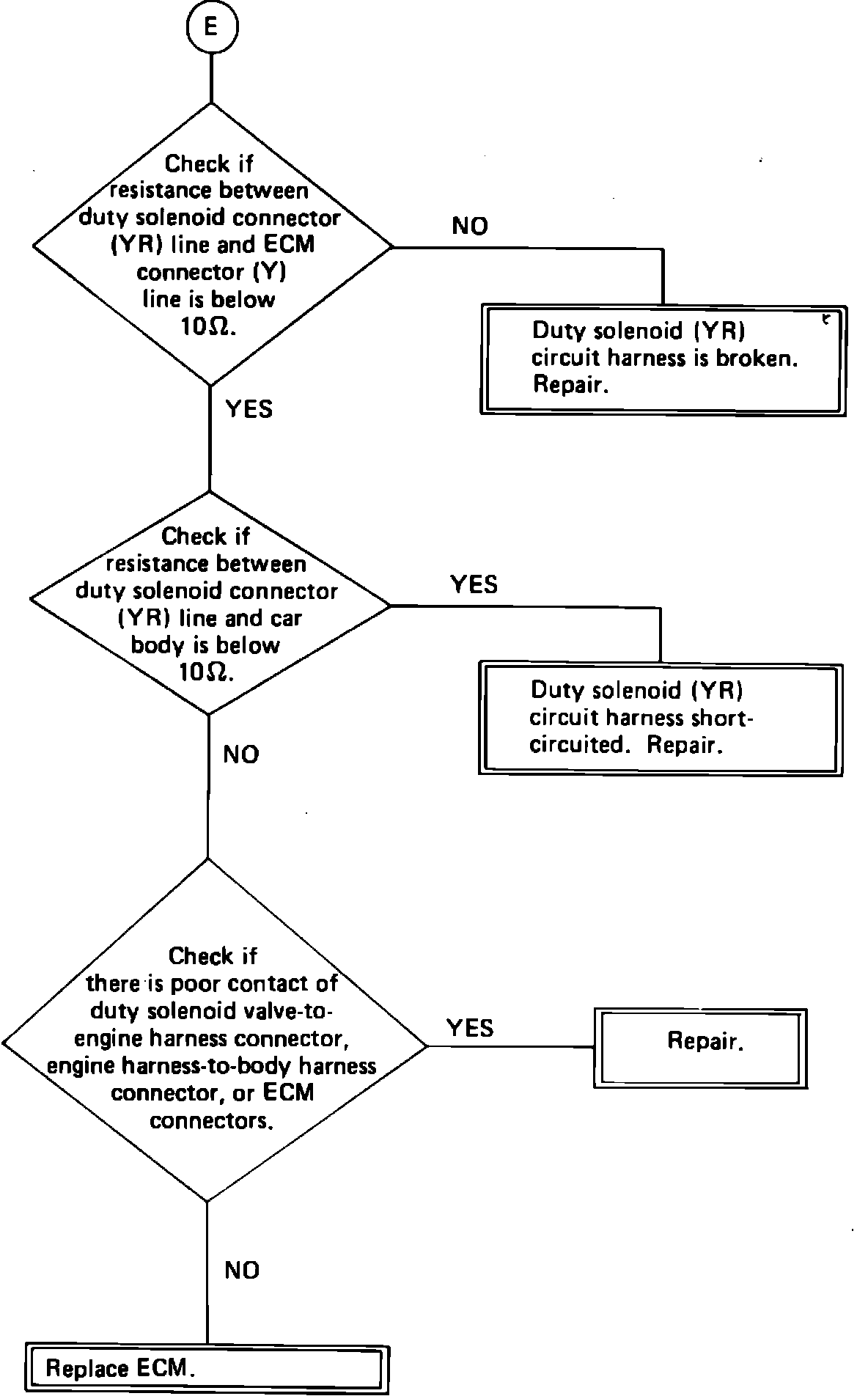

Fig. 27b Electronically controlled carburetor diagnostic chart. Trouble codes 12 and 14.:
