A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 23
DTC 23

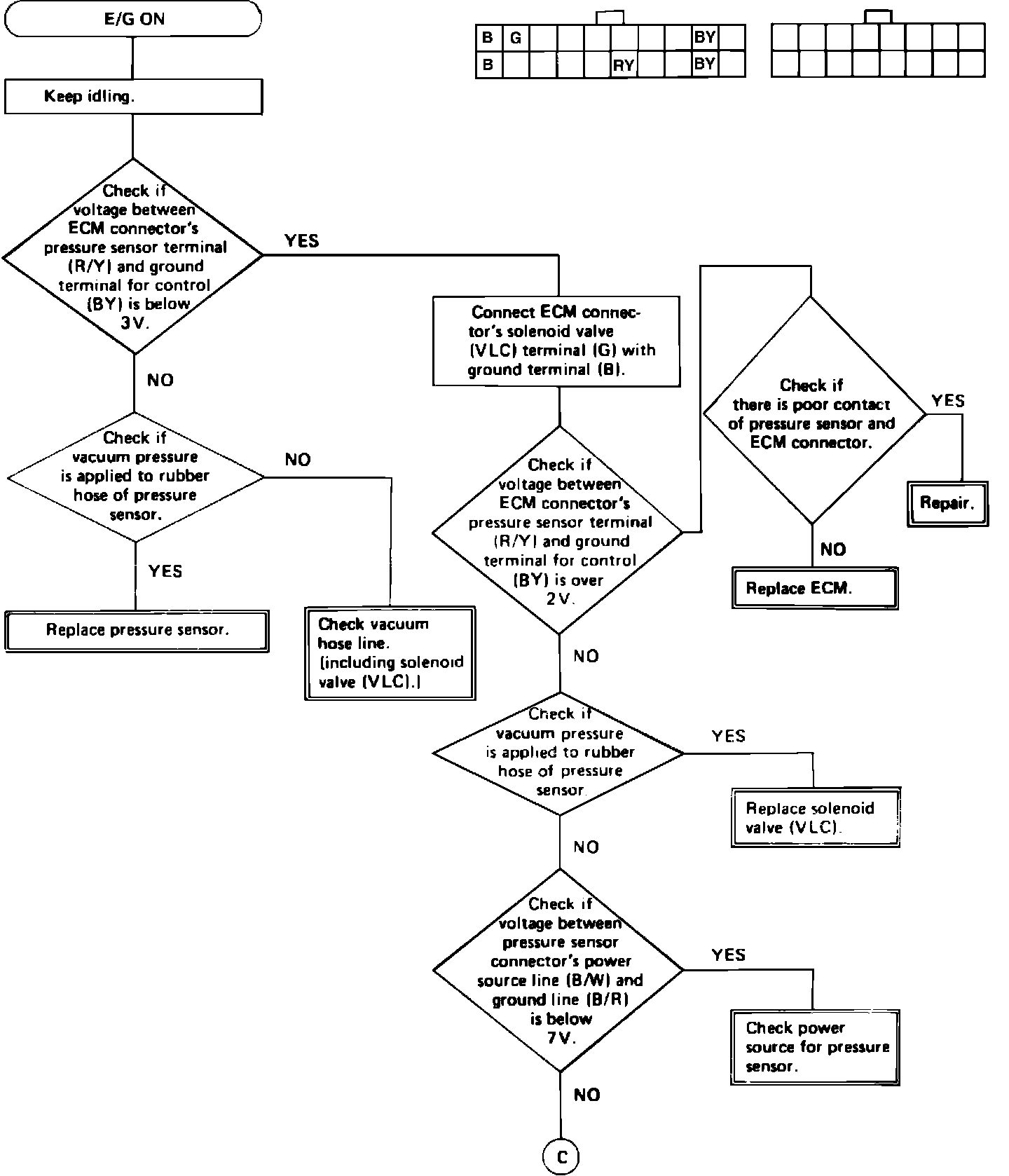

Fig. 30a Electronically controlled carburetor diagnostic chart . Trouble code 23.:

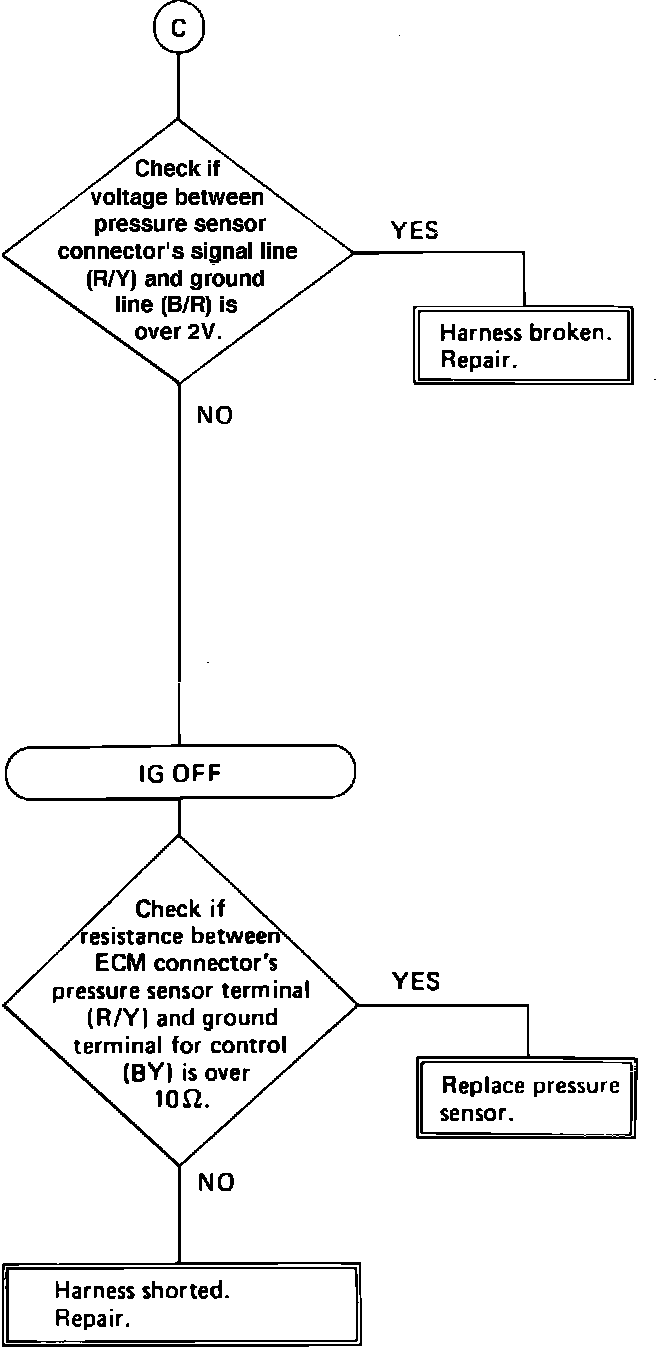

Fig. 30b Electronically controlled carburetor diagnostic chart . Trouble code 23.:
