Home >> Subaru >> 1987 >> Justy L3-1189cc 1.2L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 24

DTC 24

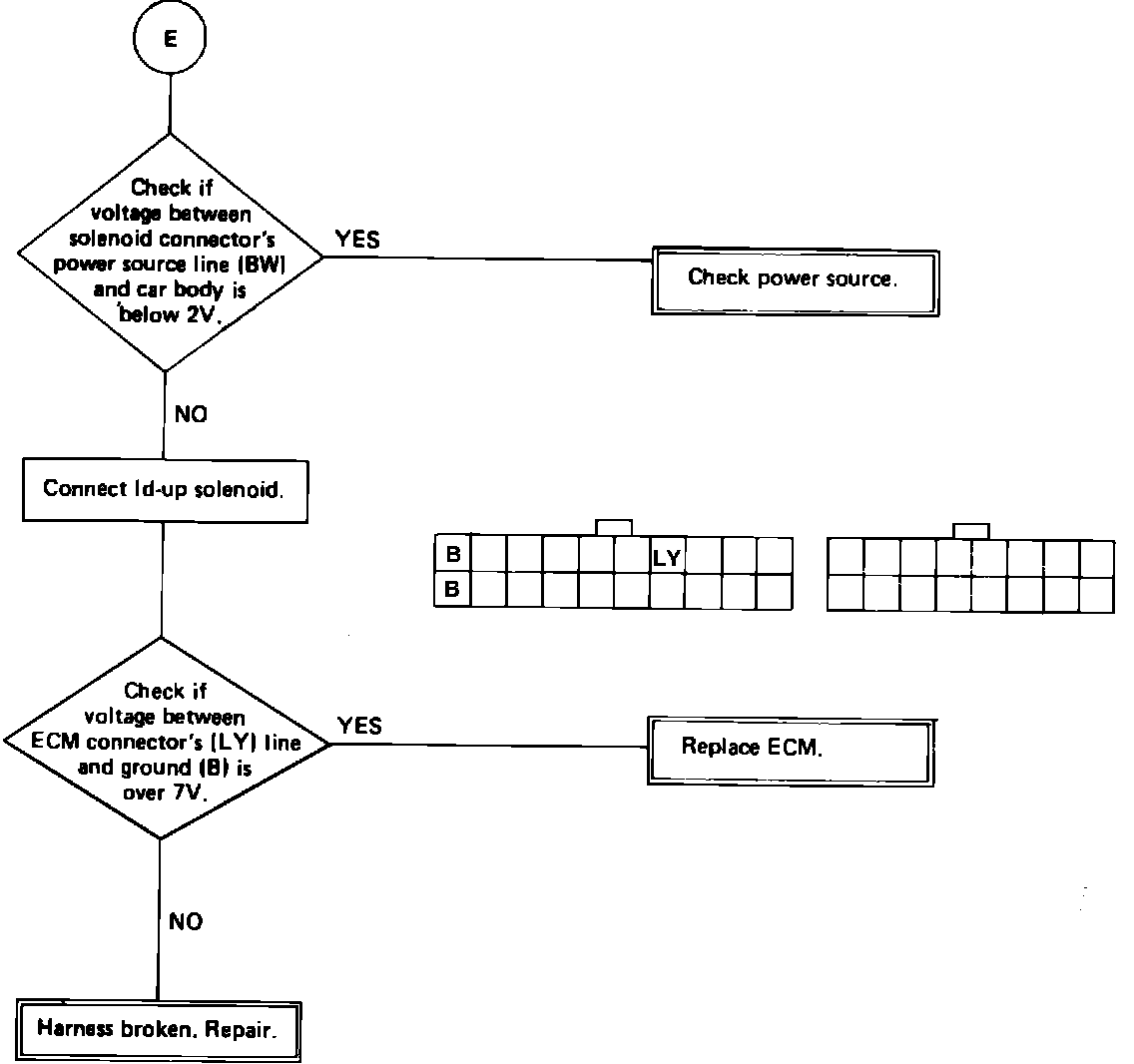

Fig. 31a Electronically controlled carburetor diagnostic chart. Trouble code 24.:

Fig. 31b Electronically controlled carburetor diagnostic chart. Trouble code 24.:
