DTC 25

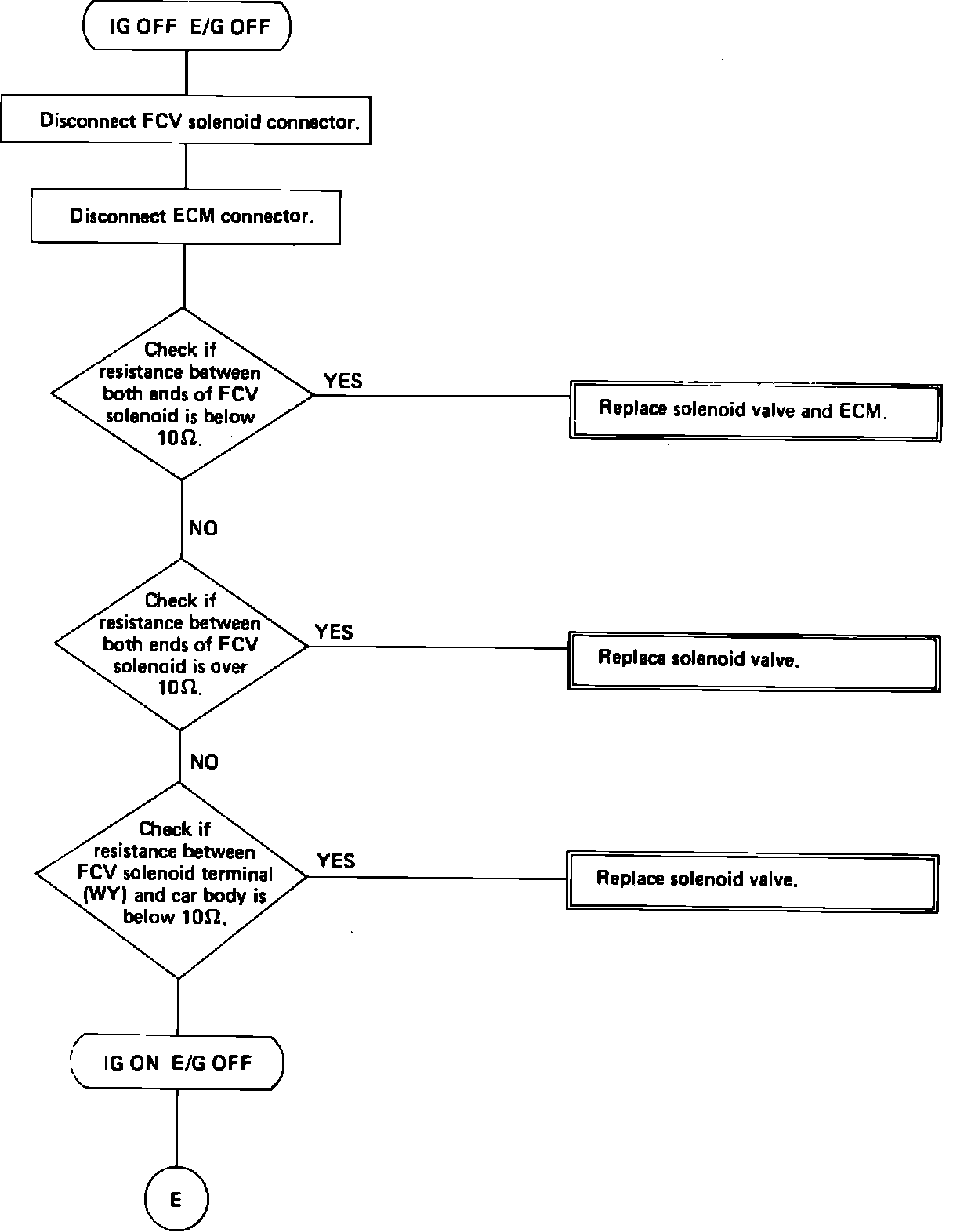

Fig. 32a Electronically controlled carburetor diagnostic chart. Trouble code 25.:

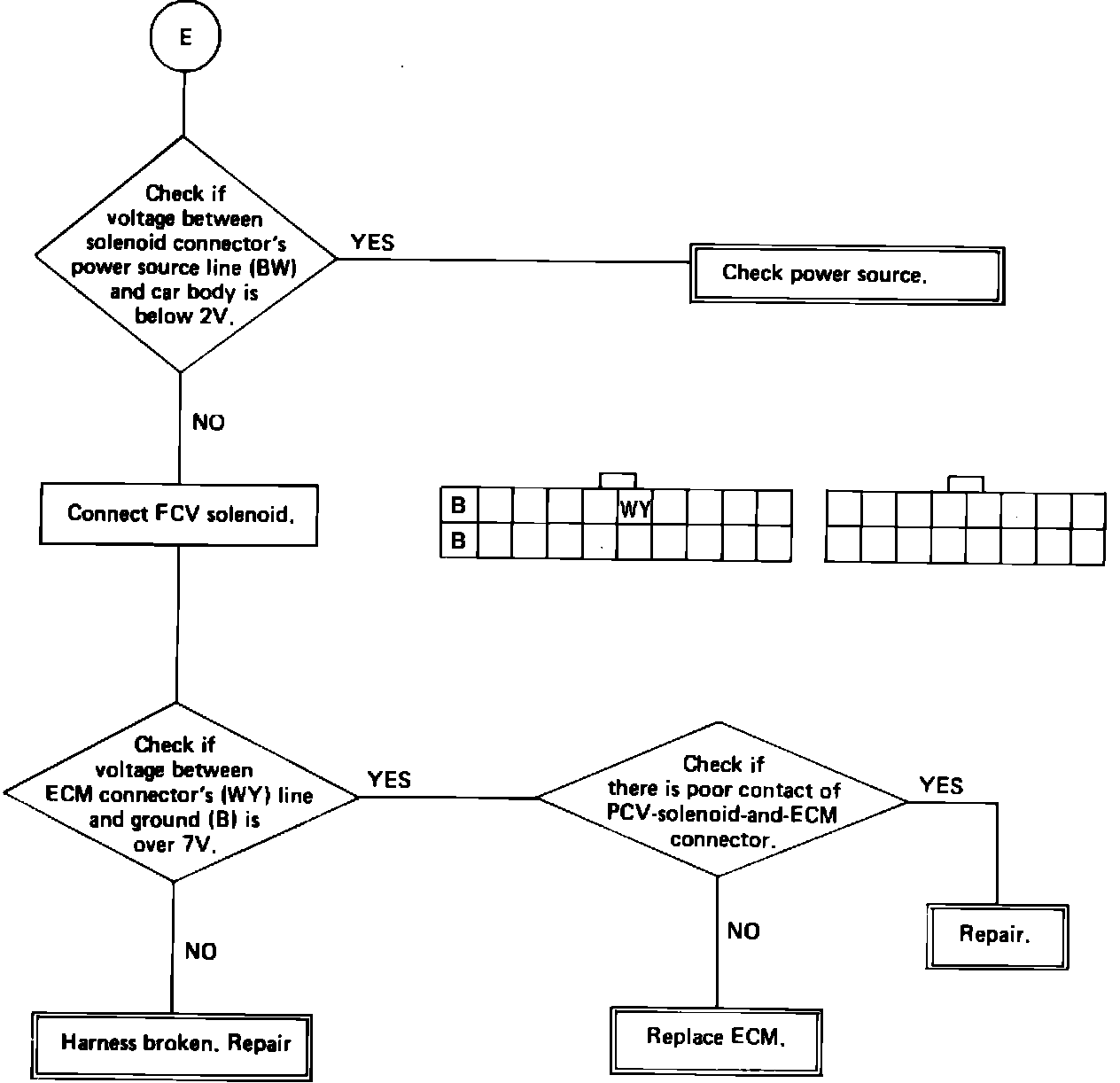

Fig. 32b Electronically controlled carburetor diagnostic chart. Trouble code 25.:
