Operation CHARM
: Car repair manuals for everyone.
Home
>>
Subaru
>>
1987
>>
Justy L3-1189cc 1.2L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 32
DTC 32

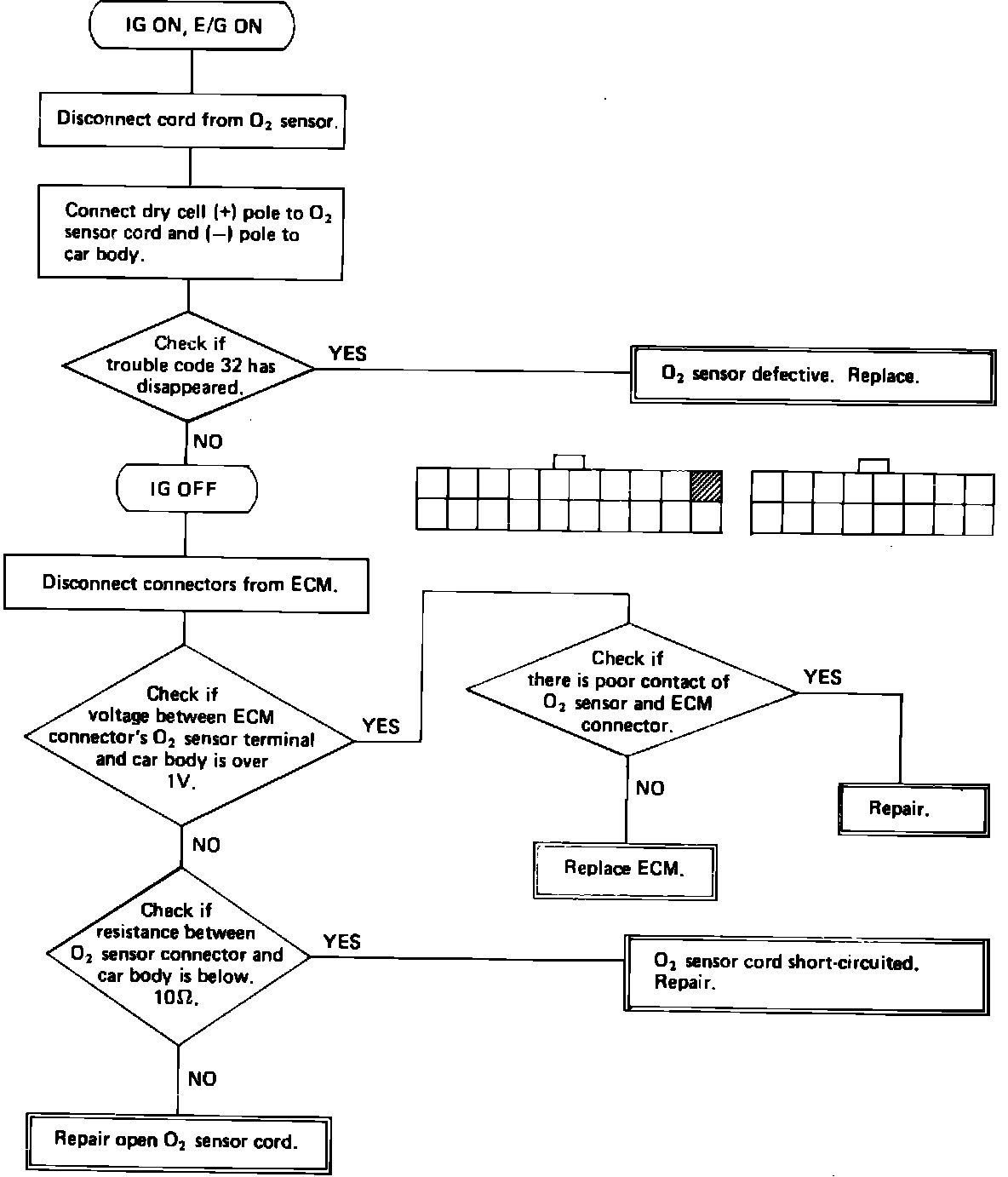

Fig. 33 Electronically controlled carburetor diagnostic chart. Trouble code 32.:

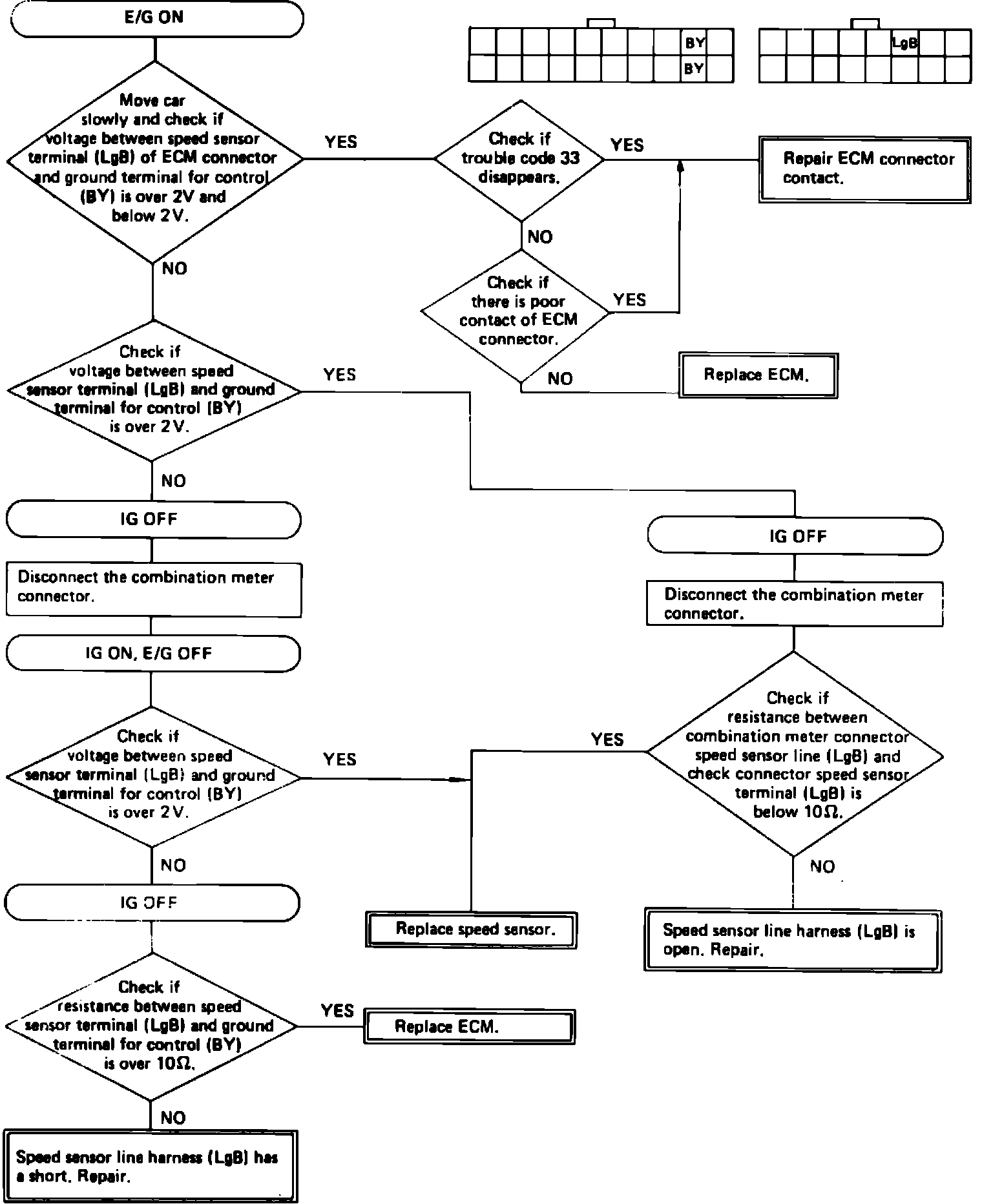

Fig. 34 Electronically controlled carburetor diagnostic chart. Trouble code 33.:
