DTC 35

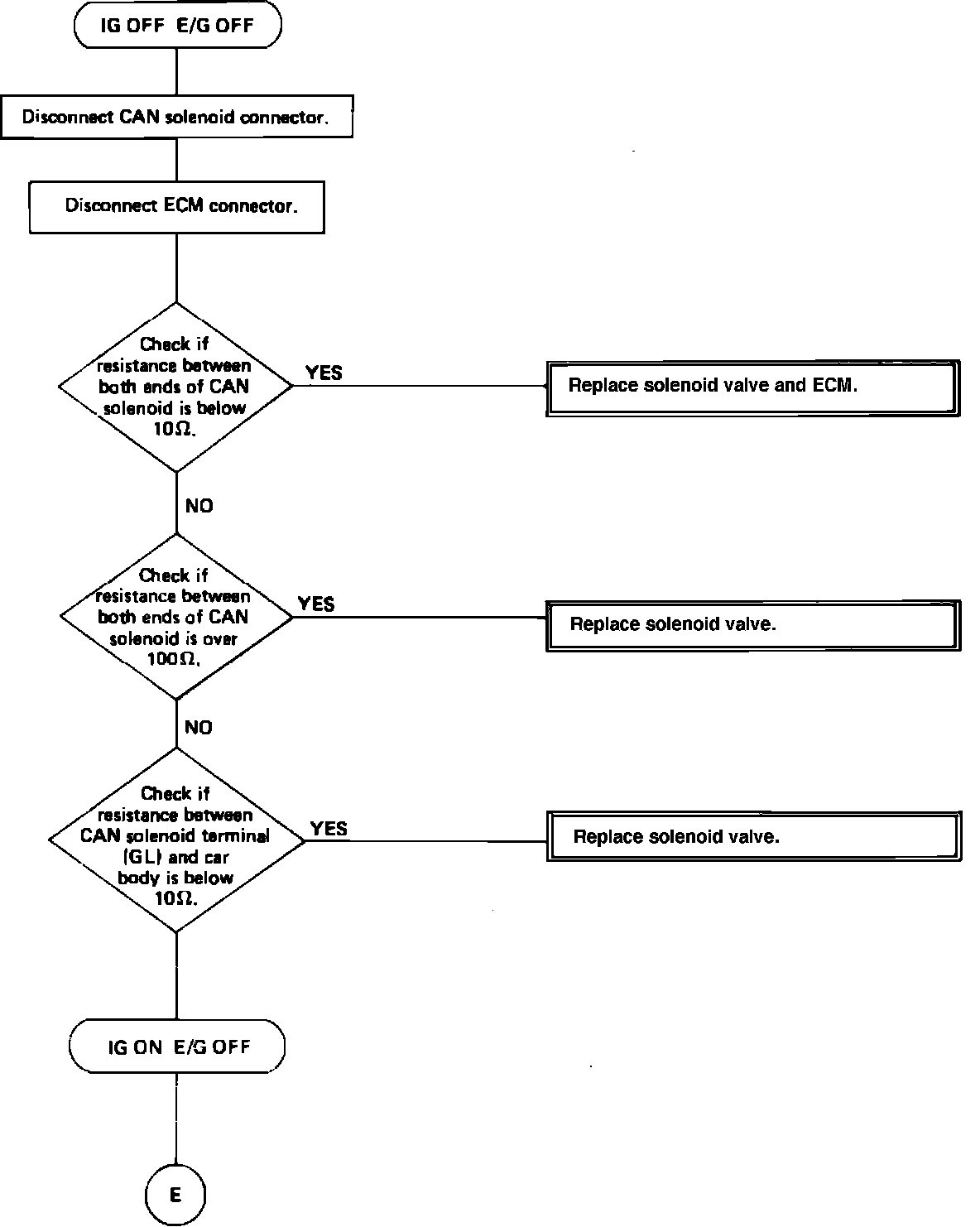

Fig. 35a Electronically controlled carburetor diagnostic chart. Trouble code 35.:

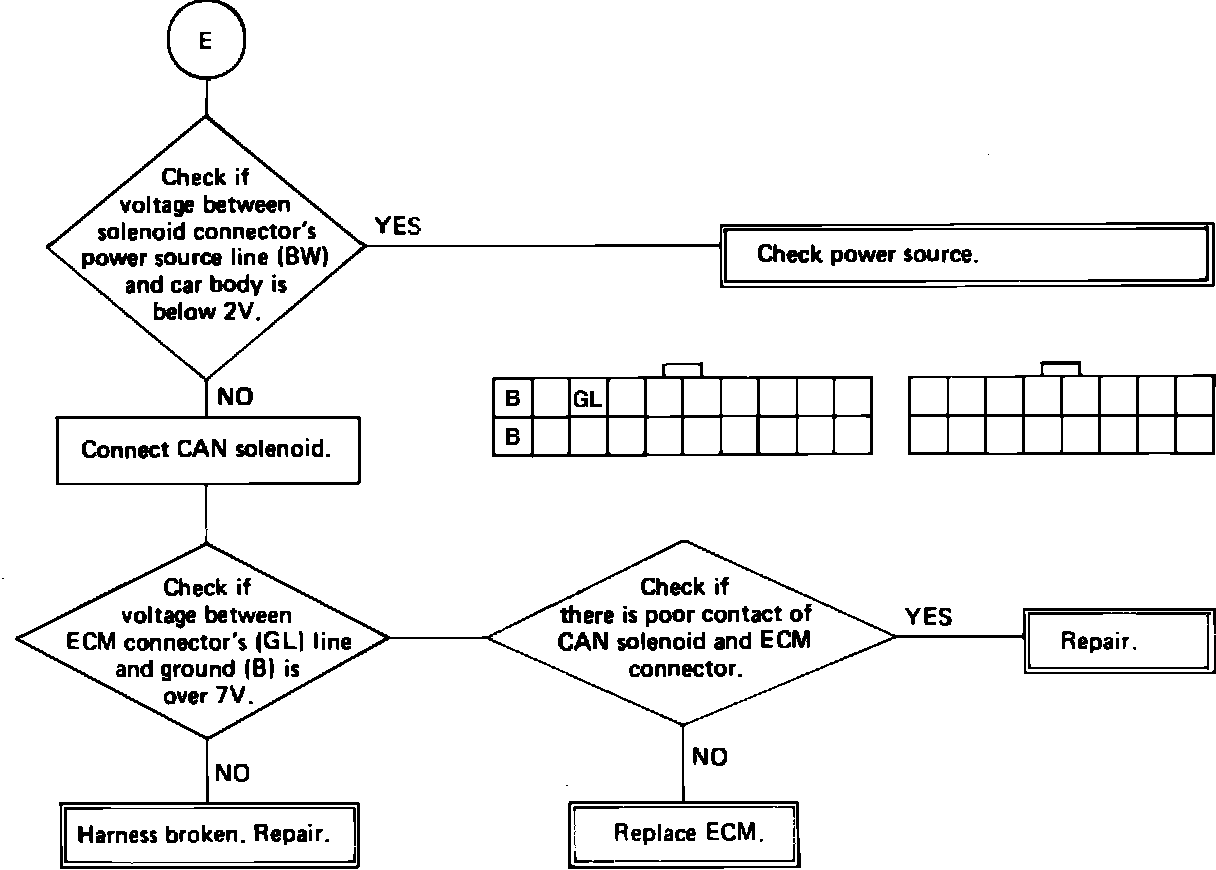

Fig. 35b Electronically controlled carburetor diagnostic chart. Trouble code 35.:
