DTC 32

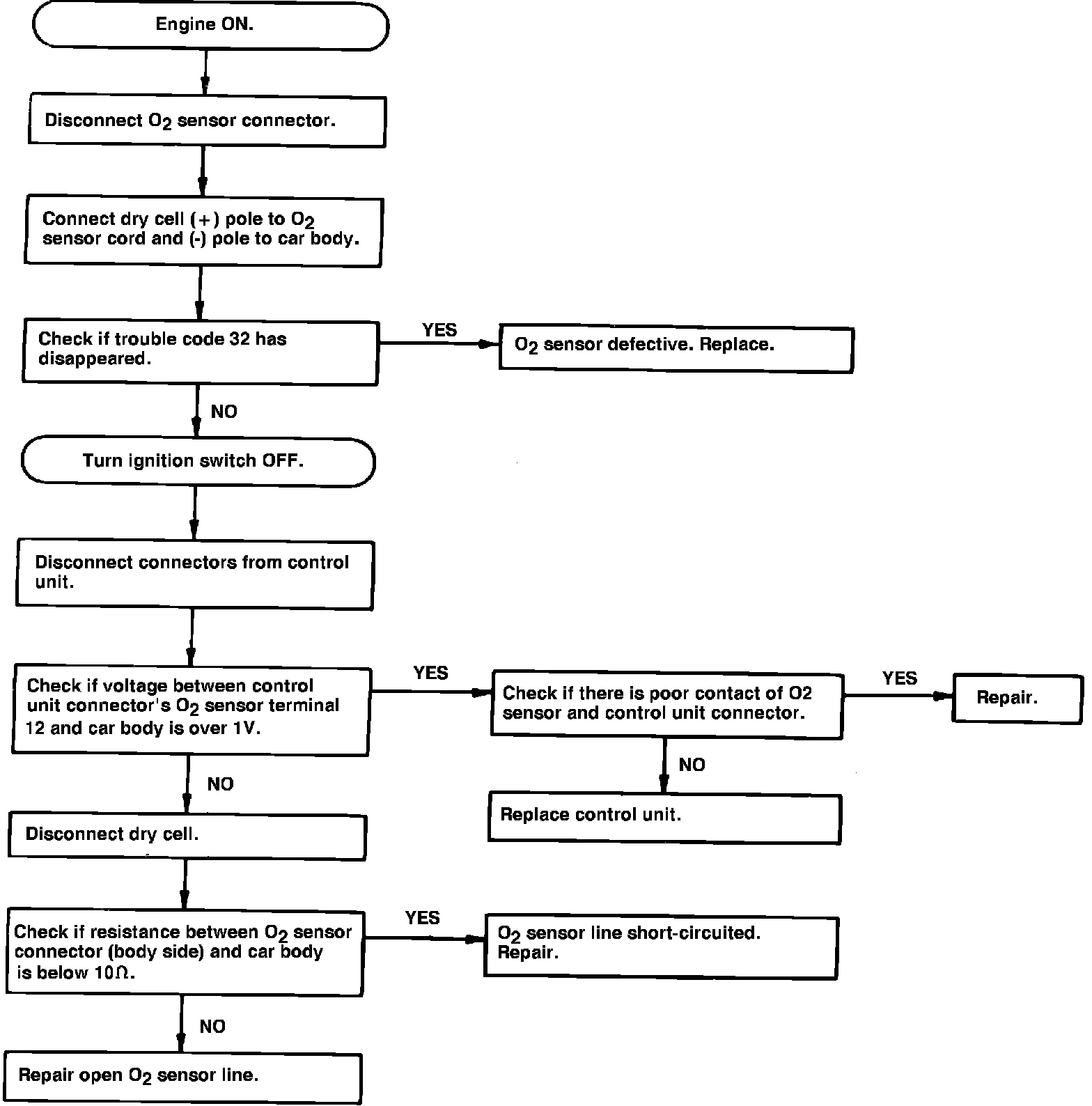

Fig. 50 Electronically controlled carburetor diagnostic chart. Oxygen sensor (trouble code 32).:
