A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 63
DTC 63

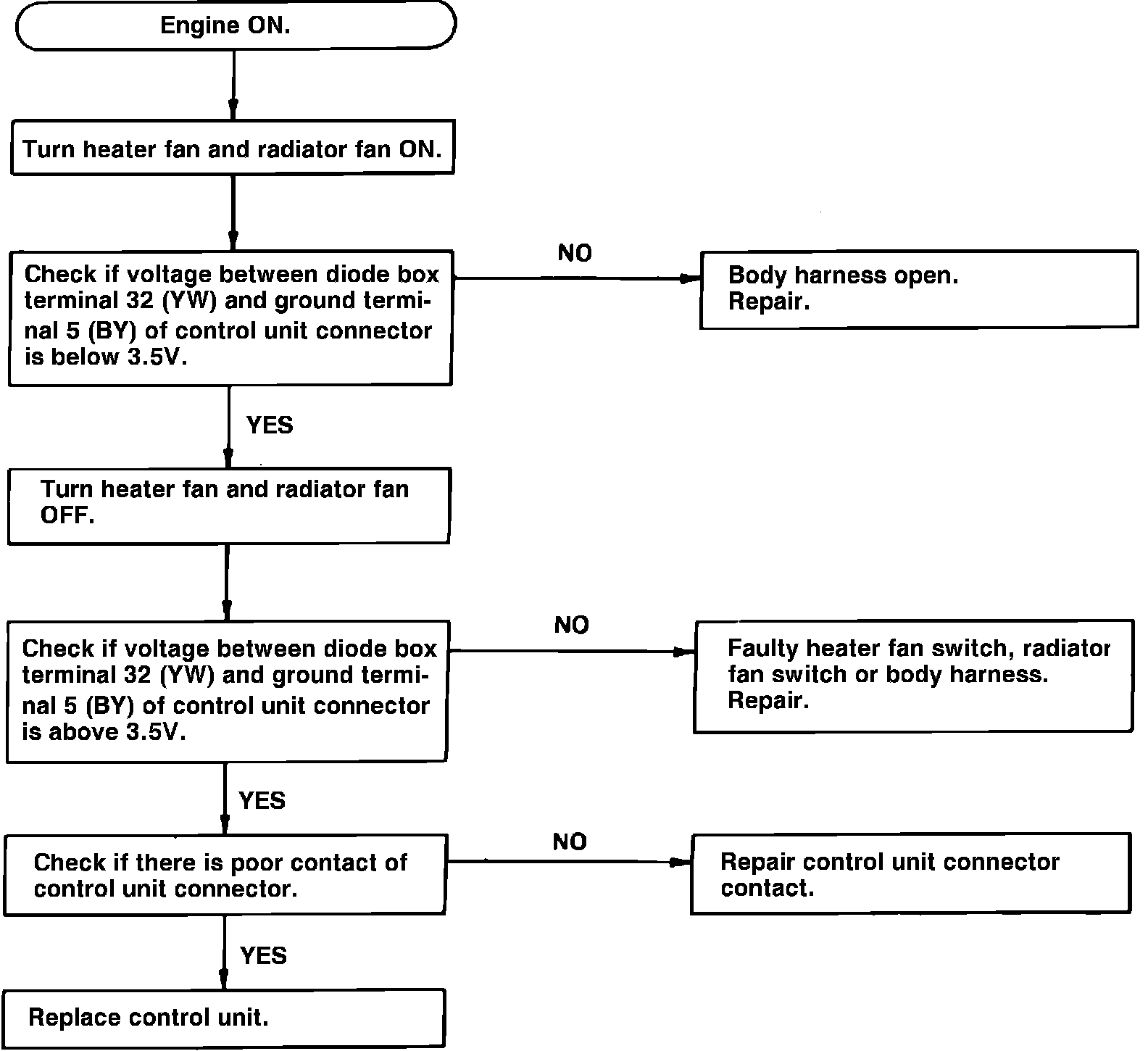

Fig. 54b Electronically controlled carburetor diagnostic chart. Idle-up system (trouble code 62).:
