Operation CHARM
: Car repair manuals for everyone.
Home
>>
Subaru
>>
1988
>>
Justy Hatchback 2WD L3-1189cc 1.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

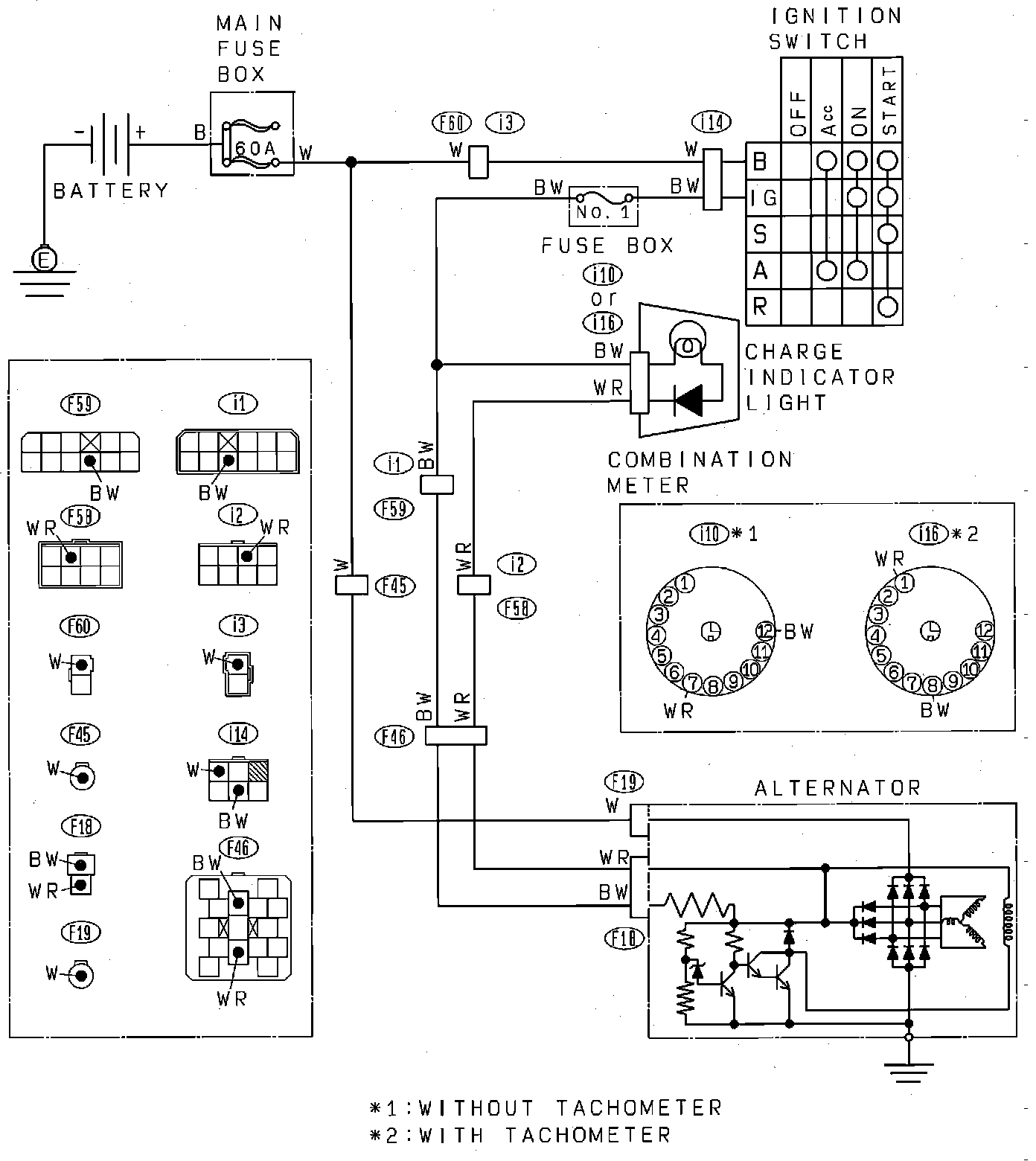

Charging System Wiring Circuit:
