Subaru
>>
1988
>>
Justy Hatchback 2WD L3-1189cc 1.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition System
Ignition System

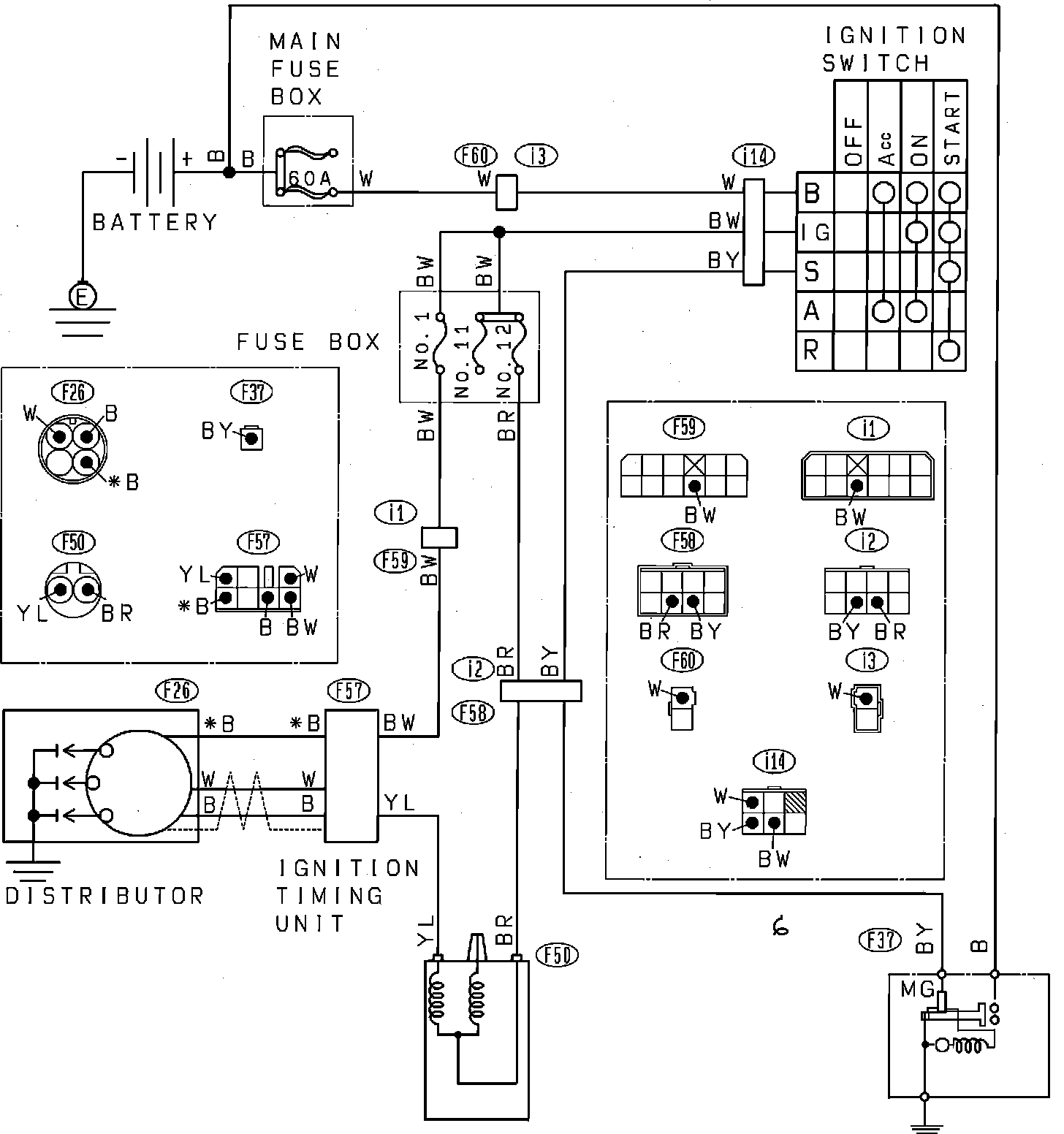

Ignition & Starting Wiring Circuit:
