Justy Hatchback 2WD L3-1189cc 1.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Oil Pressure Gauge
Oil Pressure Gauge

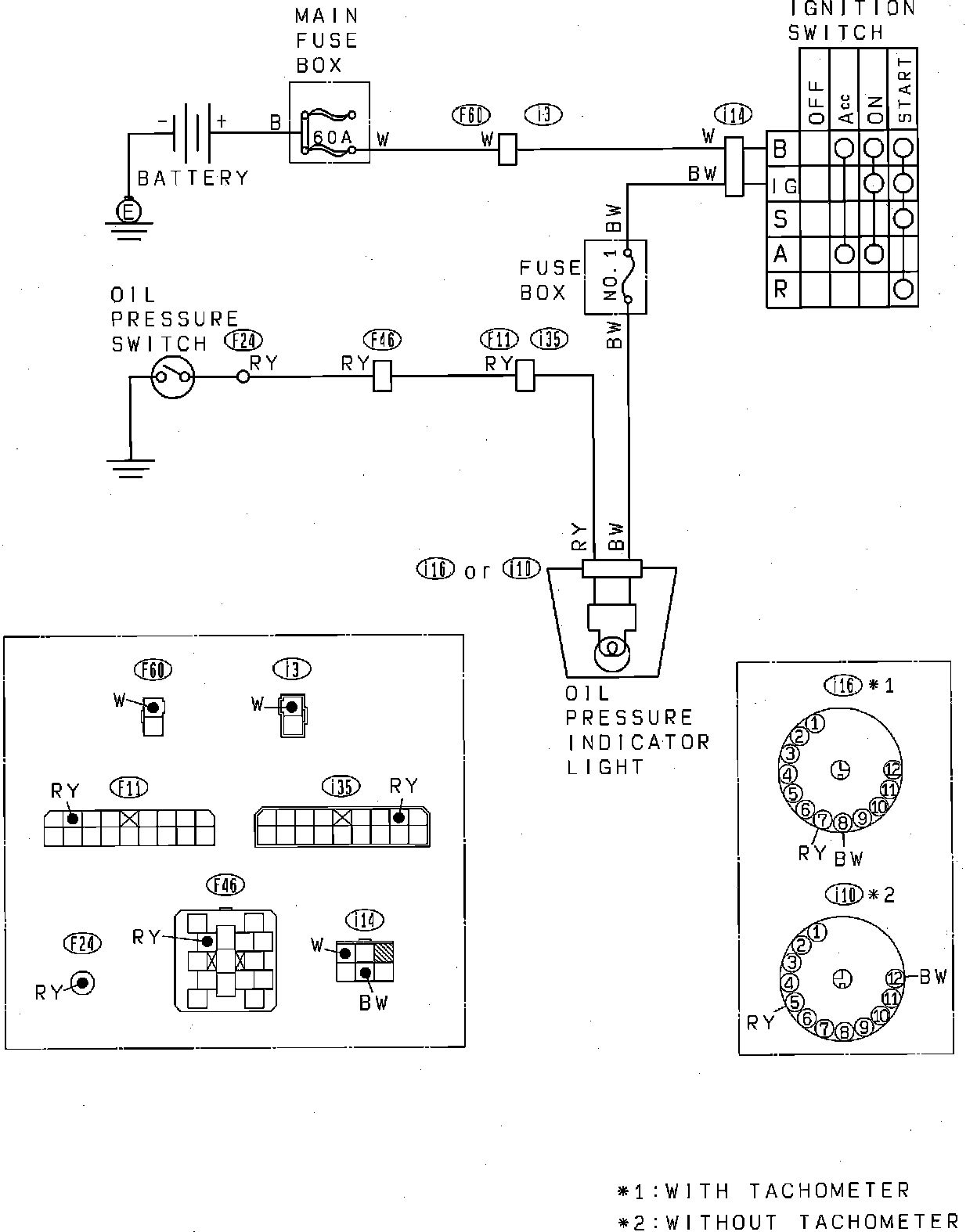

Oil Pressure Indicator Light Wiring Circuit:
