A/C Kit - Supplemental Installation Instructions
87subaru03NUMBER: 15-48-87
DATE: 12-03-87
APPLICABILITY
1988 4WD JUSTY
SUBJECT: ACCESSORY AIR CONDITIONING INSTALLATION SOA332A109
When installing an A/C Kit on a 1988 4WD Justy, it is necessary to reroute the three vacuum solenoid hoses located under the intake manifold. This is to prevent a possible vacuum hose-to-compressor interference during A/C installation on 4 WD equipped vehicles.

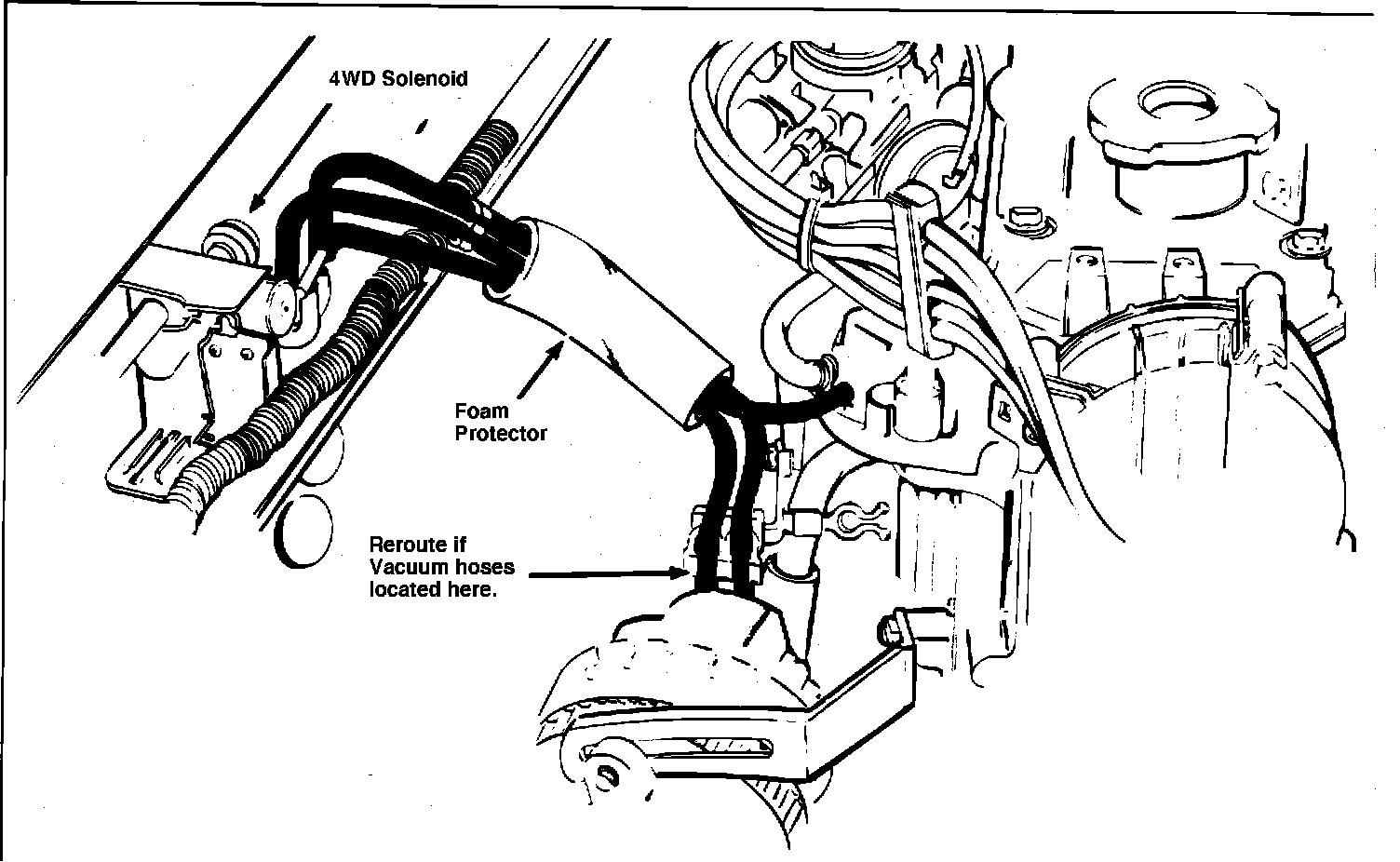

FIGURE 1:
FIGURE 2:
Shown below in figure 1 and 2, are the supplemental instructions included with the SOA332A109 A/C Kit.
These instructions to be used when installing SOA332A109 Justy A/C Kit on Justy 4WD vehicles ONLY.
ATTENTION: Use only if vehicle has 4WD solenoid vacuum hoses routed through compressor mounting area, as shown in Figure 1. Otherwise, use of these instructions is not necessary.
FIGURE 2:
1 . Disconnect hoses (1), (2), and (3) from 4WD solenoid and discard foam protector.
NOTE: Mark hoses to avoid mix up during re-installation.
2. Reroute hose (1) under A/C pipes as shown in Figure 2.
3. Reroute hoses (2) and (3) under A/C pipes, intake manifold, and water pipe as shown.
NOTE: Insure Vacuum hoses do not rub on body or engine parts and readjust if necessary.
