Service Manual - Corrections

FIGURE 1 - ENGINE:

87subaru1

01-103-87 NUMBER


DATE 04-22-87
APPLICABILITY ALL JUSTY MODELS

SERVICE MANUAL CORRECTIONS


THIS BULLETIN IS FOR INFORMATION ONLY
The following corrections need to be added to the 1987 Subaru Justy Service Manual:


1.) Section 2-3, page 13, the tightening torque for the crankshaft bolt and the location of the pilot bearing are missing. See corrected Figure 1 attached.

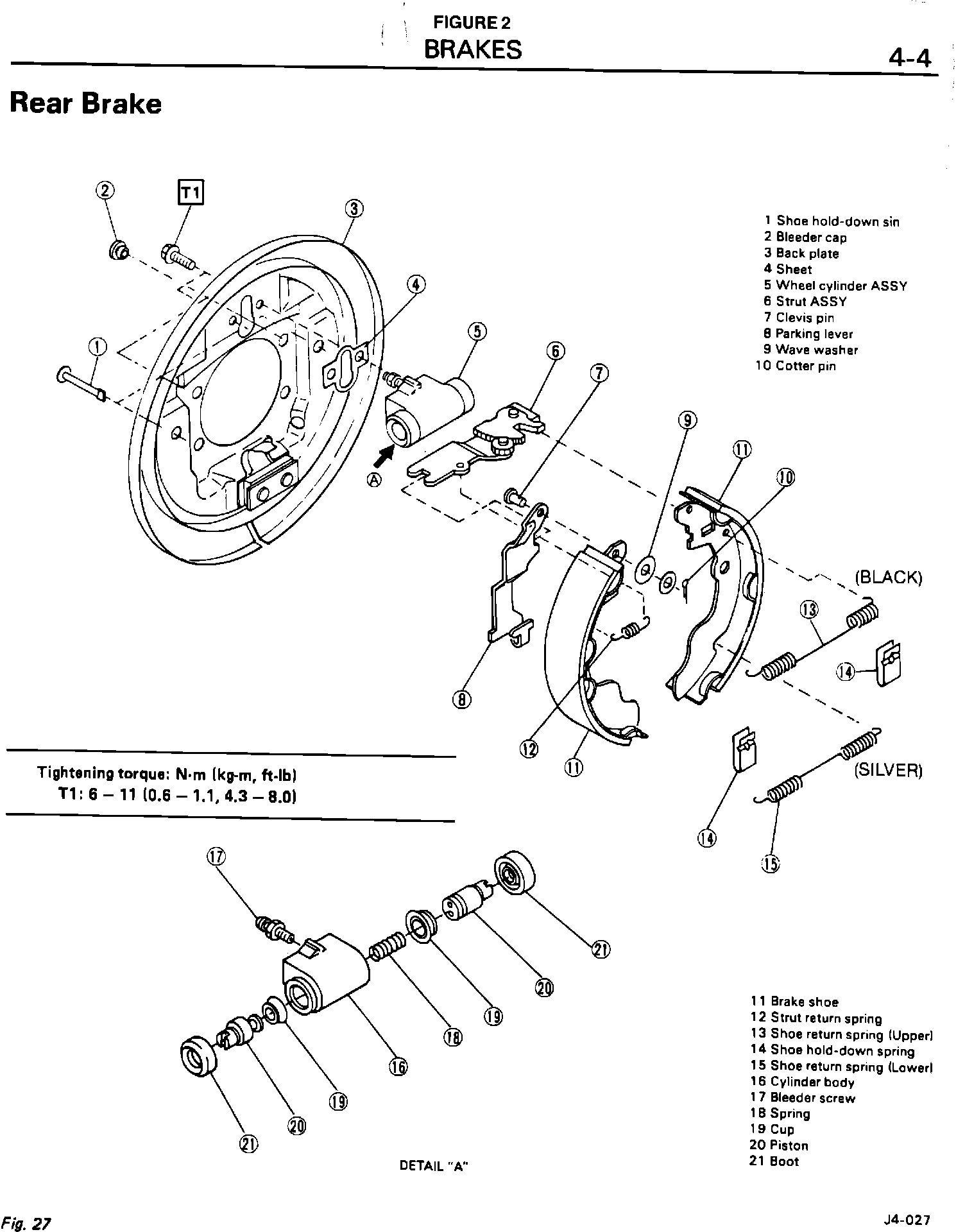

FIGURE 2 - BRAKES:

2.) Section 4-4, page 13, items #13 and #15 brake shoe return spring upper and lower are different in size and color. See corrected Figure 2 attached.
