Service Manual Correction - Trouble Code 52

NUMBER 01-113-89


DATE 05-17-99

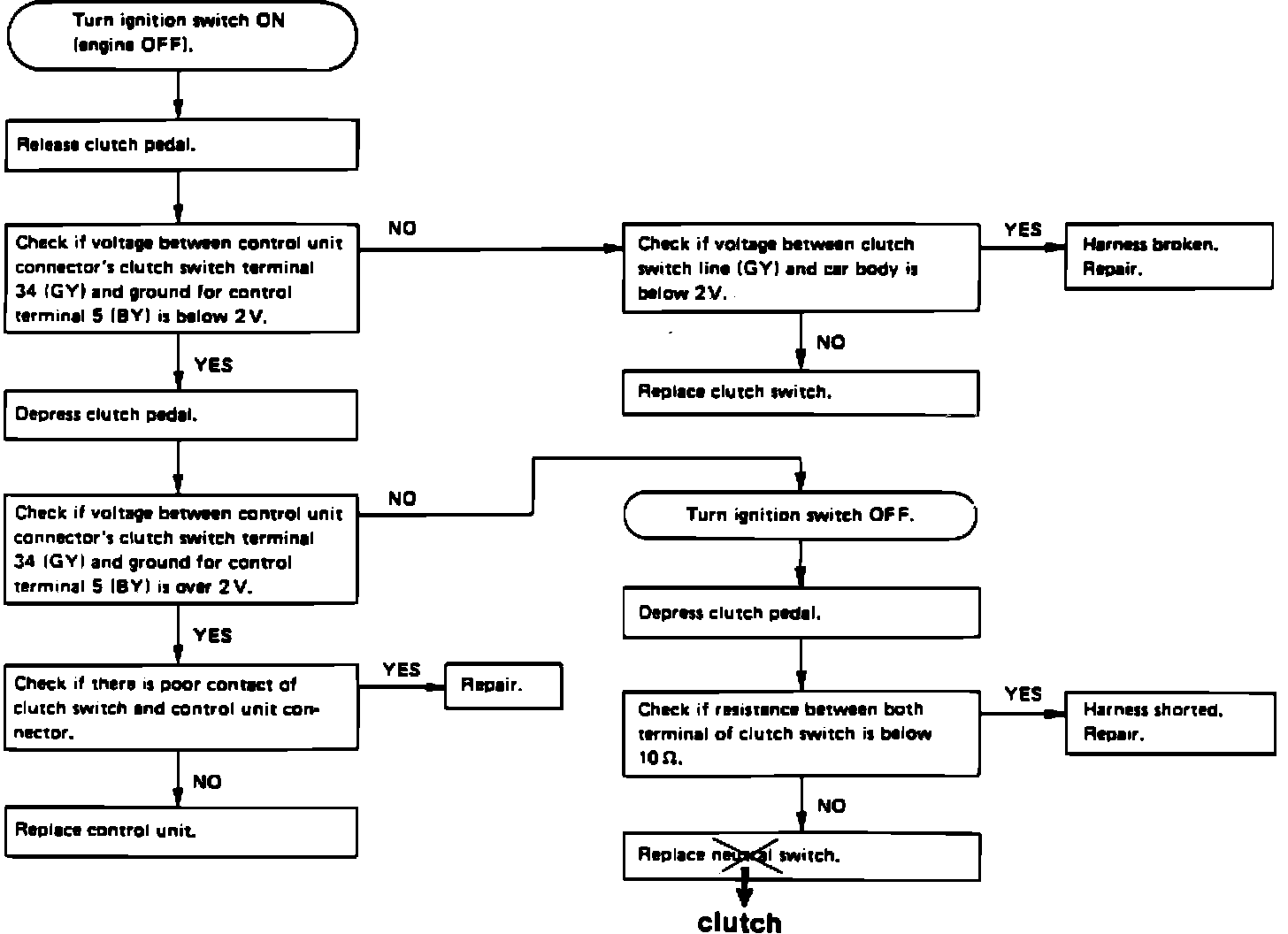

FIGURE 1:




1988 & 1989 JUSTY SERVICE MANUALS

SUBJECT: TROUBLE CODE 52 - CLUTCH SWITCH


THIS BULLETIN IS FOR INFORMATION ONLY


The following correction needs to be made to 1988 and 1989 Justy Service Manuals concerning Trouble Code 52 - Clutch Switch. It is located in the 1988 manual (publication no. G404BE 7/87 A) in section 2-1, page 41. It also appears in the 1989 manual (publication no. G406BE 10/88 B) in section 2-1, page 57. See figure 1.
