DTC 15

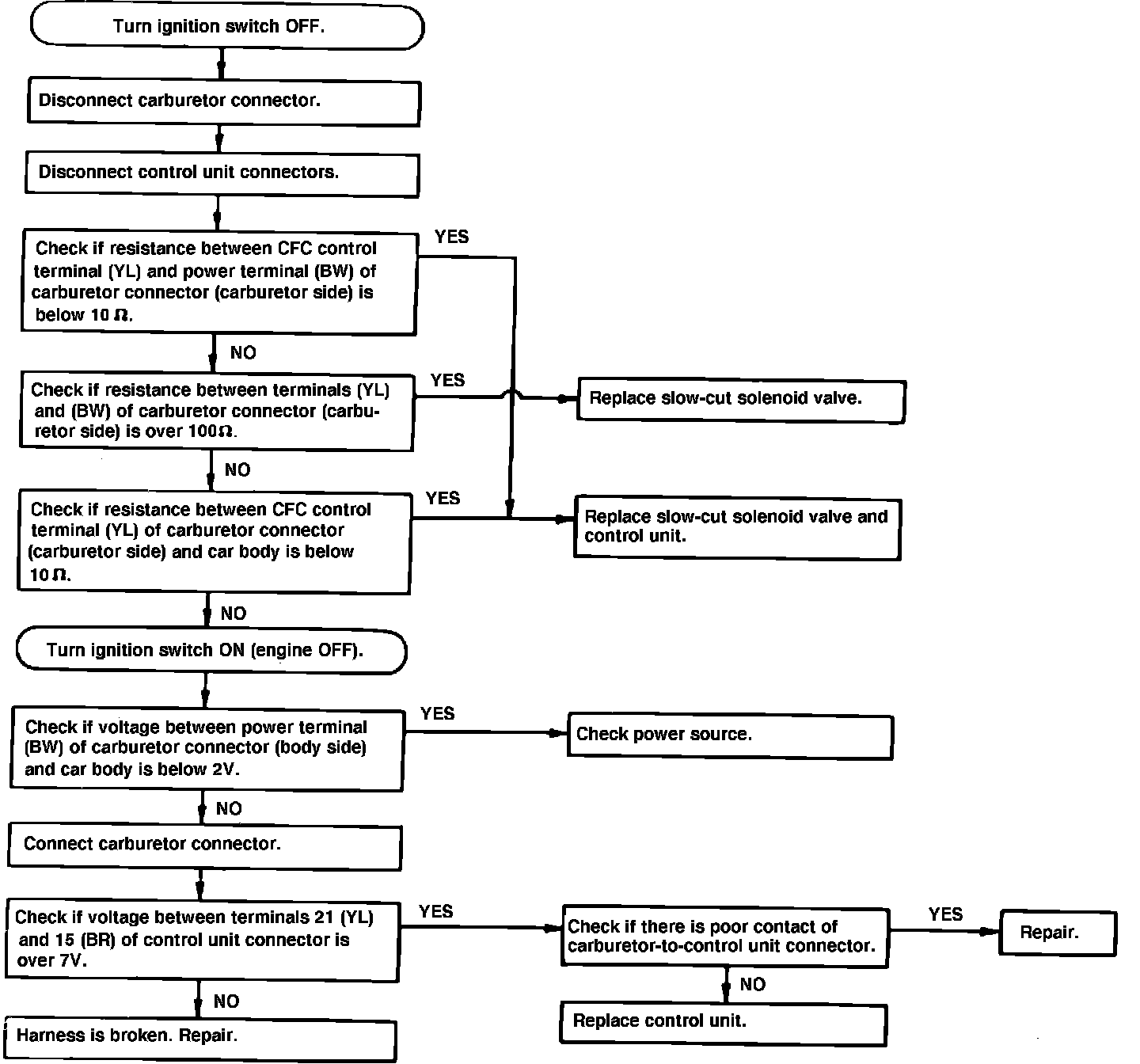

Fig. 44 Electronically controlled carburetor diagnostic chart. CFC system (trouble code 15).:
