Brake Warning Indicator
Brake Warning Indicator

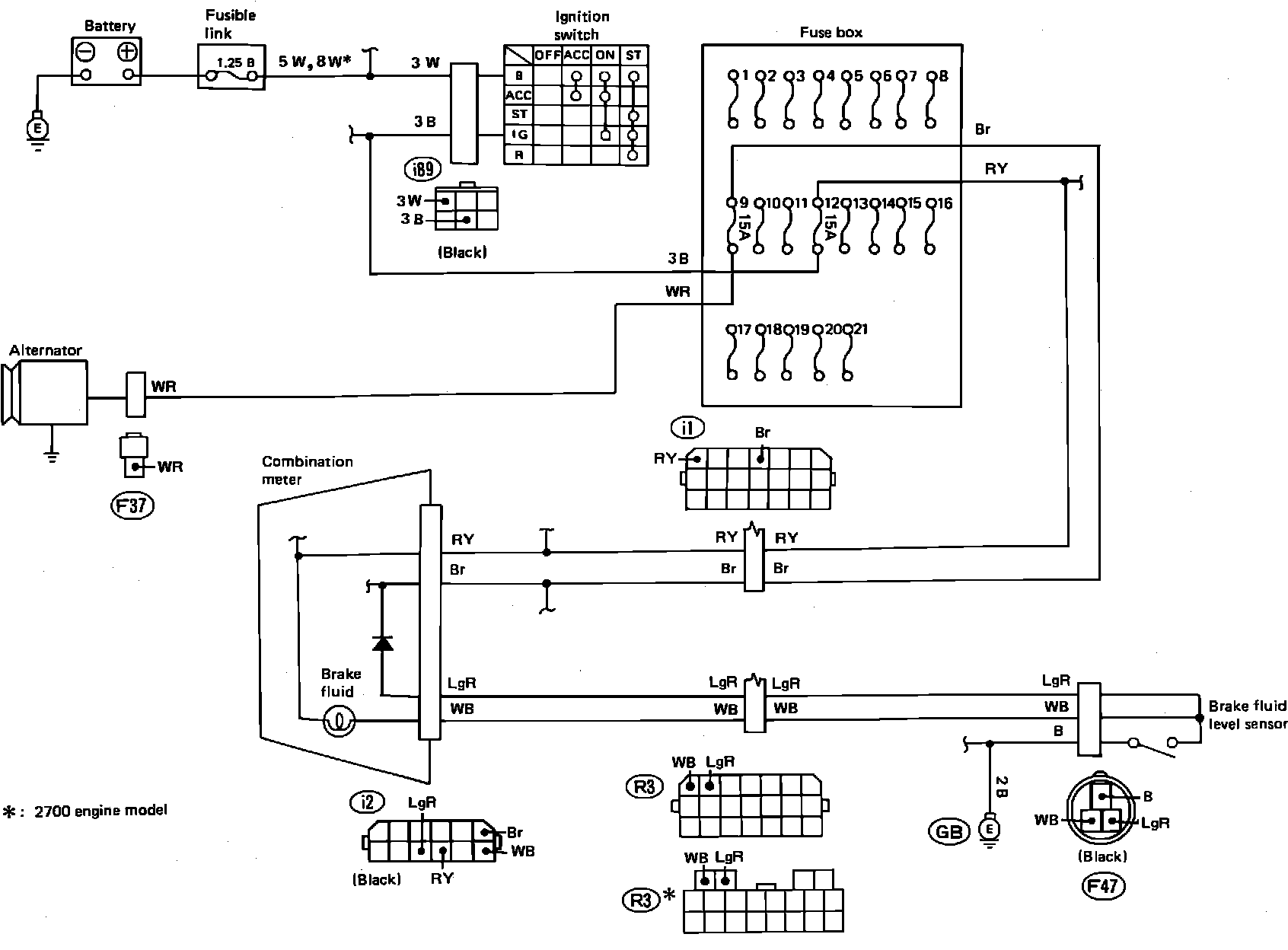

Brake Fluid Level Warning Wiring Circuit:

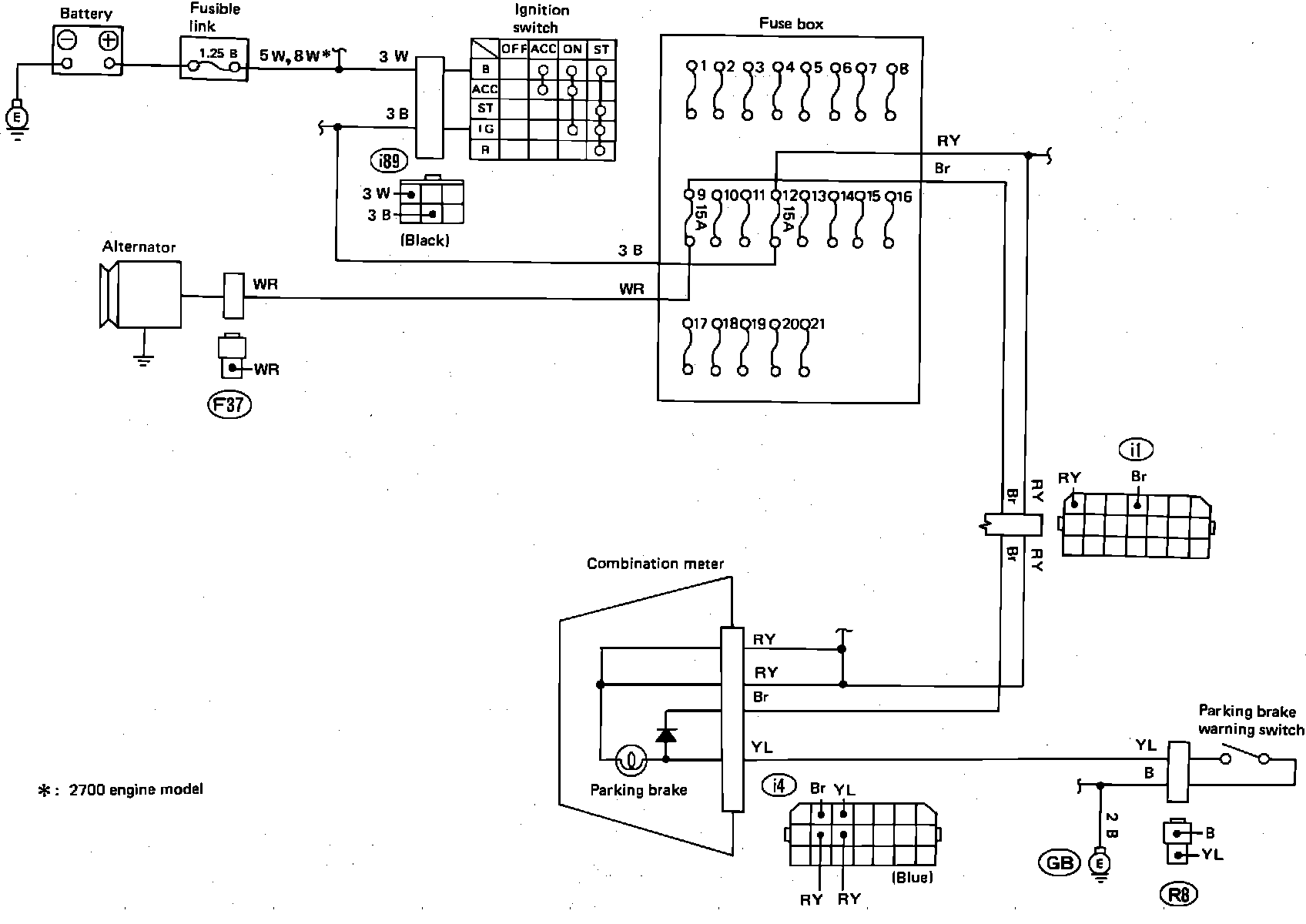

Parking Brake System Wiring Circuit:
