Accessory Changes and Revisions
89subaru01NUMBER: 15-68-89
DATE: 03-13-89
APPLICABILITY ALL 1989 MODELS
SUBJECT: ACCESSORY CHANGES AND REVISIONS
This bulletin includes updates which have been made to 1989 accessories and includes application charts.
Air Conditioning Systems
a. Changes that will affect the A/C kit for station wagon, 4DR sedan, 3DR coupe, and XT models.
1. The basic A/C kits will remain the same. See the A/C Application Chart.
b. The A/C kit for the 89 Justy has been completely revised. P/N SOA332A110, see the A/C Application Chart.
1. The Justy A/C kit changes are as follows:
- The condenser has the receiver dryer attached and is larger in size for more efficient heat transfer. An electric cooling fan attaches to the front of the condenser.
- No pulser assembly.
- Compressor hoses have a different routing to aid serviceability.
Radio-Cassette
a. Changes that will affect radio/cassette installation into station wagon, 4DR sedan, 3DR coupe, and XT models.
1. A new base line cassette deck called the "Classic" will feature auto reverse. Fits L-Series and XT Models. P/N SOA416E104.
2. A new mid-line cassette deck called the "Premium" will feature automatic tape search, metal capability and illuminated controls. This unit will have application to LSeries and XT. P/N SOA416E115.
3. Top line E.Q. cassette will remain the same. P/N SOA333E131.
4. The Justy AM/FM combo cassette unit has been modified to plug directly into the vehicle's wiring harness. P/N SOA333D125 which fits only '89 Justy models. The old unit P/N SOA333D115 will fit '89 models using adapter P/N SOA333E305.
5. The Justy antenna lead will be routed down the "A" pillar on the driver's side under the carpeting and up behind the glove box on the passenger side.
6. The memory connector must be connected to properly test the radio-cassette combo and cassette players on L-series and Justy models. This procedure should be performed at PDI. Refer to Service Bulletins 15-56-88 for L-series and 15-66- 88 for Justy.
Cruise Control
a. Same as 1988 applications and features.
Fog Lights
a. Changes and revisions for 1989 include:
1. Bracket adapter kit P/N SOA385J205 will be required to adapt Justy fog light kits P/N SOA385J115 clear and P/N SOA385J116 amber to fit '89 Justy models.
Roof Rack
a. Changes and revisions for 1989 include:
1. Justy roof rack P/N SOA367F115 will fit '89 models using a new template.
2. The touring wagon roof rack P/N is SOA367F114 and is available in black epoxy - coated finish only.
Front End Cover
a. All new for 1989.
1. L-series and XT models are available in a two piece design which allows access to the engine compartment without removing the cover. This cover will fit L-series P/N SOA448L107 and XT P/N SOA448L108.
Body Side Moulding
a. New for 1989 DL Justy
1. P/N SOA449L103 fits all DL Justy models - black only.
Wheel Covers
a. New for 1989 DL L-series models and 1989 Justy changes.
1. Starburst wheel cover P/N SOA4721101 fits all L-series and XT models except XT6.
2. The 12" Justy wheel cover P/N 723832101 will only fit '87 - '89 DL Justy models. GL models use 13" wheels.
3. Only use the OEM style hubcap on GL Justy models. The Venture and Starburst wheel covers will not properly fit the 1989 Justy rim type.
Floor Mats
a. New for all 1989 models.
1. Carpeted floor mats made of 13 oz. nylon carpet
2. Slip resistant backing
3. Rubber Subaru logo
5. Two part numbers blue and gray; one size fits L-series and XT models.
6. One part number for gray mats fits all Justy models.
b. Deluxe floor mats previously called Luxus mats carry over from 88 MY to '89 MY. See the Application chart.
NOTE: Rear window dust deflector P/N SOA461L100 will not fit '89 Justy models.

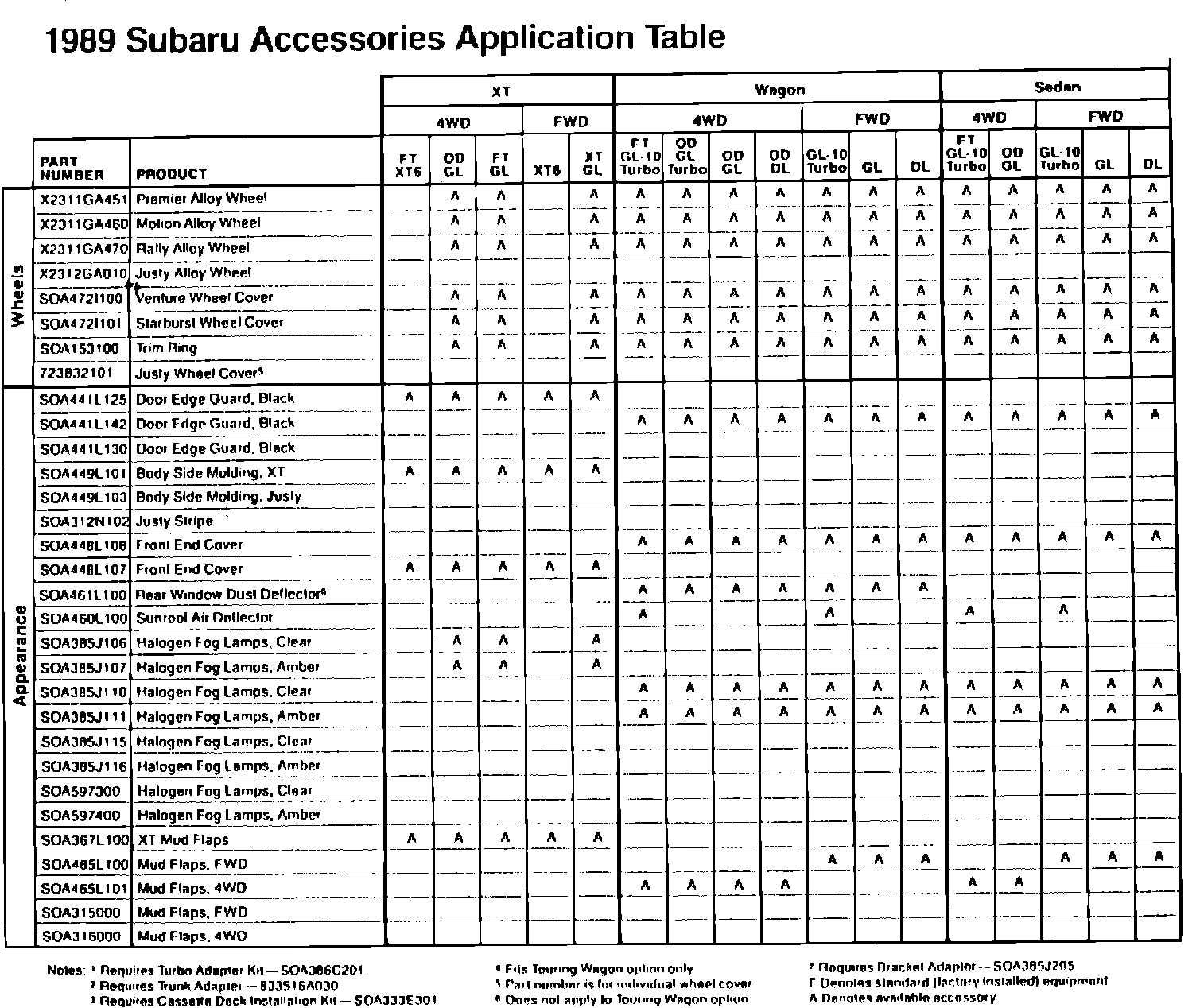

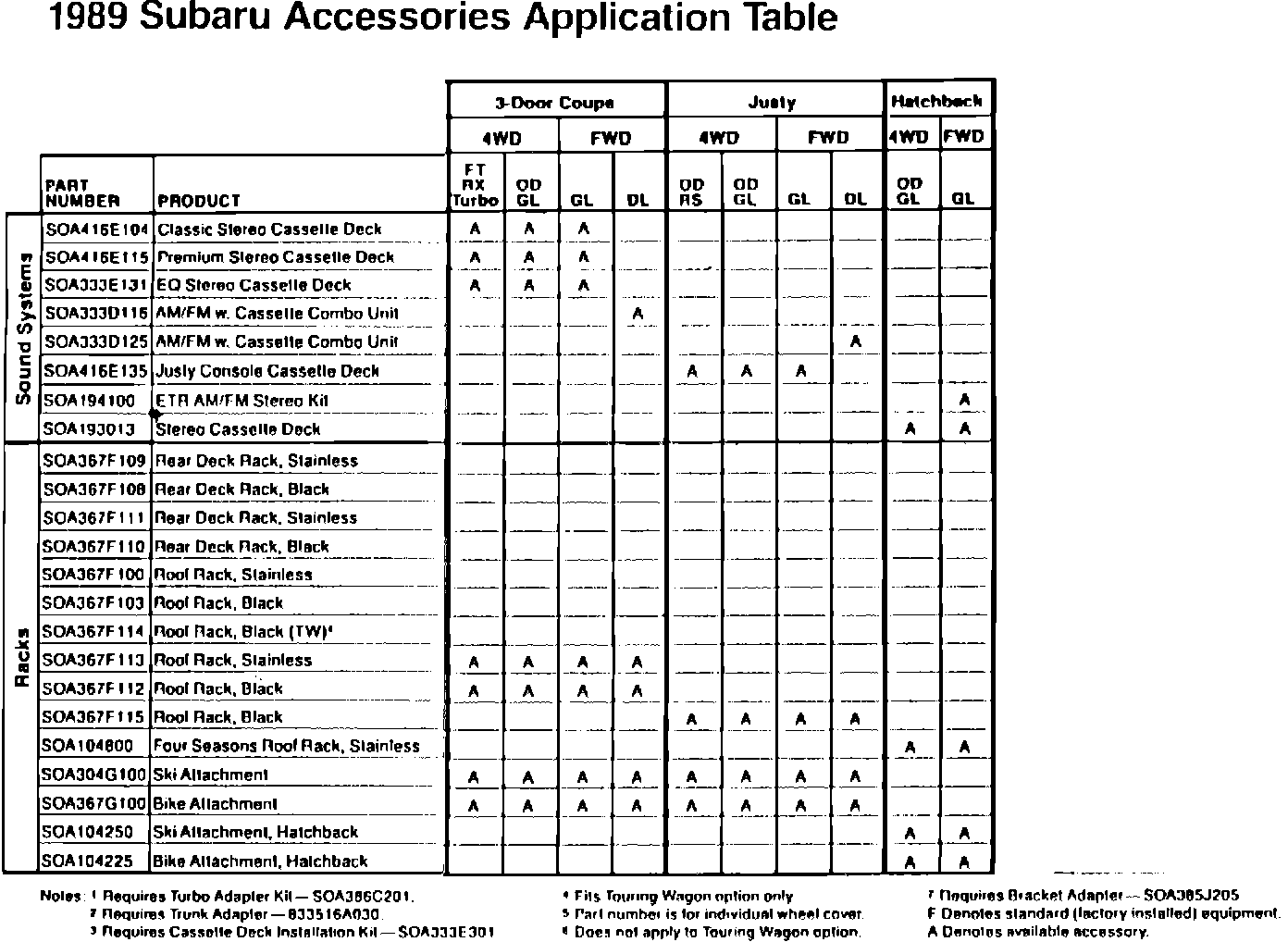

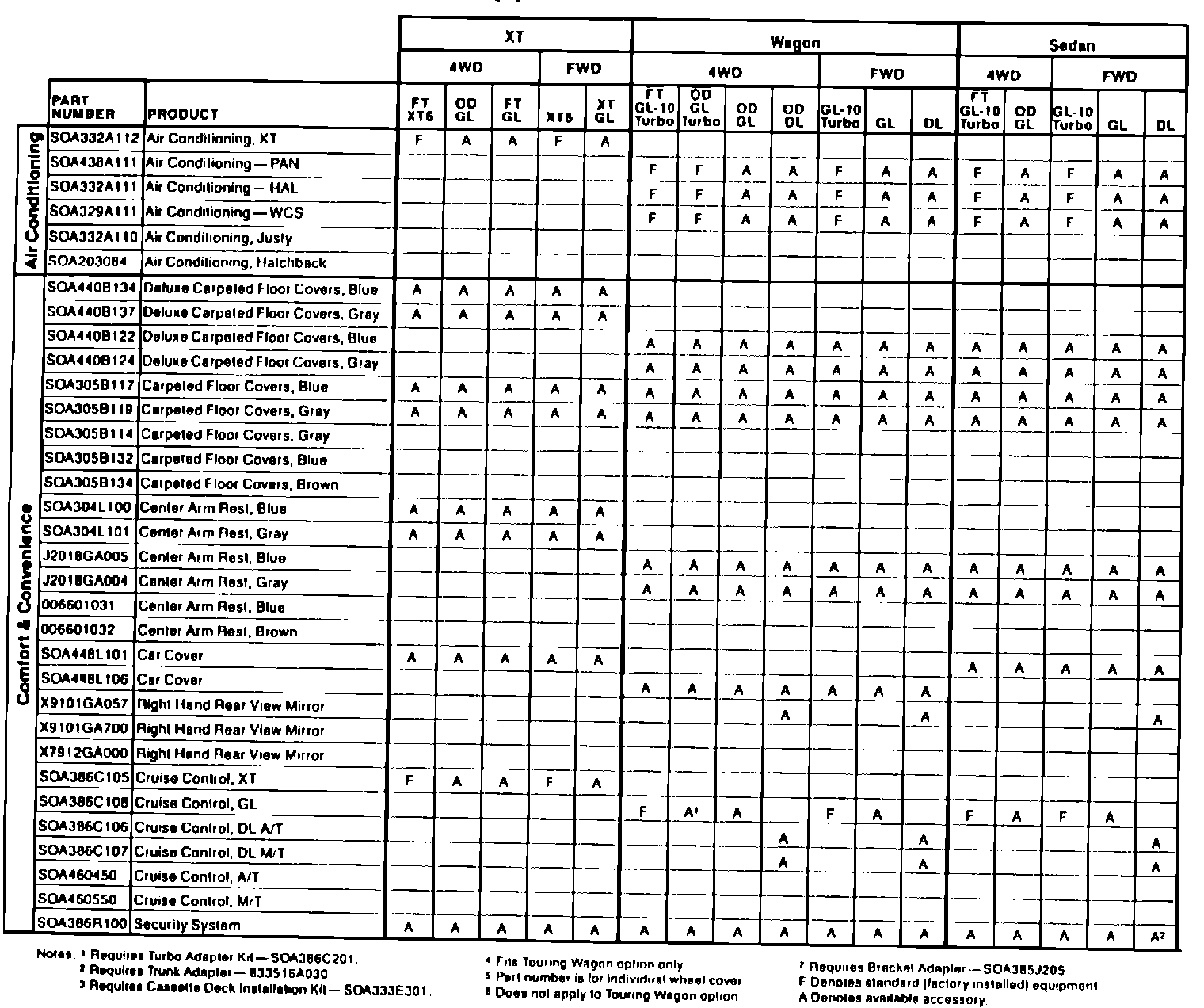

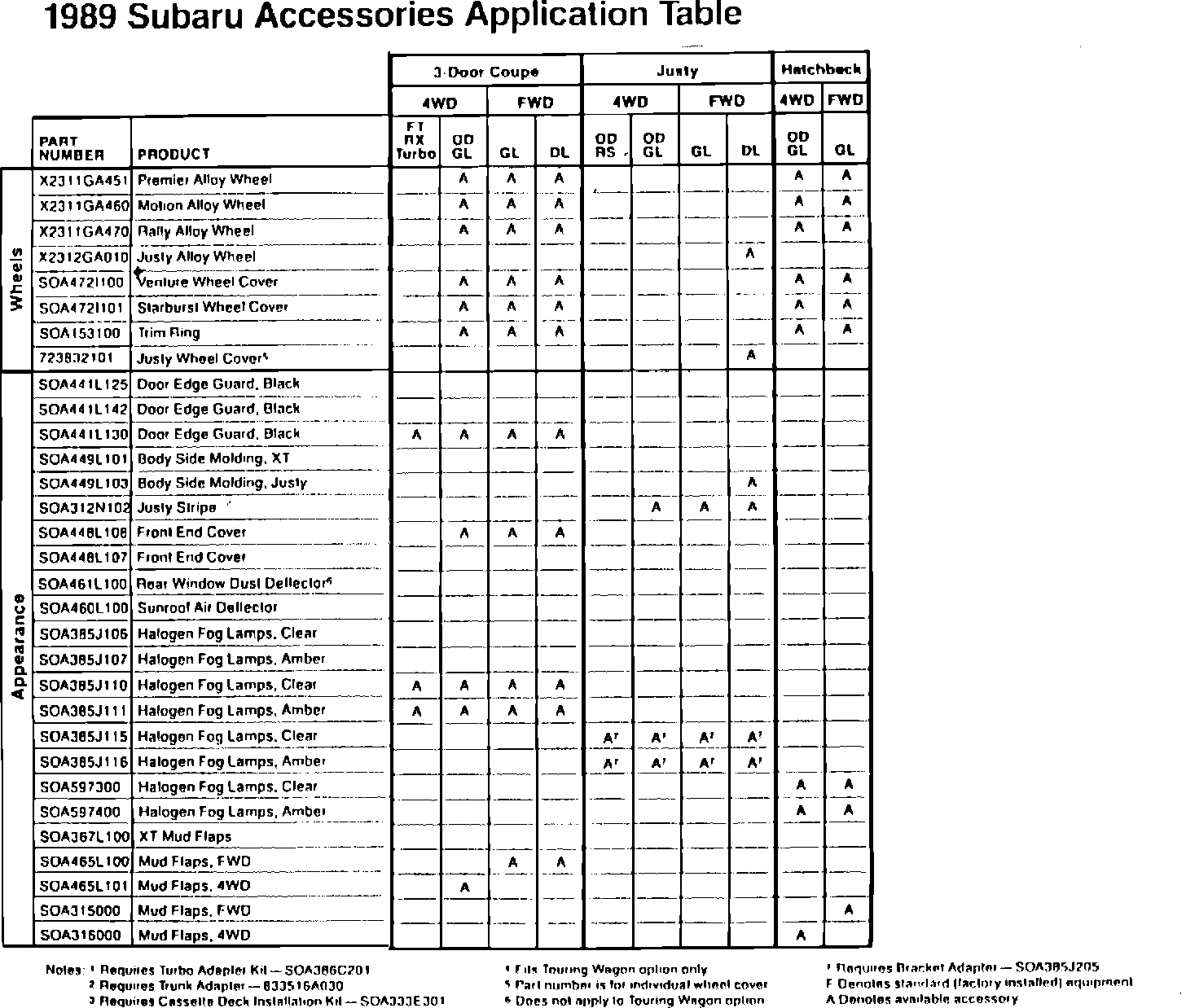

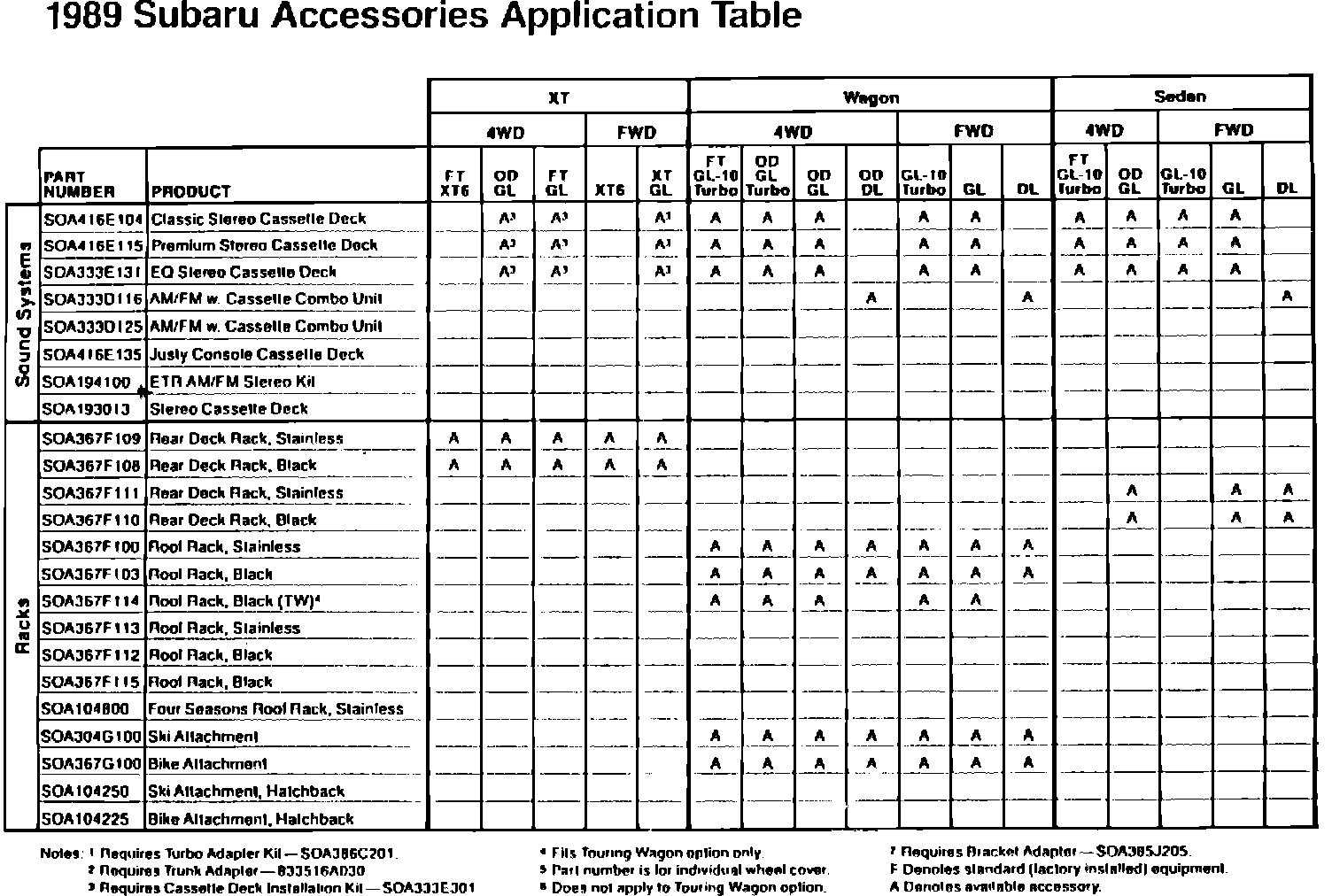

1989 Subaru Accessories Application Table
