Operation CHARM
: Car repair manuals for everyone.
Home
>>
Subaru
>>
1989
>>
Justy Hatchback 4WD L3-1.2L SOHC (Carb)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Cluster / Carrier
>>
Electronically Controlled Variable Trans (ECVT) Models
Electronically Controlled Variable Trans (ECVT) Models

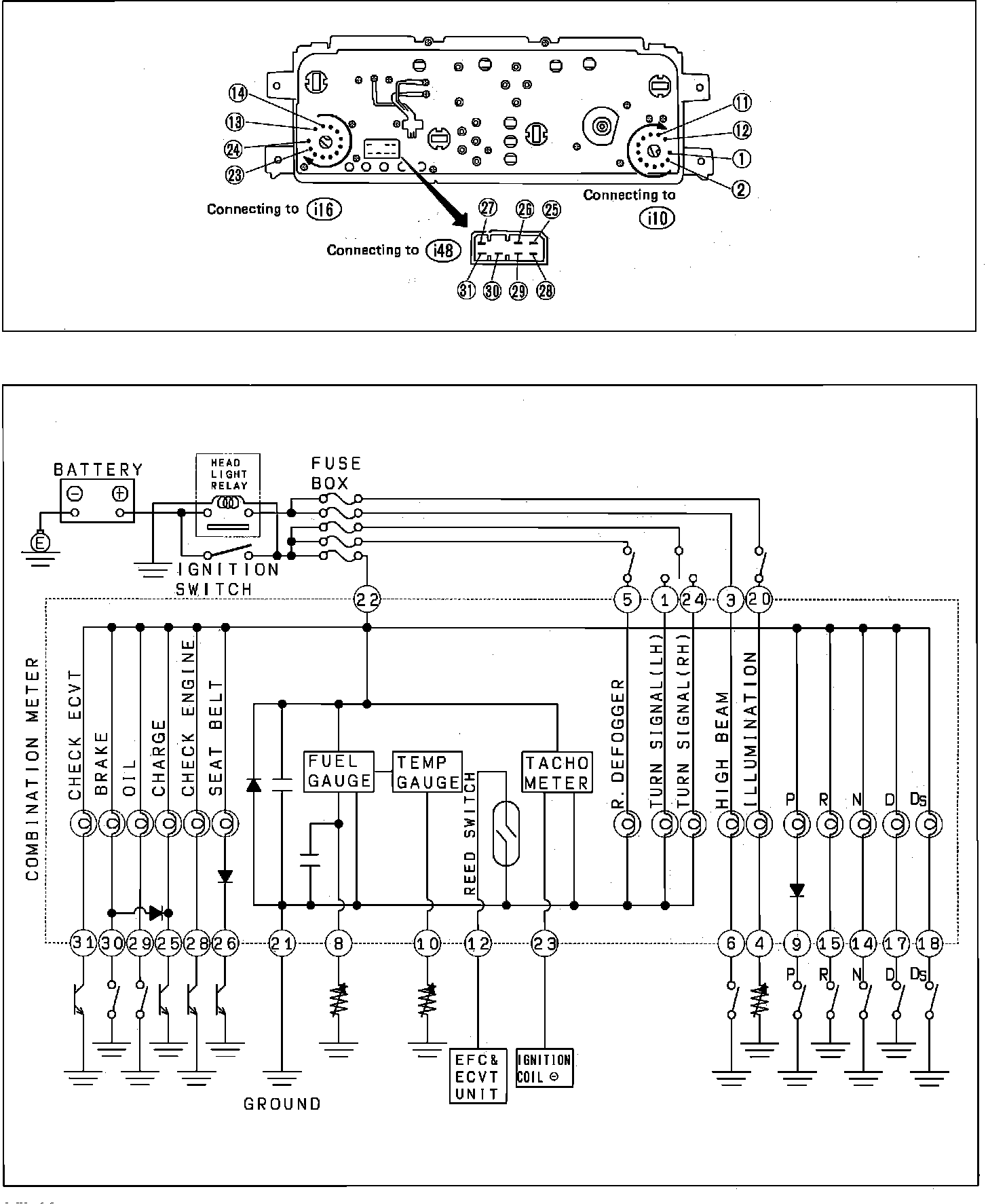

Instrument Panel Wiring (ECVT Models):
