Fuel Pump: Testing and Inspection

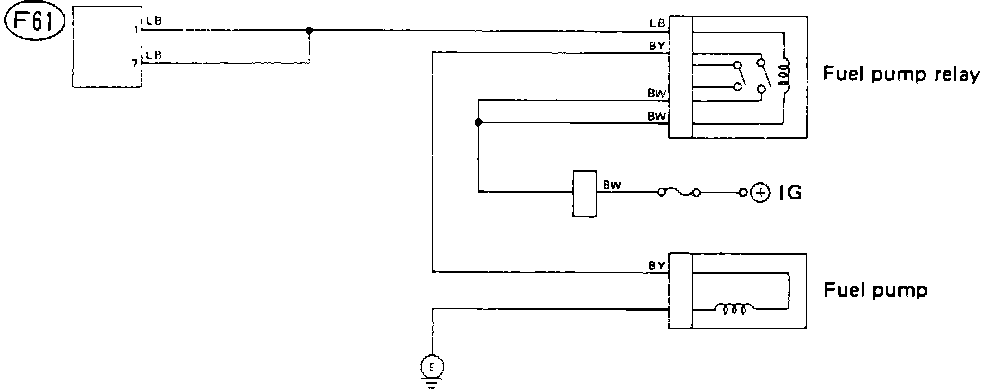

Wiring Diagram:

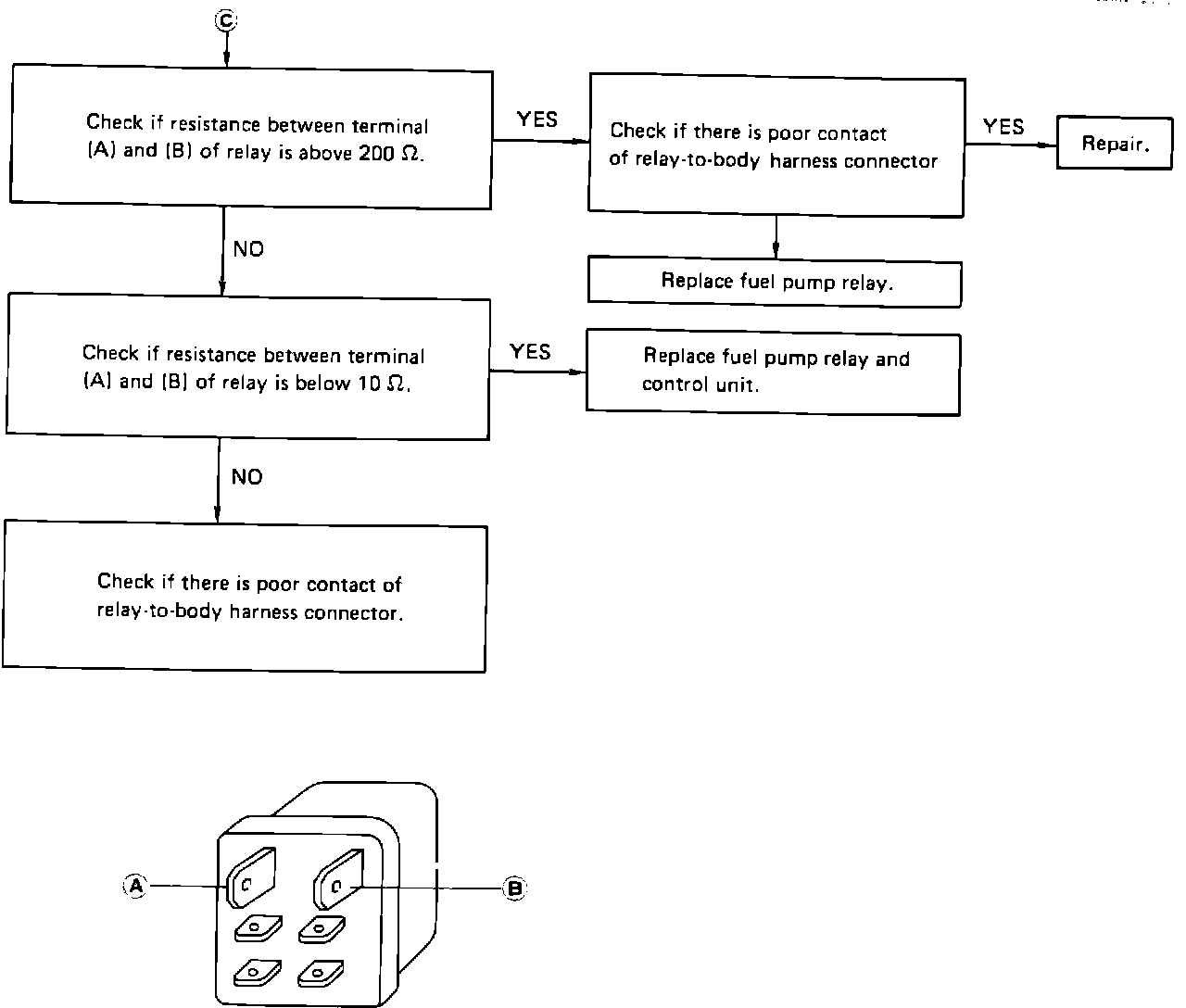

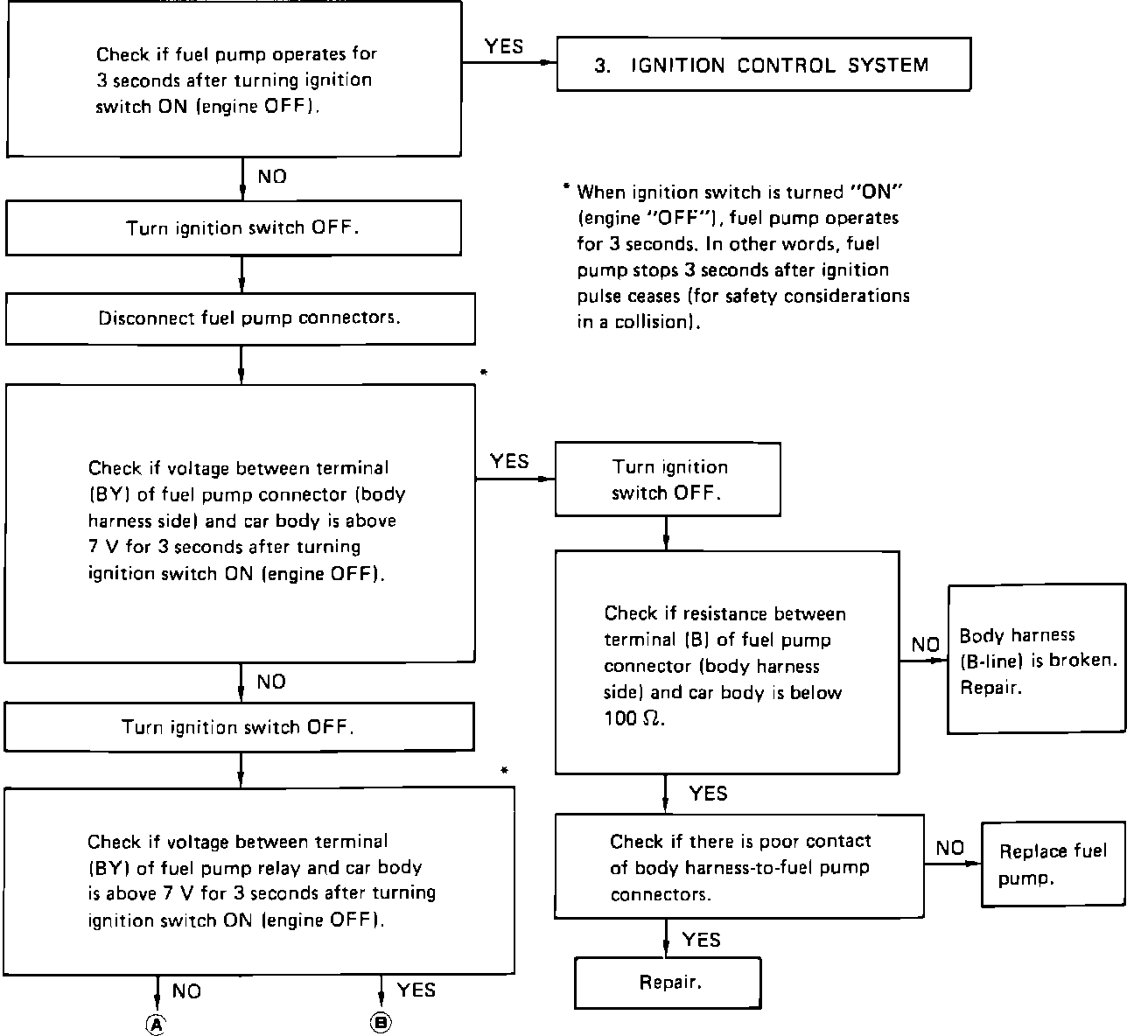

Diagnostic Chart:

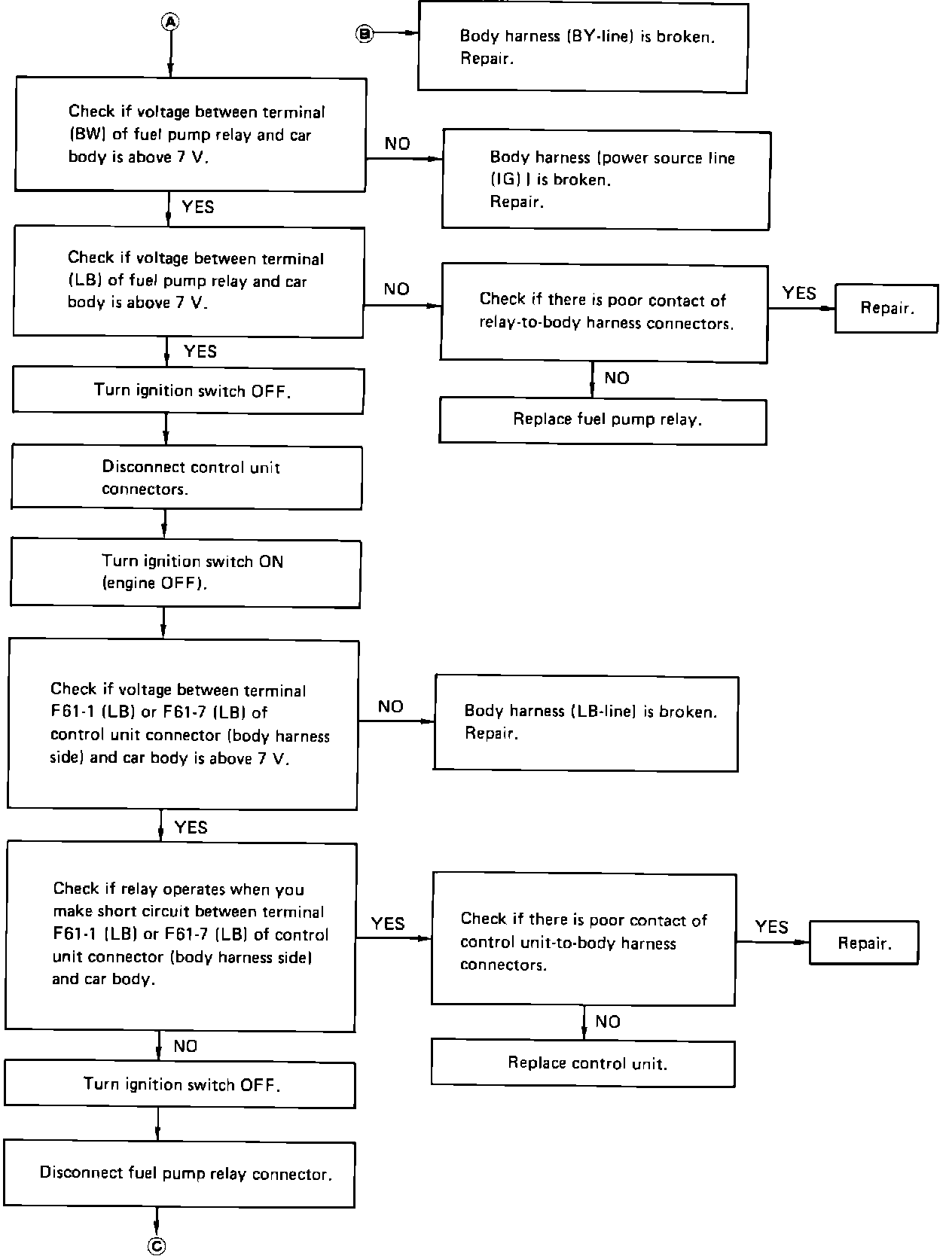

Diagnostic Chart:
Diagnostic Chart:
