Operation CHARM
: Car repair manuals for everyone.
Home
>>
Subaru
>>
1989
>>
XT-6 2WD L6-2.7L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Computers and Control Systems
>>
Wiring Diagram
Wiring Diagram

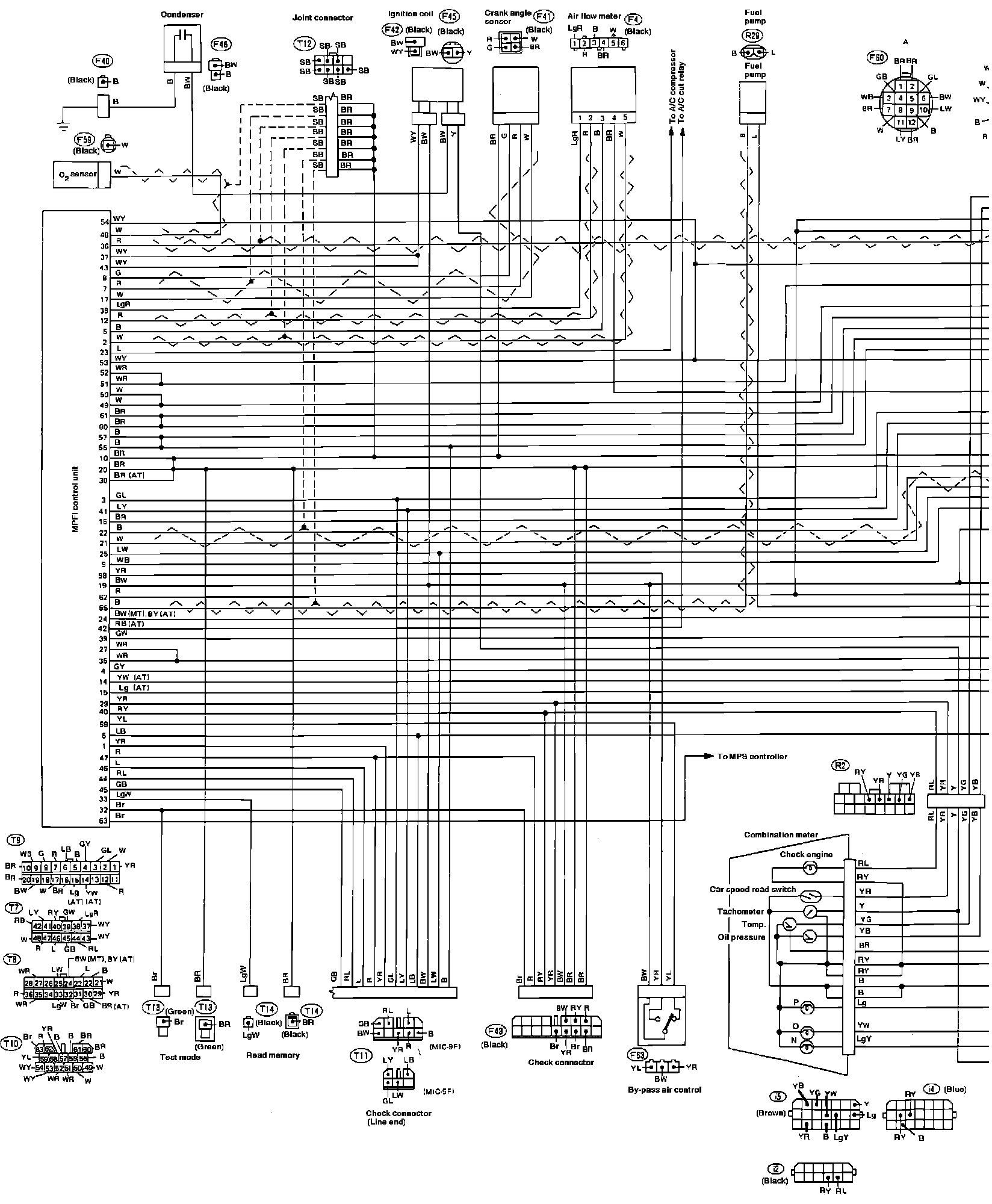

Q�fFuel & Emission Control Computer System:
