Operation CHARM
: Car repair manuals for everyone.
Home
>>
Subaru
>>
1991
>>
XT-6 2WD L6-2.7L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
System Electrical Diagnosis
System Electrical Diagnosis

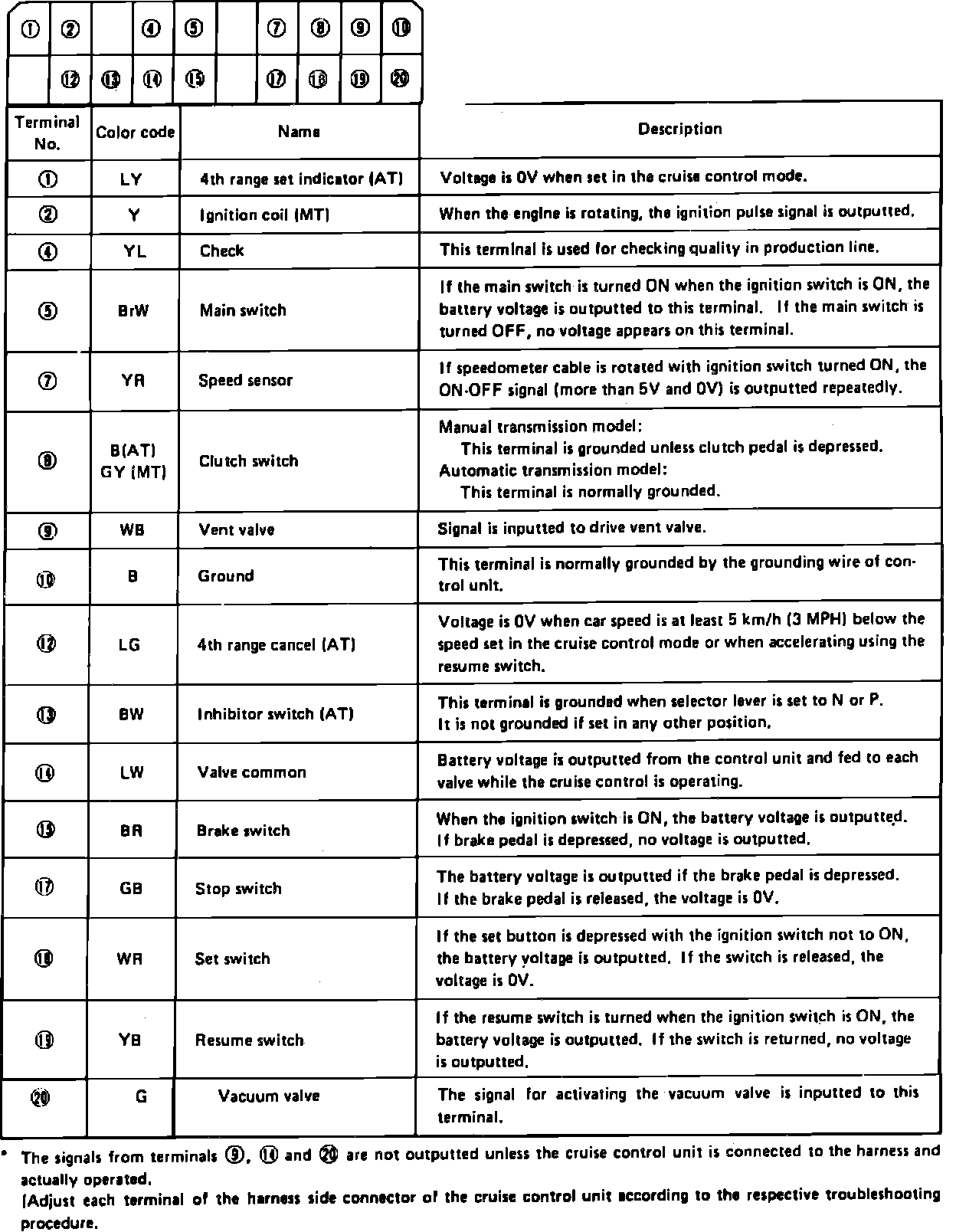

Fig. 7 Electrical Connector Specifications:
