XT-6 2WD L6-2.7L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>

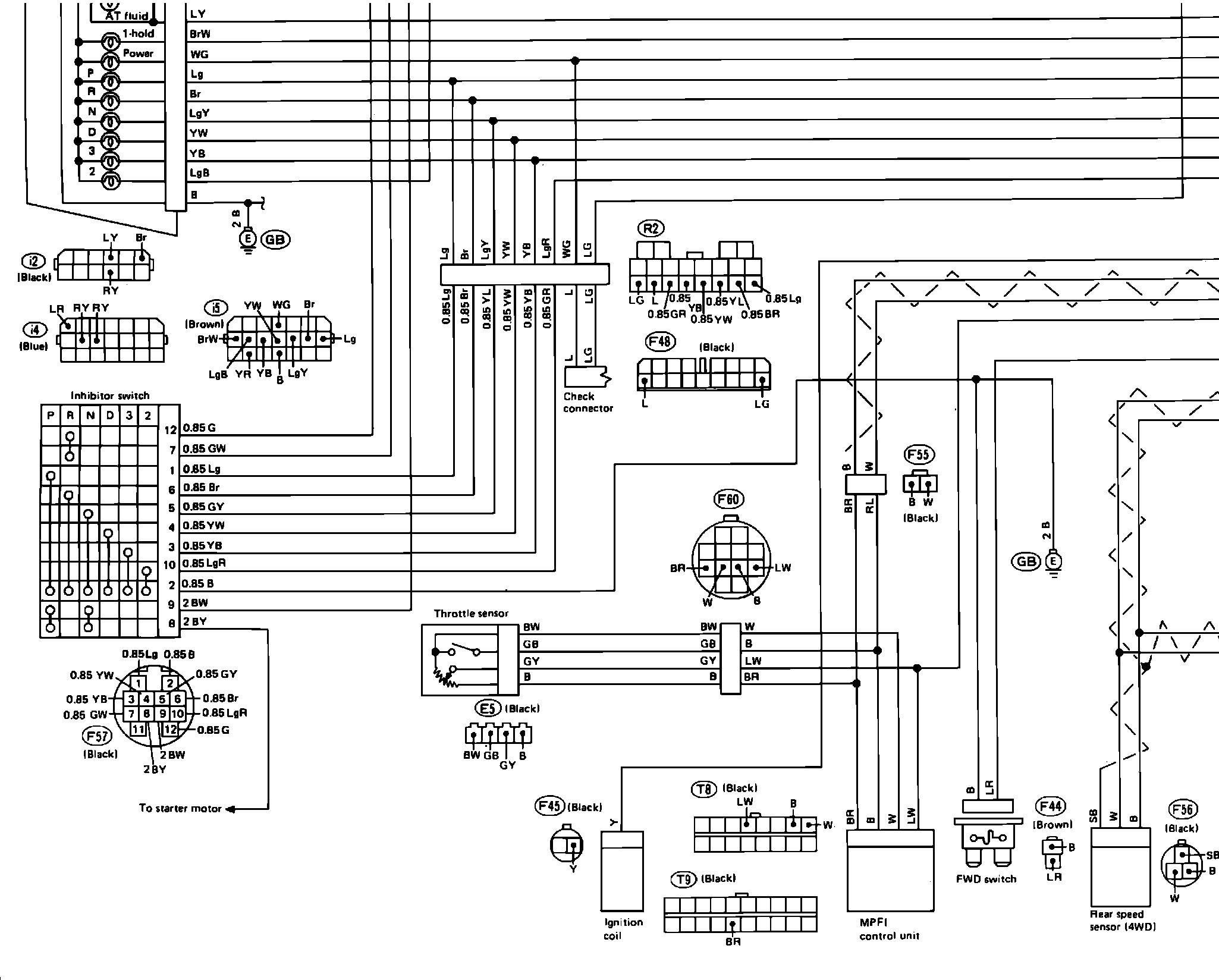

System Diagram
System Diagram
���*@�*ye�*Automatic Transmission Control:
