Operation CHARM: Car repair manuals for everyone.
Home >> Subaru >> 1991 >> XT-6 2WD L6-2.7L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

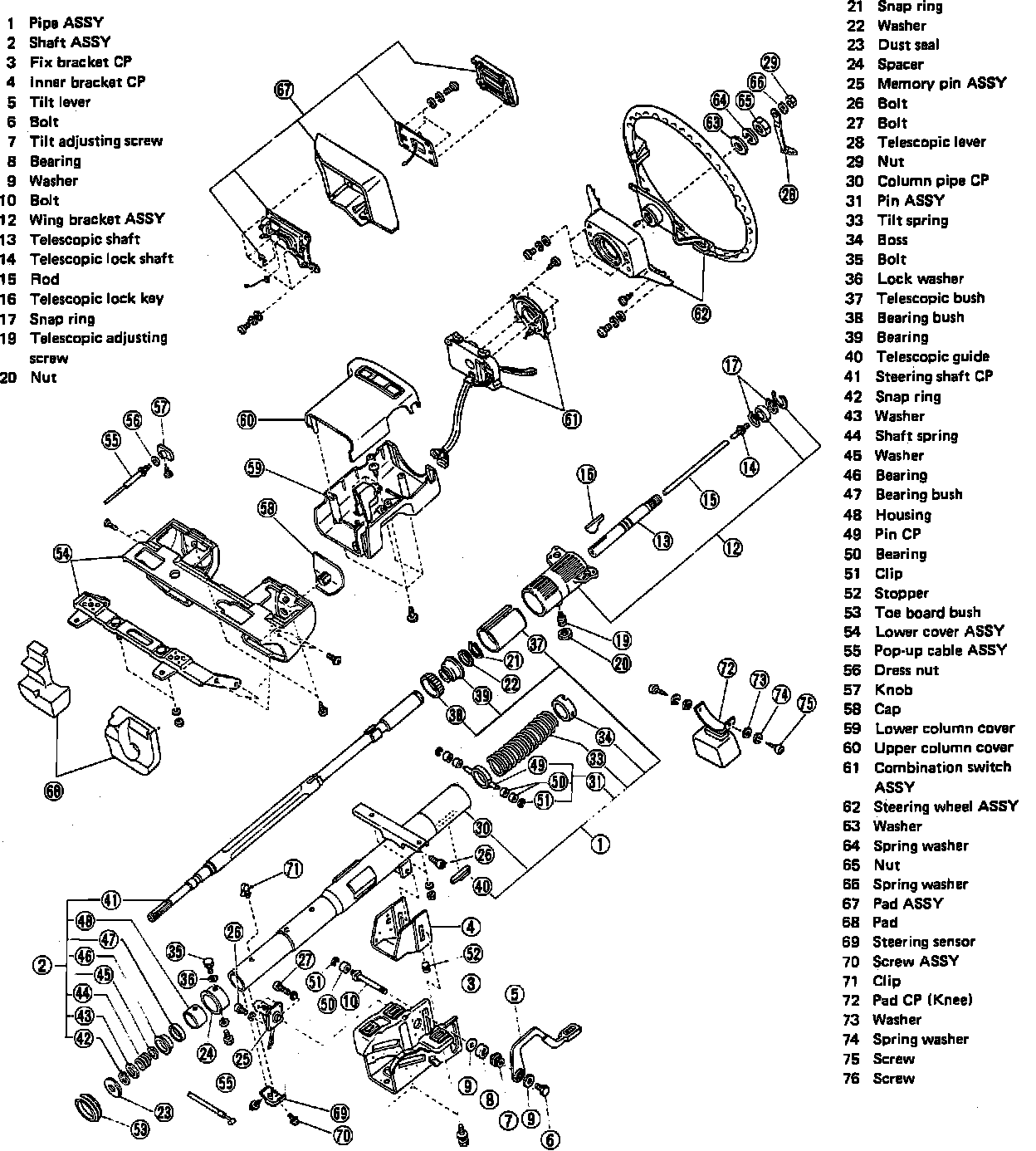

Fig. 4 Exploded View Of Steering Column:
