Electrical Diagrams

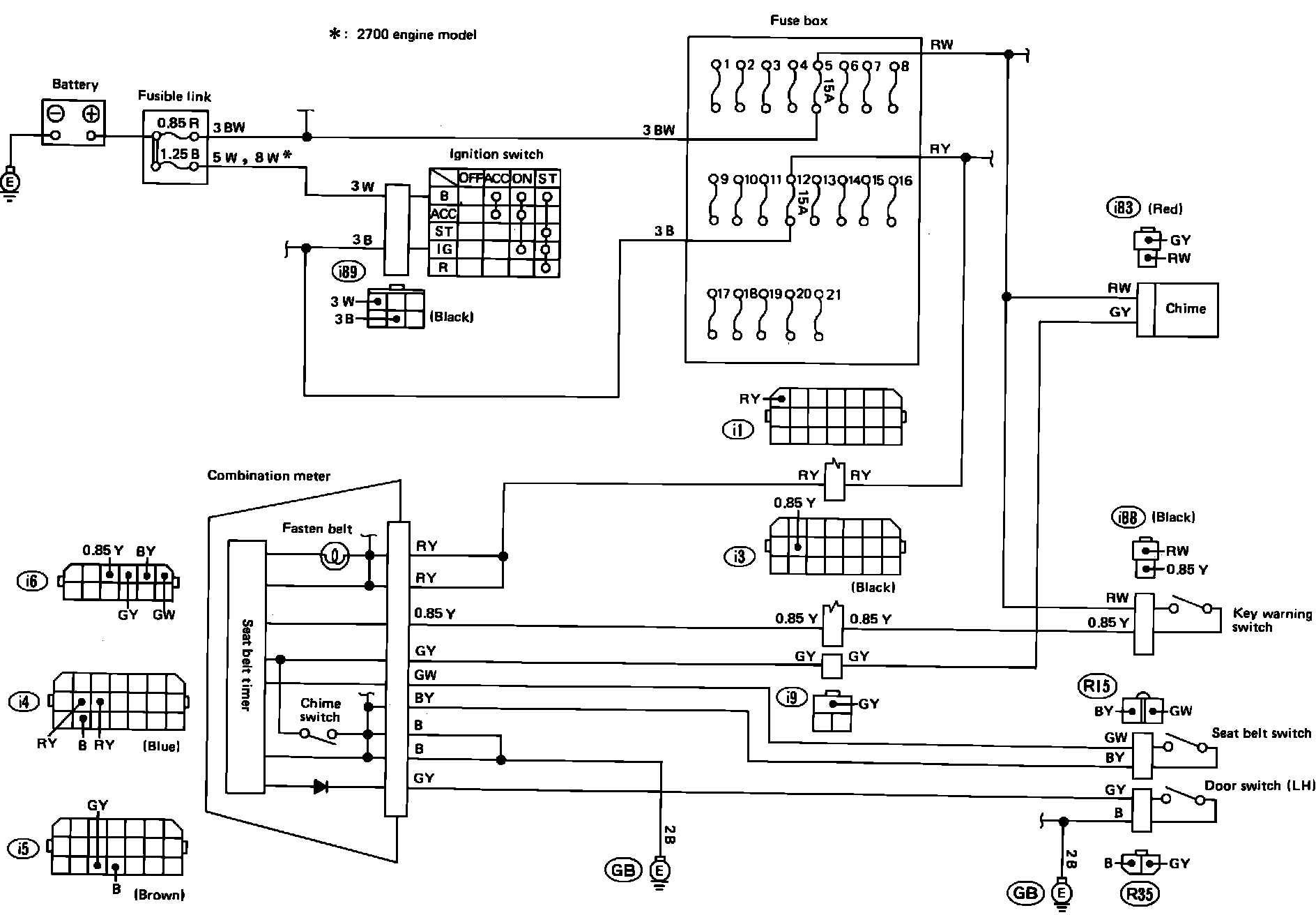

Automatic Seat Belts And Key Warning System:

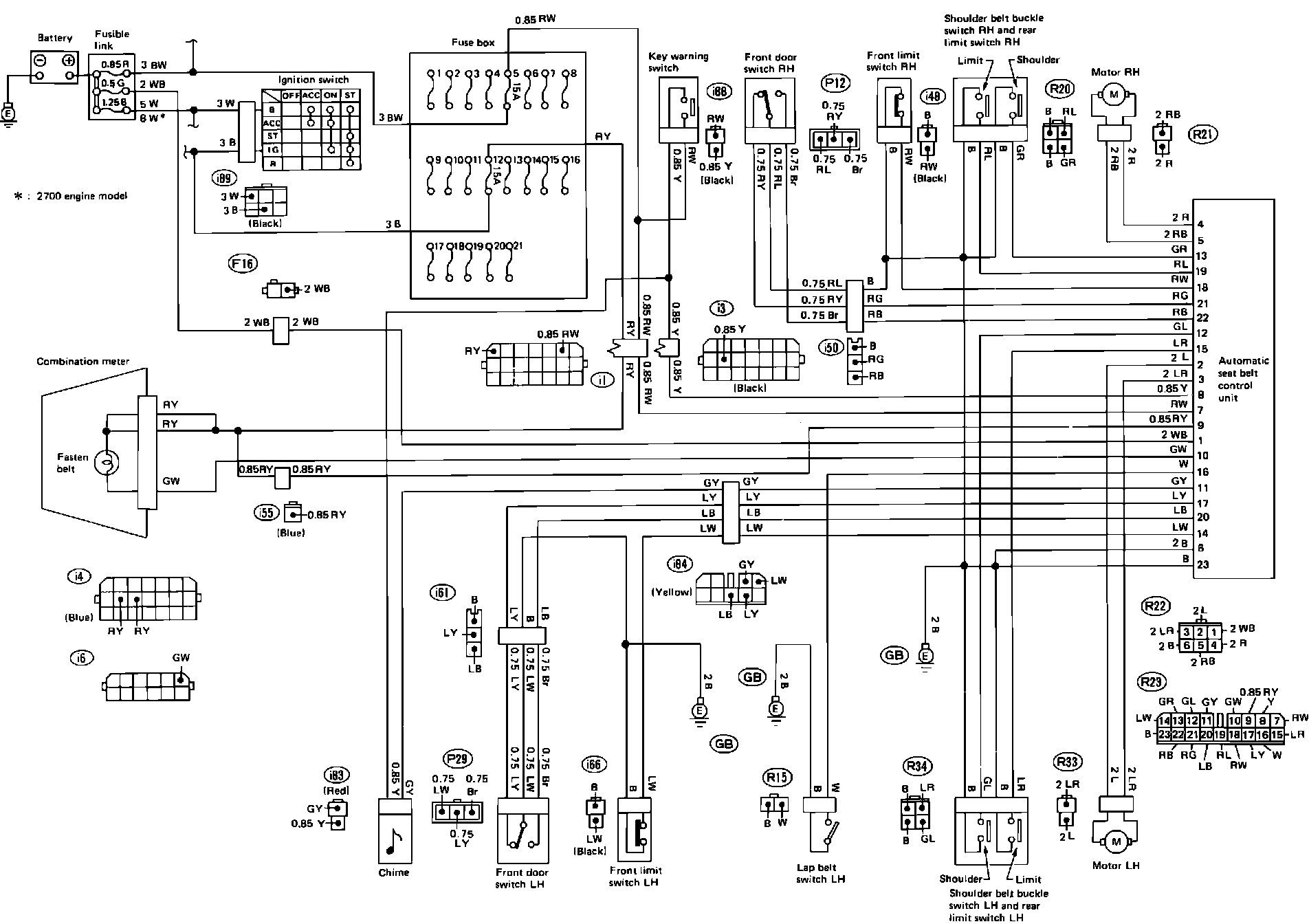

Automatic Seat Belts And Key Warning System. Canada:
