E1 - E23

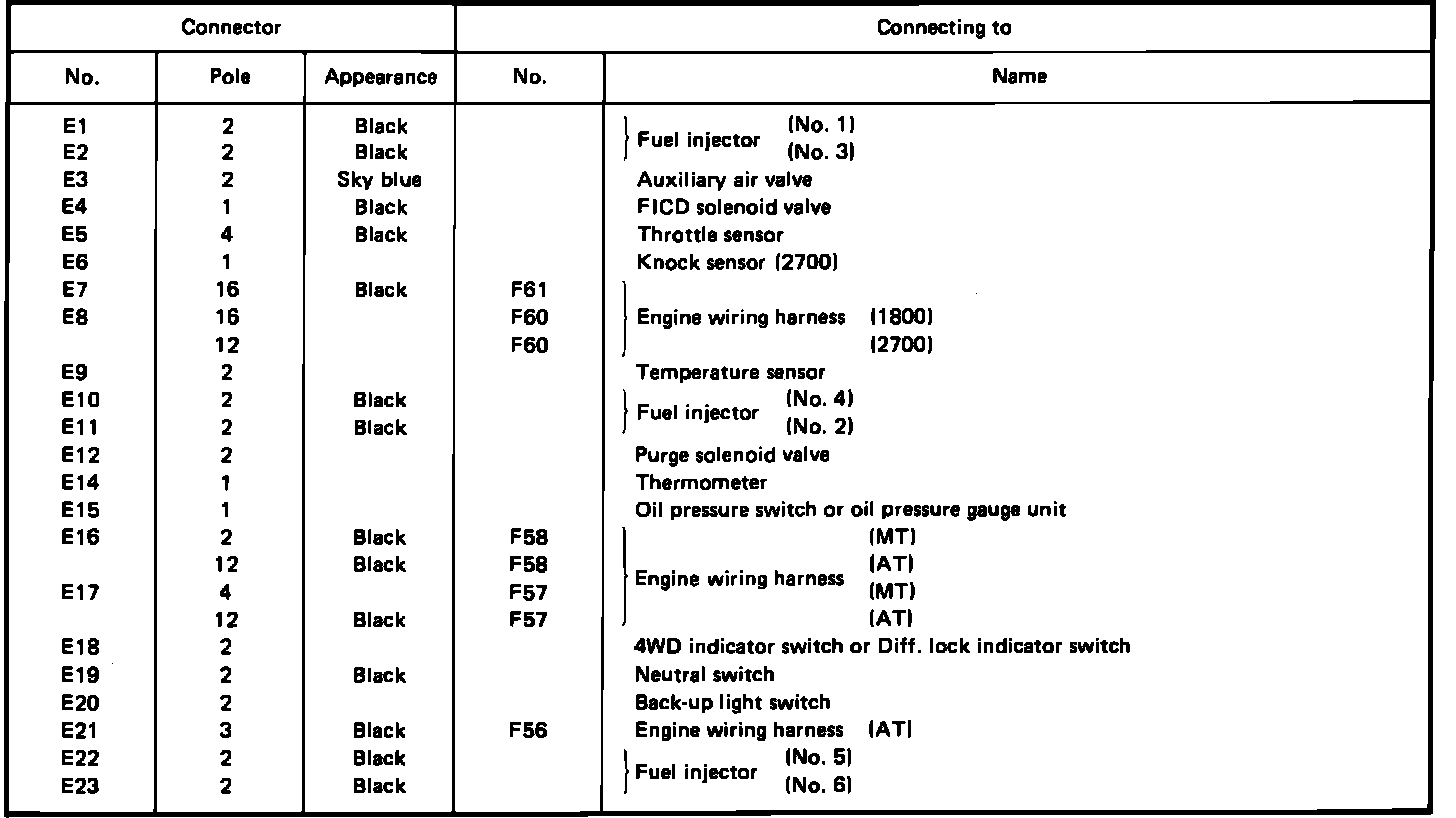

Engine Room Connector Locations:

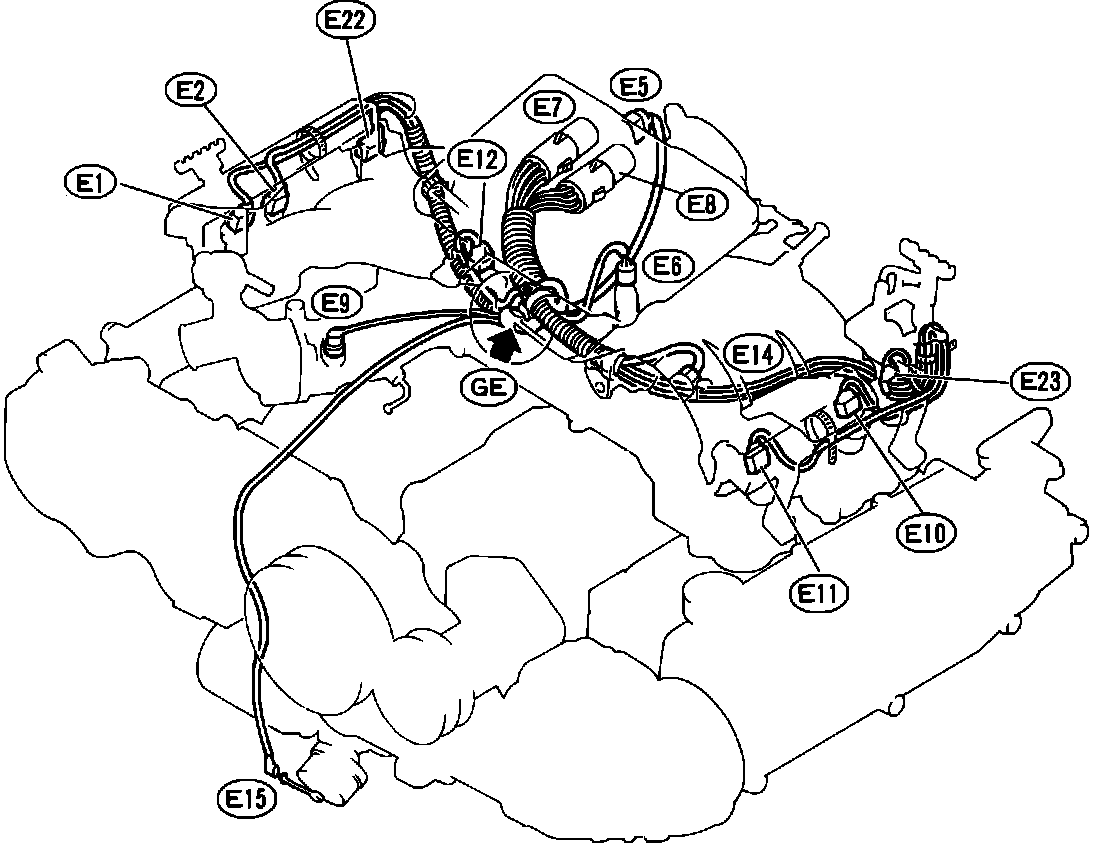

Engine Room Connector Locations:

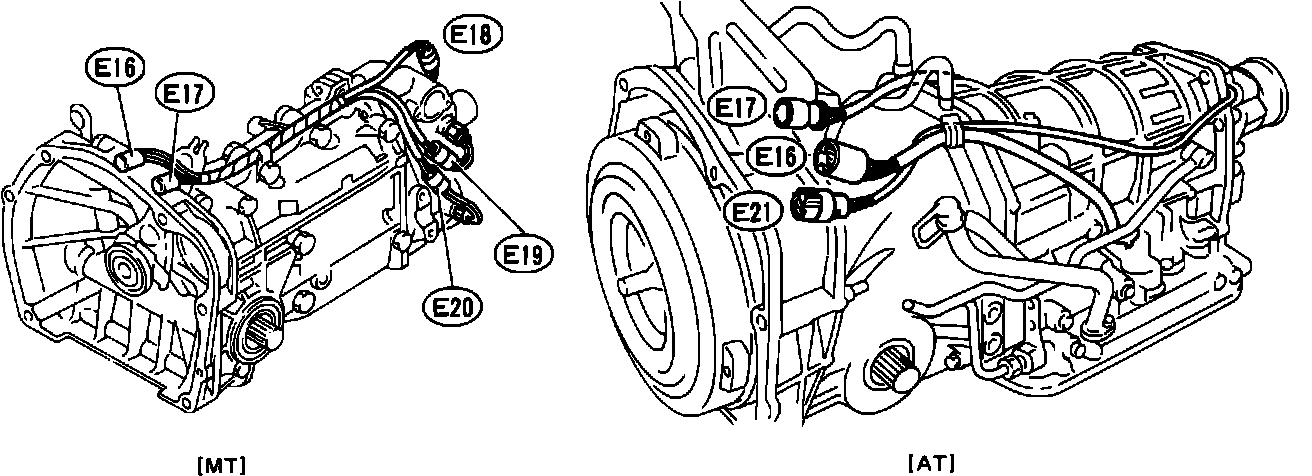

Engine Room Connector Locations:
