Legacy Wagon 2WD F4-2.2L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
I4 - I100
I4 - I100

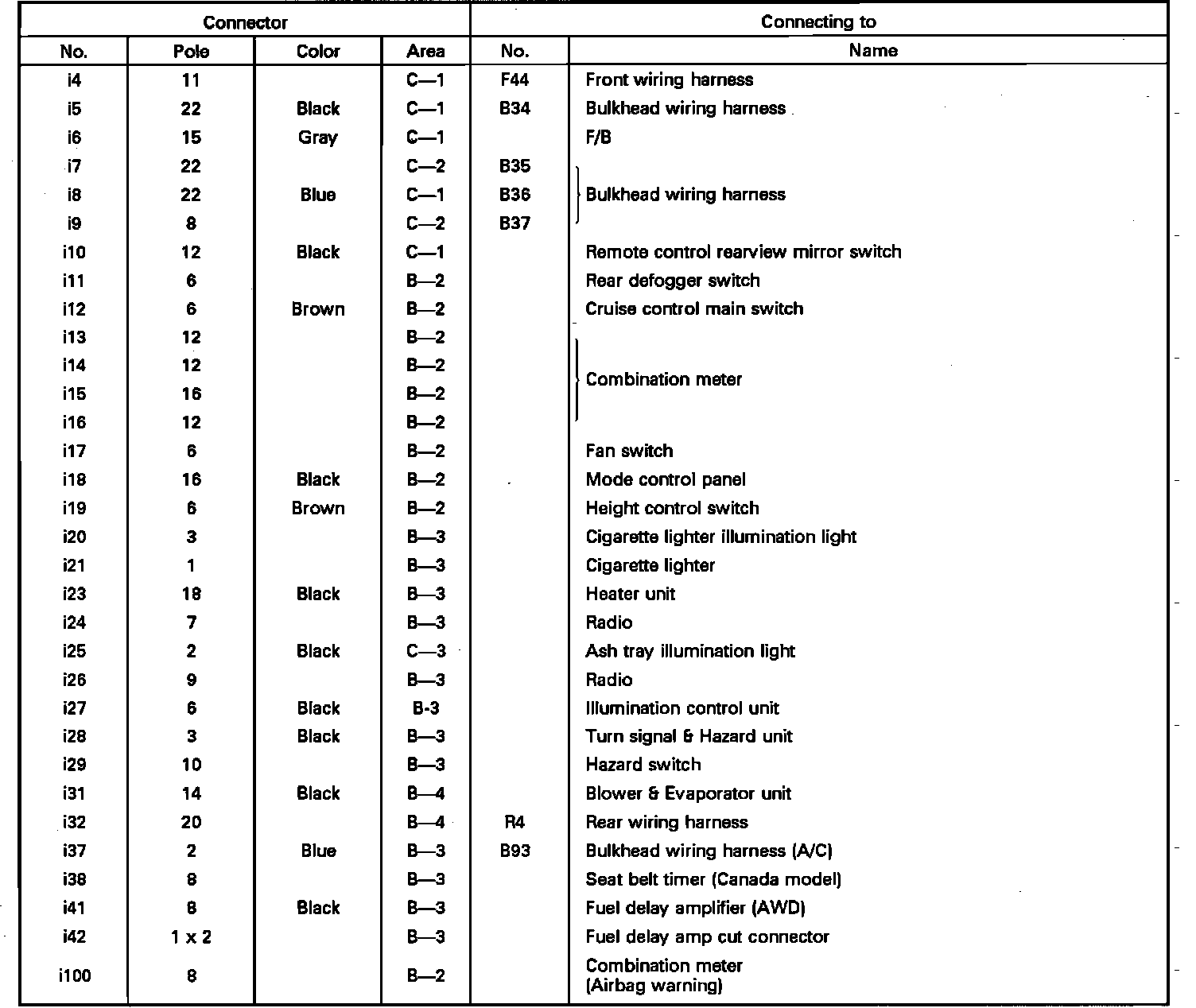

Instrument Panel Wiring Harness And Ground Points (Legend):

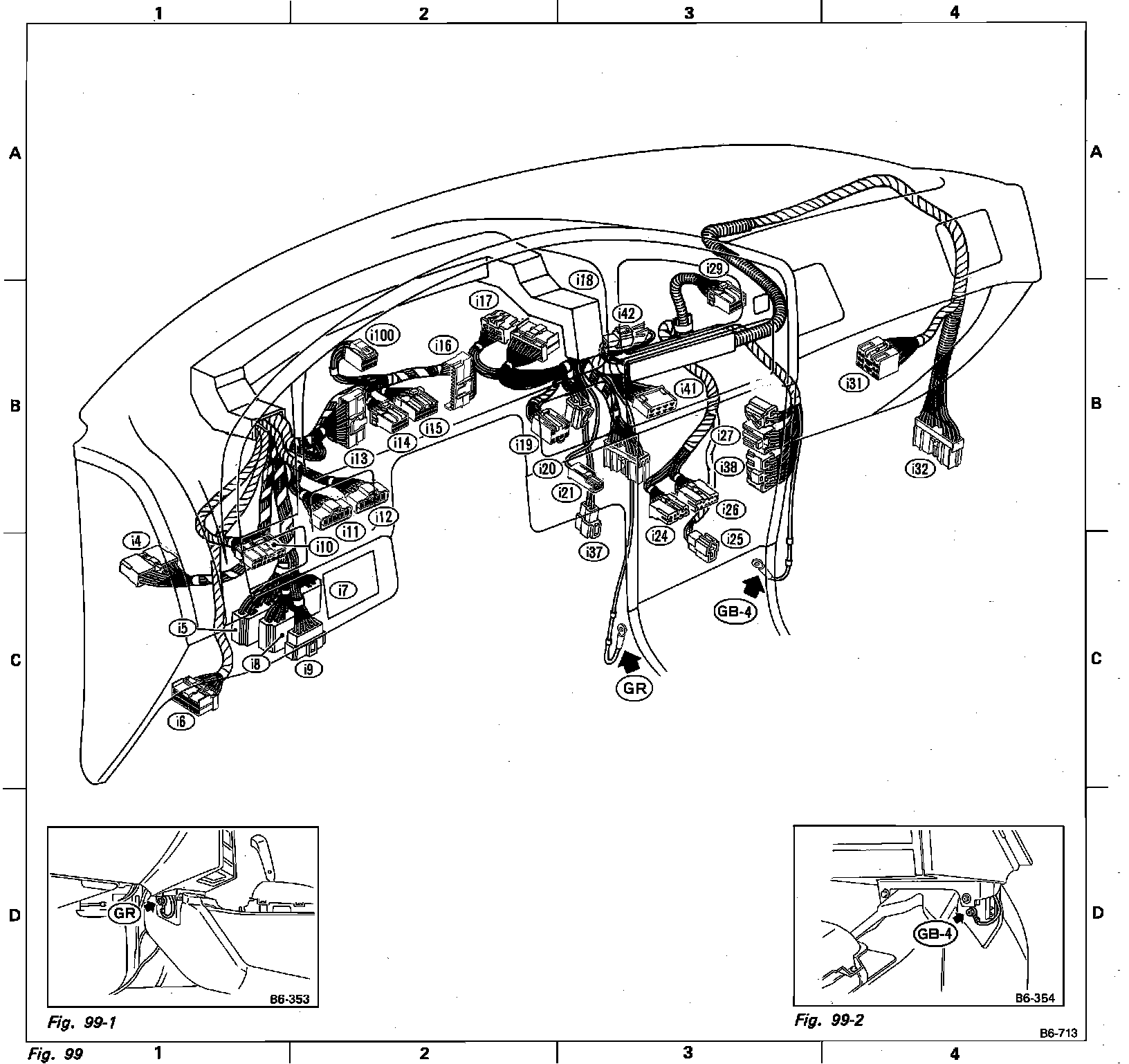

Instrument Panel Wiring Harness And Ground Points (View):
