Water Pump - Seal Installation Manual Update
NUMBER: 02-86-9DATE: 10-13-91
APPLICABILITY
ALL JUSTY MODELS 1.2 LITER ENGINE
SUBJECT:
WATER PUMP ASSEMBLY
A. Use this information to update all Justy Service Manuals Section 2-5 "Service Procedure for Water Pump".
When installing a new mechanical seal to the water pump housing, coat the outer periphery of the mechanical seal using Three Bond 1303 or *"Loctite" Brand # 271 or # 272, which is a red colored thread locking anerobic type thread sealant. Both "Loctite" # 271 or # 272 are available at most major automotive parts stores.
* Loctite is a subsidiary of the Permatex Corporation.

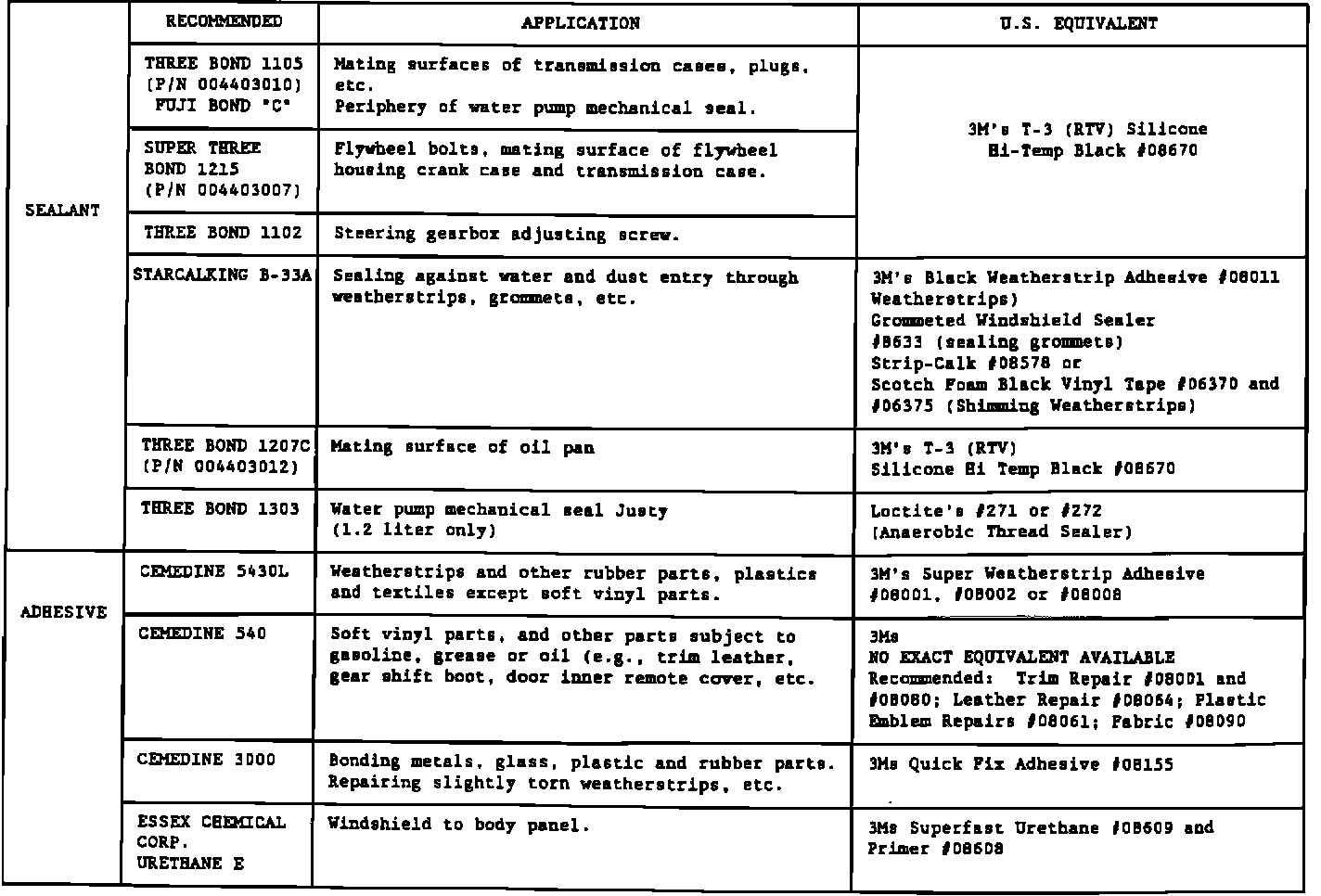

B. Use the chart as an addendum to Service Bulletin 01-106-88 Dated 02-01-88. Also, update all Justy Service Manuals Section 1-3 chart for "Sealants and Adhesives".
