Turbocharger: Service and Repair

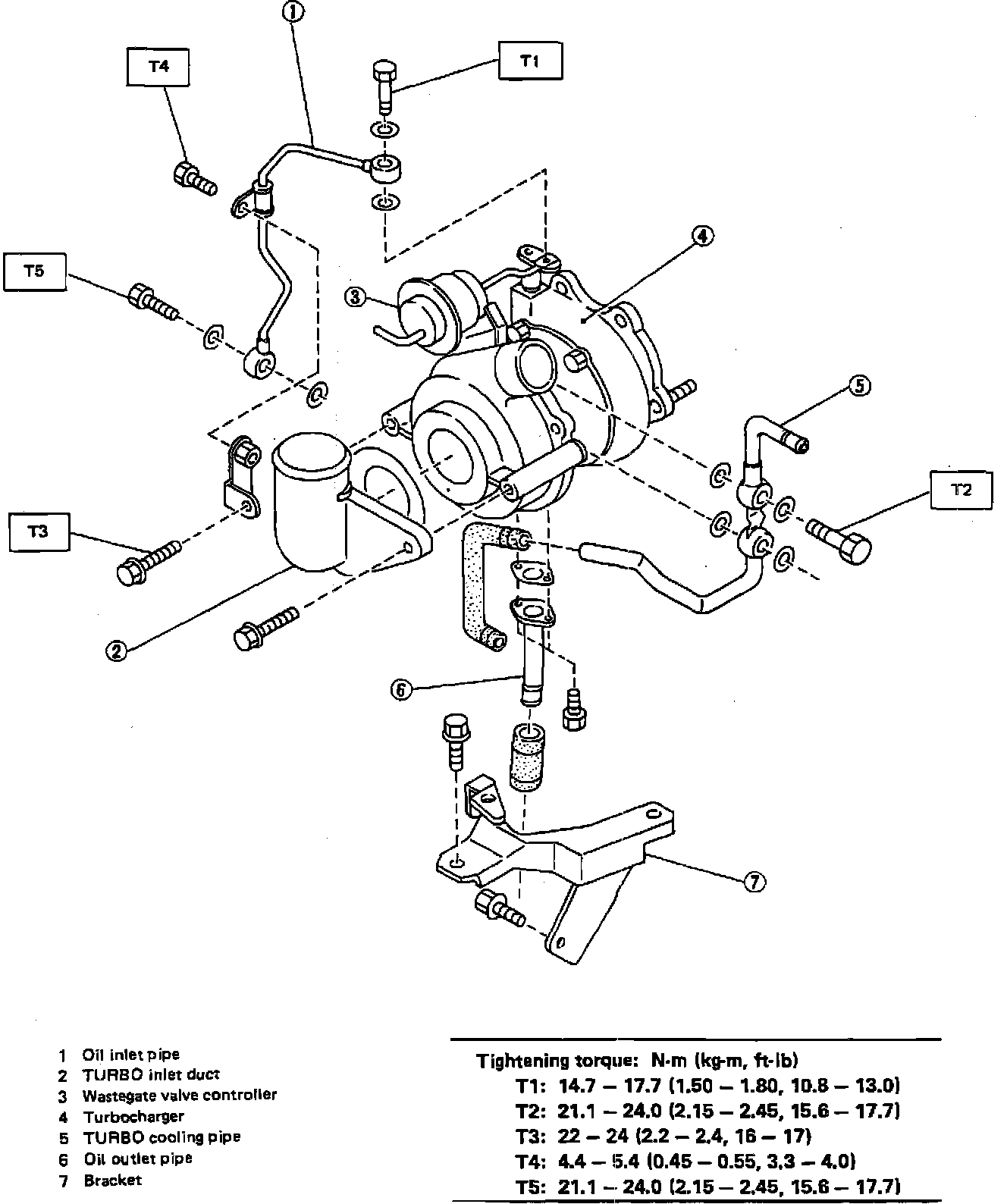

Turbocharger:

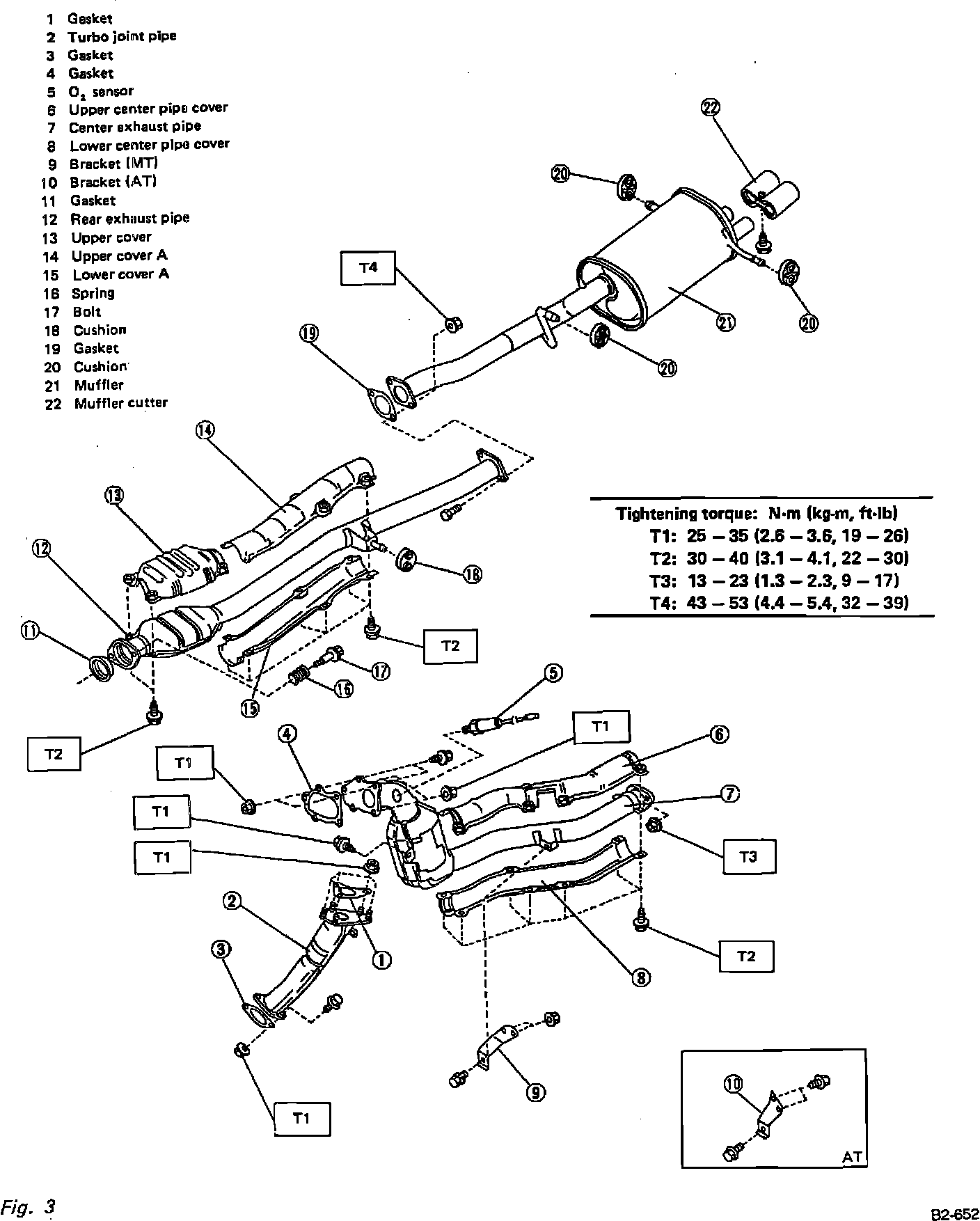

Catalytic Converter Configuration:





Refer to illustrations for turbocharger replacement.
