Cooling Fan Control





5. FAN CONTROL

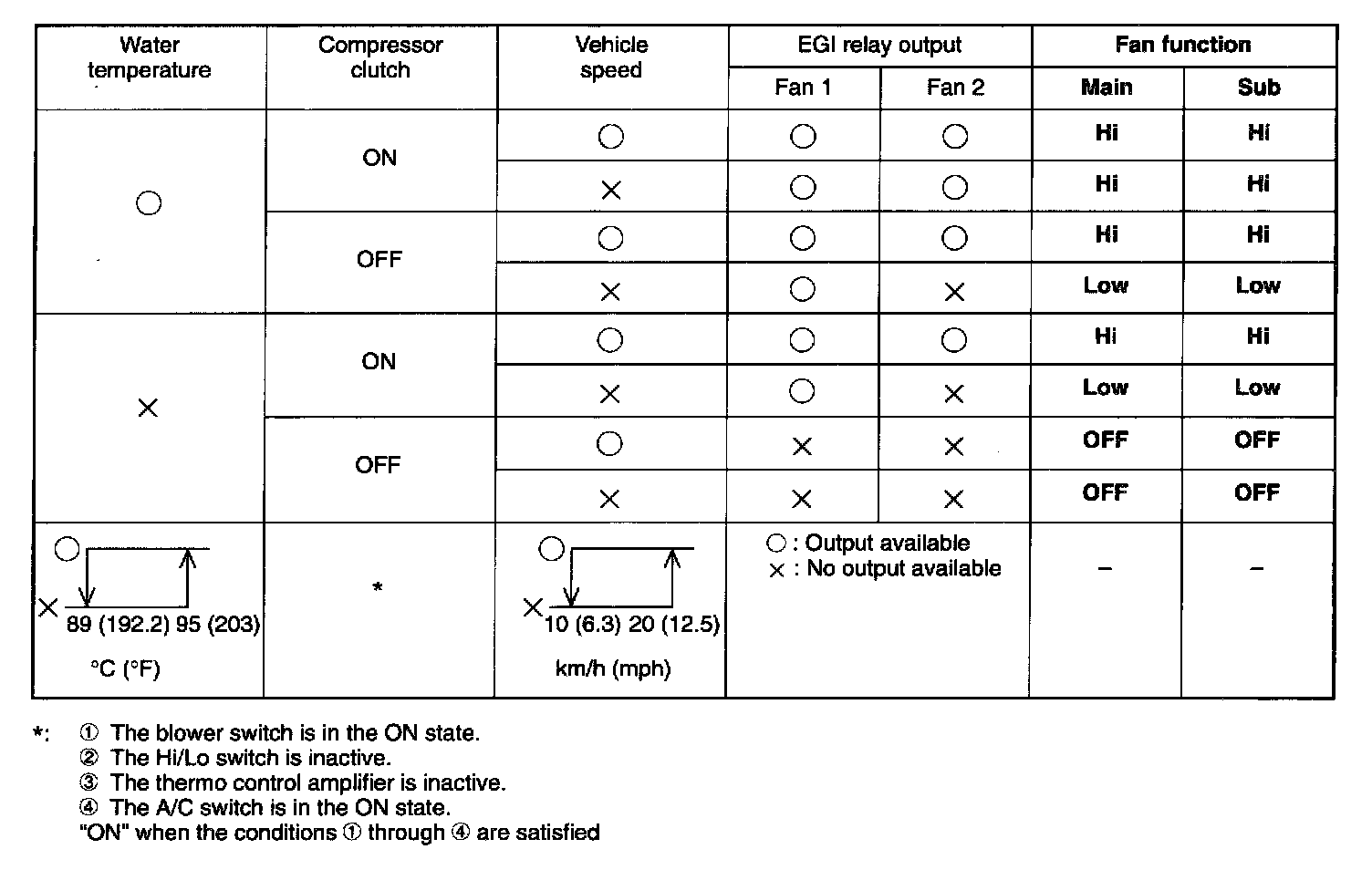

The main fan and sub fan are switched between two stages, Hi and Low, according to the operating modes shown in the following table.
