Fuel Gauge: Testing and Inspection

1. While moving float, determine Full point and Empty point.

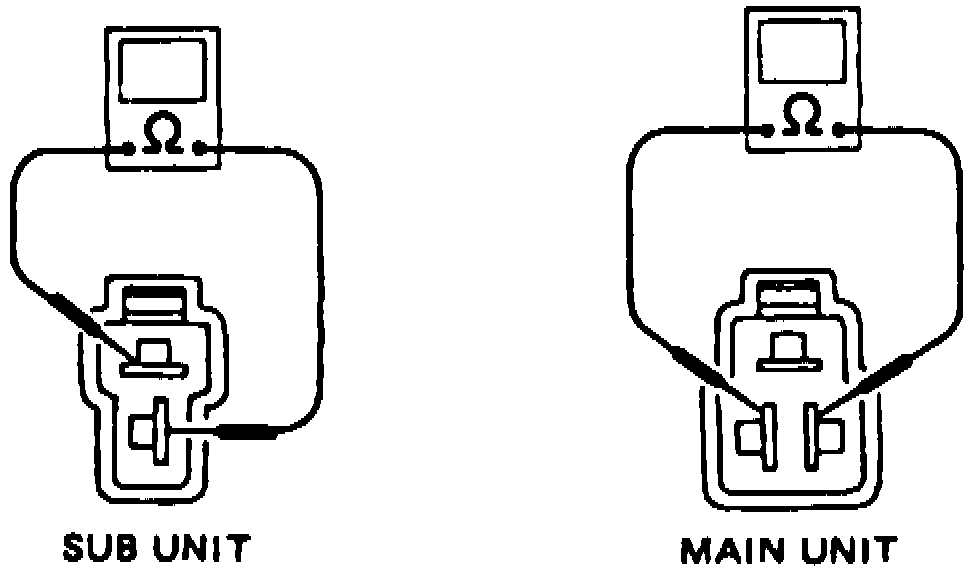

Fig. 5 Fuel Gauge Connector Terminal Identification:

2. Measure resistance between terminals shown in Fig. 5, when float is at Full and Empty points.
a. Resistance on either unit should be 1-3 ohms at Full point.
b. On main unit, resistance should be 54.1-56.1 at Empty point.
c. On sub unit, resistance should be 50.9-52.9 at Empty point.
3. Ensure resistance gradually changes when float is slowly moved from Full to Empty.
