Home >> Subaru >> 1997 >> Legacy Postal RHD Wagon AWD F4-2.2L SOHC >> Repair and Diagnosis >> Brakes and Traction Control >> Brake Pedal Assy >> Testing and Inspection

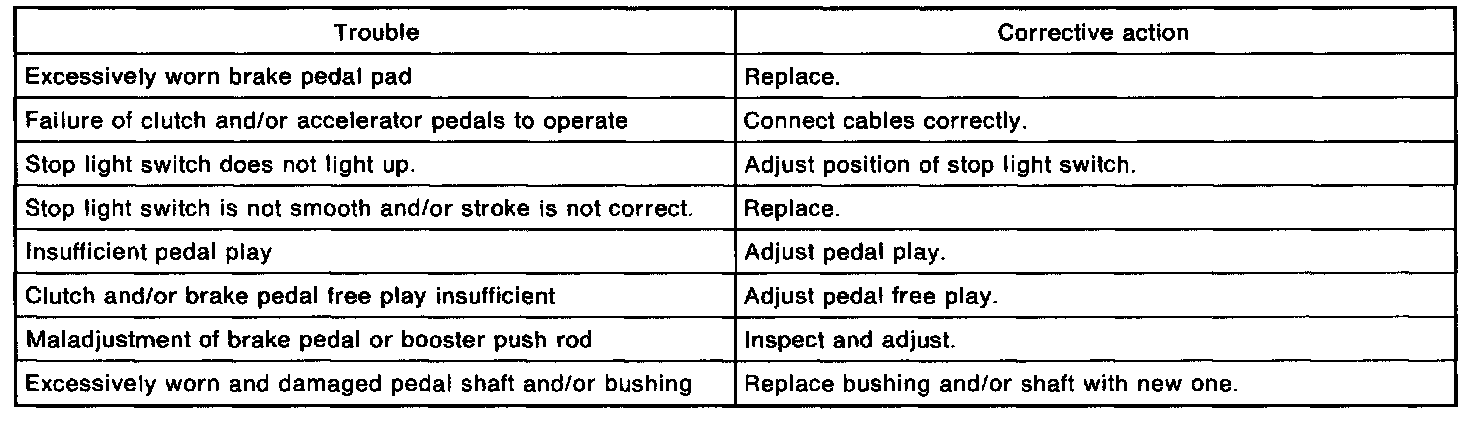

Brake Pedal Assy: Testing and Inspection

Pedal System And Control Cables:
